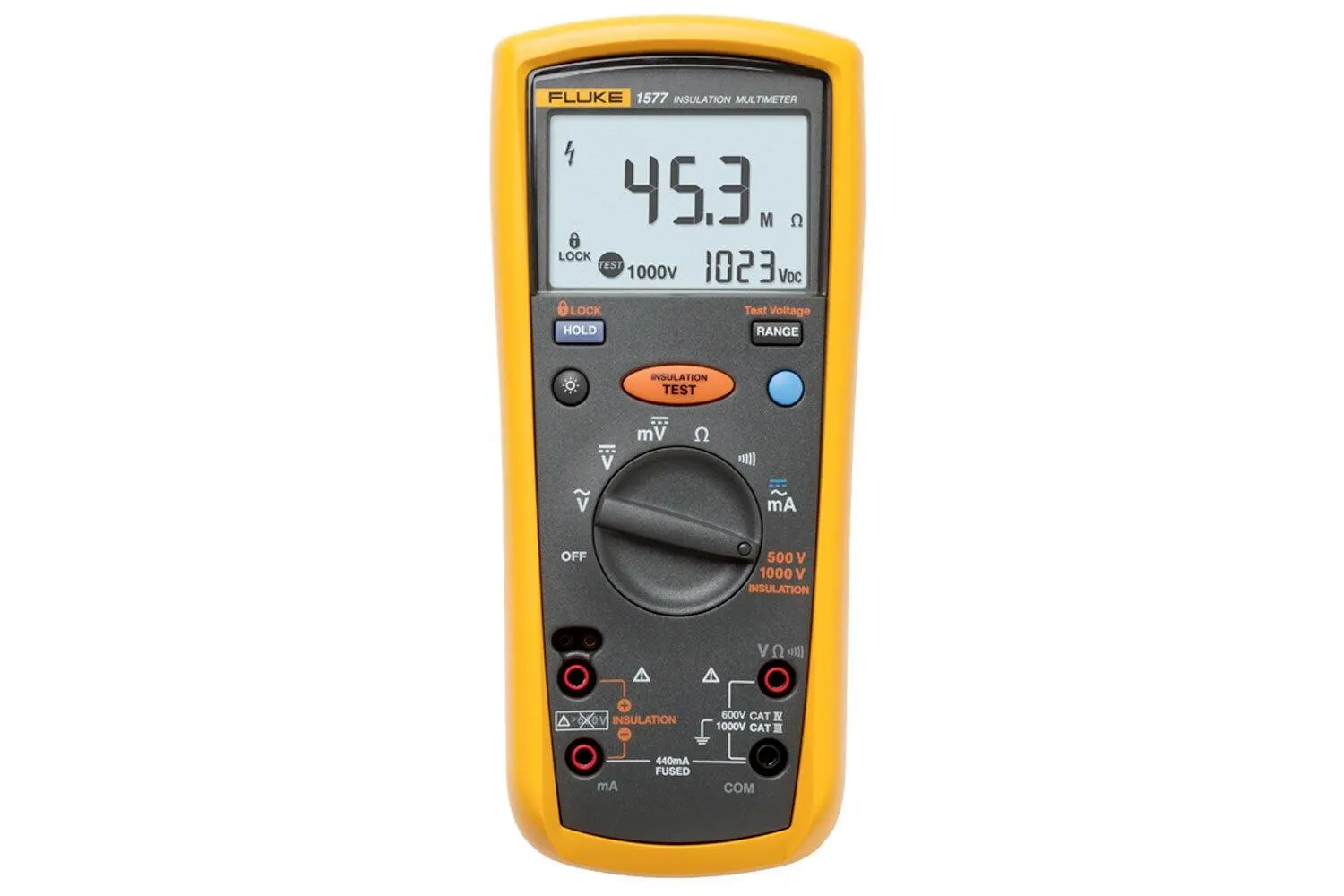

Fluke 1577 Insulation Multimeter
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 1577 Insulation Tester Multimeter combines an insulation resistance tester with a 1000V true RMS digital multimeter in one compact, handheld tool.
Technical Specifications
- Manufacturer part number (MPN)
- 2157280 Brand: Fluke Category: Tools Voltage DC Maximum voltage: 1000 V Voltage DC Accuracy: ±(0.2%+2) Voltage DC Maximum resolution: 0.001 V Voltage AC Maximum voltage: 1000 V Voltage AC Accuracy: ±(2%+3) Voltage AC Maximum resolution: 0.1 mV Current DC Maximum amps: 400 mA Current DC Amps accuracy: ±(1.0%+2) Current DC Maximum resolution: 0.01 mA Current AC Maximum amps: 400 mA Current AC Amps accuracy: ±(2.0%+2)* Current AC Maximum resolution: 0.01 mA Resistance Maximum resistance: 50 MΩ Resistance Accuracy: ±(1.2%+2) Resistance maximum resolution: 0.1Ω minimum test current @ 1kΩ/V: 1 mA Test voltages: 500, 1000 V Maximum resistance per test voltage 1000 V: 600 MΩ Maximum resolution per test voltage 50 V: 0.01 MΩ Maximum resolution per test voltage 100 V: 0.01 MΩ Maximum resolution per test voltage 250 V: 0.1 MΩ Maximum resolution per test voltage 500 V: 0.1 MΩ Maximum resolution per test voltage 1000 V: 0.1 MΩ Accuracy per test voltage 50 V: ±(3% + 5) Accuracy per test voltage 100 V: ±(3% + 5) Accuracy per test voltage 250 V: ±(1.5% + 5) Accuracy per test voltage 500 V: ±(2.0% + 5) Accuracy per test voltage 1000 V: ±(2.0% + 5) Operating temperature: –20°C to +55°C Storage temperature: -40°C to +60°C Humidity (without condensation): 0% - 95% (10°C – 30°C) 0% - 75% (30°C – 40°C) 0% - 40% (40°C – 55°C) Operating altitude: 2000 m General: IEC 61010-1: Pollution Degree 2 Measurement: IEC 61010-2-033: CAT IV 600V / CAT III 1000V Size: 203 x 100 x 50 mm (with holster) Weight: 624 g Warranty: 3 years Battery life alkaline Meter use: 1000 hours Battery life alkaline Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off. IP rating: IP40
Standards & Compliance
- HS Code
- 9030.33
Cross References
- OEM-URL https://www.fluke.com/en-us/product/electrical-testing/insulation-testers/fluke-1577
Product Documentation
More from Fluke
Fluke
Fluke 1550C FC 5 kV Insulation Tester Kit
3665127
Fluke
Fluke 1587 FC Advanced Electrical Troubleshooting Kit
4692778
Fluke
Fluke 1507 Insulation Resistance Tester
5066006
Fluke
Fluke 719 Pressure Calibrator
3315332
Fluke
Fluke T3000 FC Wireless Temperature Module
4401563
Fluke
Fluke 120B Series Industrial ScopeMeter® handheld Oscilloscopes
4755829
Fluke
Fluke 721EX Precision Pressure Calibrator
4353420
Fluke

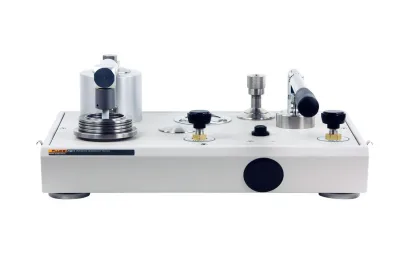

Fluke Calibration P3000 Pneumatic Deadweight Testers
