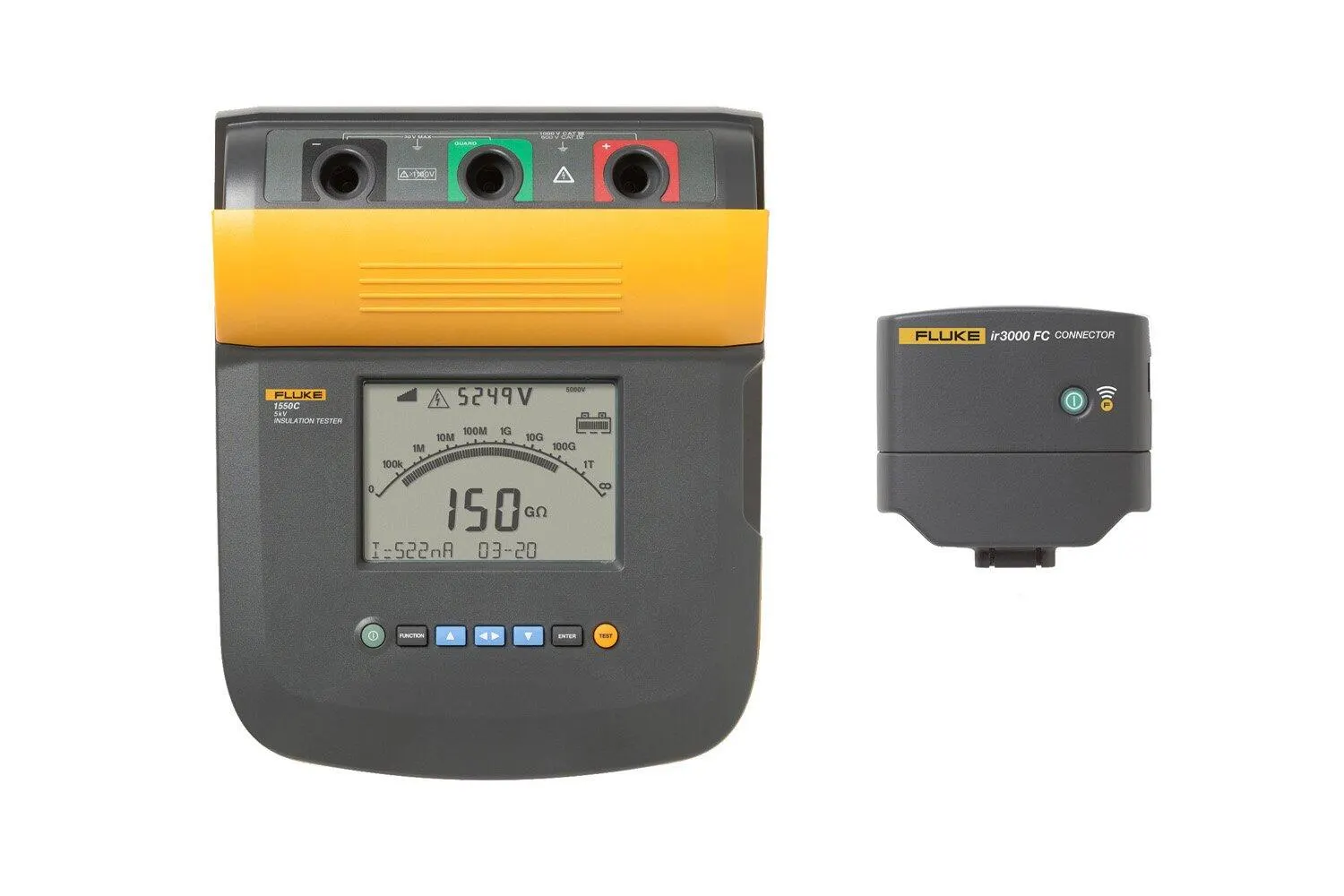

Fluke 1550C FC 5 kV Insulation Tester Kit

The Fluke 1550C insulation resistance test kit lets you evaluate the trends and eliminate the doubt.

Manufacturer part number (MPN)

3665127

Brand

Fluke

Category

Tools

250 V Range

50 GΩ

250 V Accuracy (± reading)

Unspecified 5% 20% Unspecified

500 V Range

100 GΩ

500 V Accuracy (± reading)

Unspecified 5% 20% Unspecified

1000 V Range

200 GΩ

1000 V Accuracy (± reading)

Unspecified 5% 20% Unspecified

2500 V Range

500 GΩ

2500 V Accuracy (± reading)

Unspecified 5% 20% Unspecified

5000 V Range

1 TΩ

5000 V Accuracy (± reading)

Unspecified 5% 20% Unspecified

Bar graph range

0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555)

Insulation test voltage accuracy

-0%, +10% at 1 mA load current

Induced AC mains current rejection

2 mA maximum

Charging rate for capacitive load

5 seconds per μF

Discharge rate for capacitive load

1.5 s/μF

Leakage current measurement Range

1 nA to 2 mA

Leakage current measurement Accuracy

±(20% + 2 nA)

Capacitance measurement Range

0.01 μF to 15.00 μF

Capacitance measurement Accuracy

±(15% rdg + 0.03 μF)

Timer Range

0 to 99 minutes

Timer Resolution setting

1 minute

Timer Resolution indication

1 second

Live circuit warning Warning range

30 V to 660 V AC/DC, 50/60 Hz

Live circuit warning Voltage accuracy

±(15% + 2 V)

Software specifications

FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8.

Display

75 x 105 mm

Power

12 V lead-acid rechargeable battery, Yuasa NP2.8-12

Charger Input (AC)

85 V to 250 V AC 50/60 Hz 20 VA

Dimensions

269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)

Weight

3.7 kg (8.2 lb)

Temperature (operating)

-20°C to 50°C (-4°F to 122°F)

Temperature (storage)

-20°C to 65°C (-4°F to 149°F)

Humidity

80% to 31°C decreasing linearly to 50% at 50°C

Altitude

2000 m

Enclosure sealing

IP40

Input overload protection

1000 V AC

Electromagnetic compatibility

EN 61326

Safety compliance

IEC 61010-1: Overvoltage category II, Pollution Degree 2. IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III IEC 61557-1, IEC 61557-2

HS Code

9030.33
