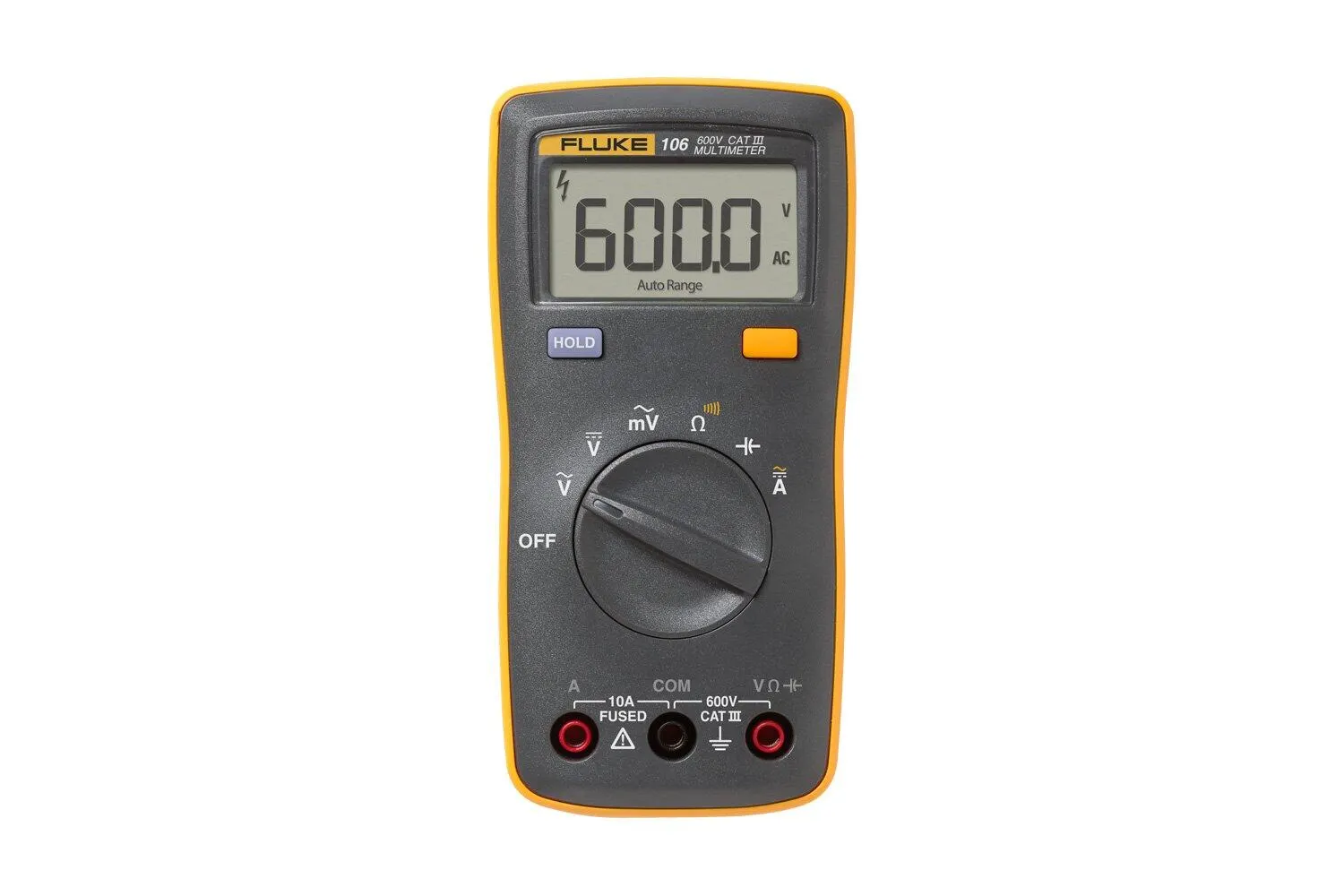

Fluke 106 Palm-sized digital Multimeter

The Fluke 106 palm-sized digital multimeter puts professional measurements in the palm of your hand.

Manufacturer part number (MPN)

6118365 Brand: Fluke Category: Tools Function Range: Resolution AC Volts (40 Hz to 500Hz)1 6.000 V 60.00 V 600.0 V: 0.001 V 0.01 V 0.1 V DC Volts 6.000 V 60.00 V 600.0 V: 0.001 V 0.01 V 0.1 V AC Millivolts 600.0 mV: 0.1 mV 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ: 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ 50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF: 0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF AC Current (40 Hz to 200 Hz) 4.000 A 10.00 A: 0.001 A 0.01 A DC Current 4.000 A 10.00 A: 0.001 A 0.01 A Function Overload Protection: Input Impedance (Nominal) AC Volts 600 V 1: >10 MΩ 2 \AC Millivolts 600 mV: >1M <100 pF DC Volts 600 V 1: >10 MΩ <100 pF Maximum Voltage Between any Terminal and Earth Ground: 600 V Display (LCD): 6000 counts, updates 3/sec Battery Type: 2 AAA, NEDA 24A, IEC LR03 Battery Life: 200 hours minimum Operating: 0 °C to 40 °C Storage: -30 °C to 60 °C Operating Humidity: Non-condensing when <10°C ≤90 % at 10 °C to 30 °C; ≤75 % at 30 °C to 40 °C Operating Humidity, 40 MΩ Range: ≤80 % at 10 °C to 30 °C; ≤70 % at 30 °C to 40 °C Temperature Coefficient: 0.1 X (specified accuracy) /°C (28 °C) Fuse Protection for Current Inputs: 11A, 1000V Fast Fuse, Fluke specified part only Size (HxWxL): 142 mm x 69 mm x 28mm Weight: 200 g IP Rating: IEC 60529: IP 40 Safety: IEC 61010-1: 600 V CAT III, Pollution Degree 2 Electromagnetic Environment: IEC 61326-1: Portable Electromagnetic Compatibility: Applies to use the Korea only. Class A Equipment (Industrial Broadcasting and Communication Equipment)1

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/fluke-106
