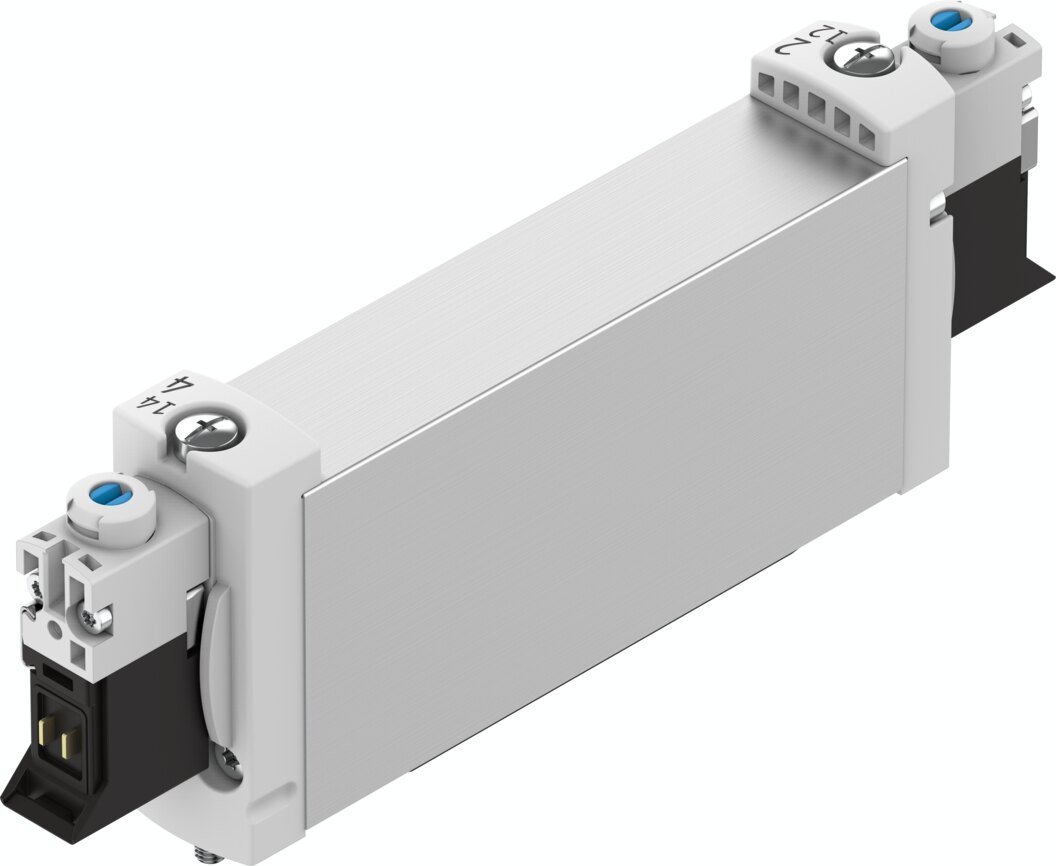

Festo VUVG-B18 Solenoid Valve - El, Spring, VUVG-B18-T32C-MZT-F-1P3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-B18 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation VUVG-B18-T32C-MZT-F-1P3. Supplied under manufacturer part number 574446, EAN 4052568223304, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 2x3/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- Flange
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- RCM; c UL us - Recognised (Oil)
- CE mark (see declaration of conformity)
- To EU EMC Directive; To EU Low Voltage Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions; To UK regulations for electrical equipment
- Degree of protection
- IP40; IP65; With plug socket
- Nominal size
- 5.7 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting; Concealed
- Type of piloting
- Piloted
- Pilot air supply
- External
- Symbol
- 00992945
- lap
- Overlap
- Pilot pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Switching time off
- 22 ms
- Switching time on
- 15 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 1.0 W; 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Restrictions for environmental and media temperature
- -5 - 50 °C; Without holding current reduction
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 164 g
- Electrical connection
- Via electrical sub-base
- Type of mounting
- On manifold rail
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- EAN / GTIN
- 4052568223304
- Festo type code
- VUVG-B18-T32C-MZT-F-1P3
- Festo order number
- 574446
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 3.5708 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 574446
