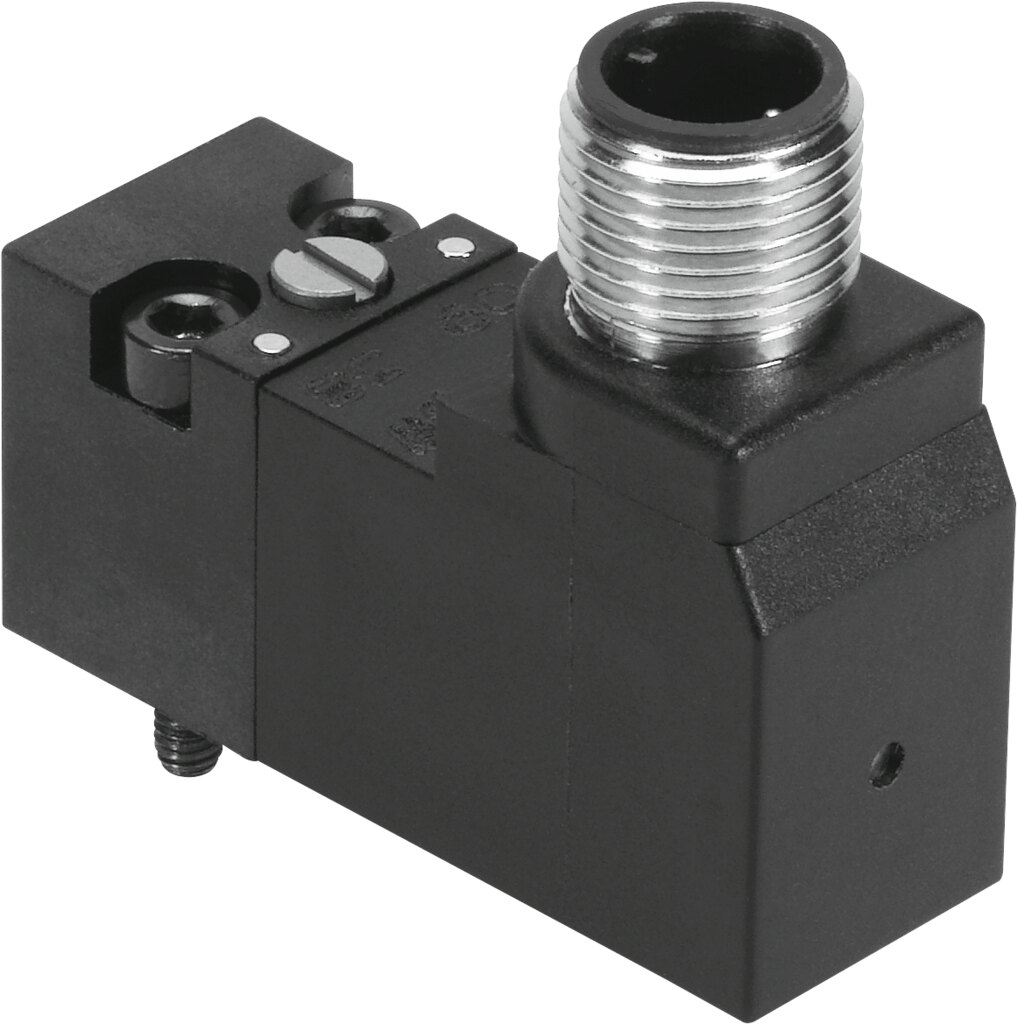

Festo VSCS-B Solenoid Valve closed monostable 3/2 - El, Mechanical spring, VSCS-B-M32-MH-WA-1R3-8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VSCS-B Solenoid Valve closed monostable 3/2. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Mechanical spring, supplier type designation VSCS-B-M32-MH-WA-1R3-8. Supplied under manufacturer part number 8040569, EAN 4052568434588, HS code 8481.20, country of origin Italy.
Technical Specifications
- Valve function
- 3/2-way, single solenoid, closed Type of actuation: Electrical Construction width: 15 mm Standard nominal flow rate (standardised to DIN 1343): 13.5 l/min pneumatic working port: Sub-base size 15 mm to ISO 15218 Operating voltage: 24 V DC Operating pressure: 0.15 ... 0.8 MPa (1.5 ... 8 bar) (21.75 ... 116 psi) Type of reset: Mechanical spring Degree of protection: IP65 Sealing principle: Soft Mounting position: Any Conforms to standard: ISO 15218 Manual override: Non-detenting Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991308 lap: Underlap Note on forced dynamization: Switching frequency min. 1/week Switching time off: 6 ms Switching time on: 8 ms Duty cycle: 100% Characteristic coil data: 24 V DC: 1.3 W Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 LABS (PWIS) conformity: VDMA24364-C1-L Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Electrical connection: M12x1; according to IEC 61076-2-101 Pneumatic connection, port 1: Sub-base Pneumatic connection, port 2: Sub-base Pneumatic connection, port 3: Sub-base material seals: NBR EAN / GTIN: 4052568434588 Festo type code: VSCS-B-M32-MH-WA-1R3-8 Festo order number: 8040569 Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 0.6811 kg CO2e per pcs Country of origin: Italy Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 8040569
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568434588
- MPN 8040569
Product Documentation
More from Festo
Festo
Festo FRC Service Unit Maxi automatic - 1", 0,5 - 12bar, 5MY, FRC-1-D-5M-MAXI-A
162785
Festo
Festo J Pneumatic valve - G1/8", Air, Air, J-5-1/8-B-EX
536043
Festo
Festo PUN-H Compressed Air Hose polyurethane natural - 10mm, 7mm, 300M, PUN-H-10X1,5-NT-300
558267
Festo
Festo AEVU Compact cylinder - 16mm, M5, 20mm, AEVU-16-20-A-P-A
156984
Festo
Festo VUVG-L18 Solenoid Valve tryksat midterstilling 5/3 - G1/4", El, Mechanical spring, VUVG-L18-P53U-G14-P1
8033558
Festo
Festo KD3 Junction Box - KD3-1/8-A
4052568000097
Festo
Festo NPFC-D Double Nipple brass, nickel-plated BSPP - 3/8", 1/2", NPFC-D-G38-G12-M
4052568063788
Festo
Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-M32C-E-G14
575484
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8040569?
- 8040569 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 8040569.
- What is the HS code for 8040569?
- The customs tariff (HS) code for 8040569 is 8481.20.
- Who manufactures 8040569?
- 8040569 is a Festo product in the Pneumatics range.
- Is a datasheet available for 8040569?
- Yes — the 8040569 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8040569?
- The minimum order quantity is 1.
- Is 8040569 available?
- Yes — 8040569 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
