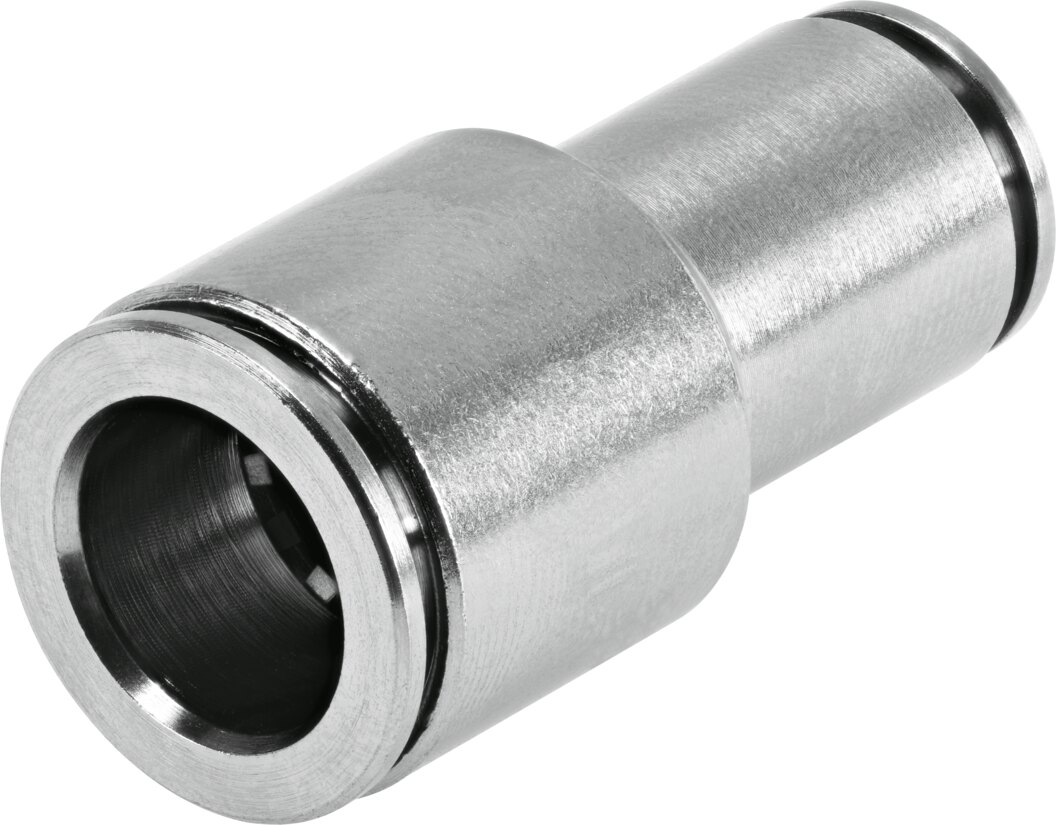

Festo NPQH-D Connector nickel-plated brass - 12mm, 8mm, NPQH-D-Q12-Q8-P10
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-D Connector nickel-plated brass. Collectors Push-in (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 12 mm, outer hose diameter 2 8 mm, supplier type designation NPQH-D-Q12-Q8-P10. Supplied under manufacturer part number 578331, EAN 4052568060343, HS code 7412.20, country of origin Italy.
Technical Specifications
- Size
- Standard
- Nominal size
- 7 mm
- Tubing insertion depth
- 16 ... 19.5 mm
- Note on the tubing insertion depth
- Ø8 depth 16 mm; Ø12 depth 19.5 mm
- Mounting position
- Any
- Design
- Straight design (Push-pull principle)
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar) (-13.775 ... 290 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Product weight
- 32.5 g
- Pneumatic connection, port 1
- For tubing outer diameter of 12 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 8 mm
- Colour of release ring
- Silver
- Material housing
- Brass, chemically nickel-plated
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- EAN / GTIN
- 4052568060343
- Festo type code
- NPQH-D-Q12-Q8-P10
- Festo order number
- 578331
- Product type
- Collectors Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Outer hose diameter 2
- 8 mm
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.2290 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 578331
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568060343
- MPN 578331
Product Documentation
More from Festo
Festo
Festo HE-D-MIDI Inflation valve - HE-1/2-D-MIDI
162810
Festo
Festo CLR Linear Swing Clamp - 25mm, M5, CLR-25-20-R-P-A
535445
Festo
Festo ADN Compact cylinder - 80mm, G1/8, 10mm, ADN-80-10-I-PPS-A
572718
Festo
Festo DSNU Round cylinder double-acting - 32mm, G1/8", 200mm, DSNU-32-200-PPS-A
559302
Festo
Festo CPE10 Solenoid Valve - QS-6", El, Spring, CPE10-M1BH-3OL-QS-6
196853
Festo
Festo ADN Compact cylinder double-acting - 50mm, 12mm, 1/8, 40mm, ADN-50-40-A-P-A
536316
Festo
Festo ADNGF Compact cylinder - 32mm, G1/8, 60mm, ADNGF-32-60-P-A
554246
Festo
Festo AEVU Compact cylinder - 25mm, M5, 10mm, AEVU-25-10-A-P-A
156992
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 578331?
- 578331 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 578331.
- What is the HS code for 578331?
- The customs tariff (HS) code for 578331 is 7412.20.
- Who manufactures 578331?
- 578331 is a Festo product in the Pneumatics range.
- Is a datasheet available for 578331?
- Yes — the 578331 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 578331?
- The minimum order quantity is 1.
- Is 578331 available?
- Yes — 578331 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
