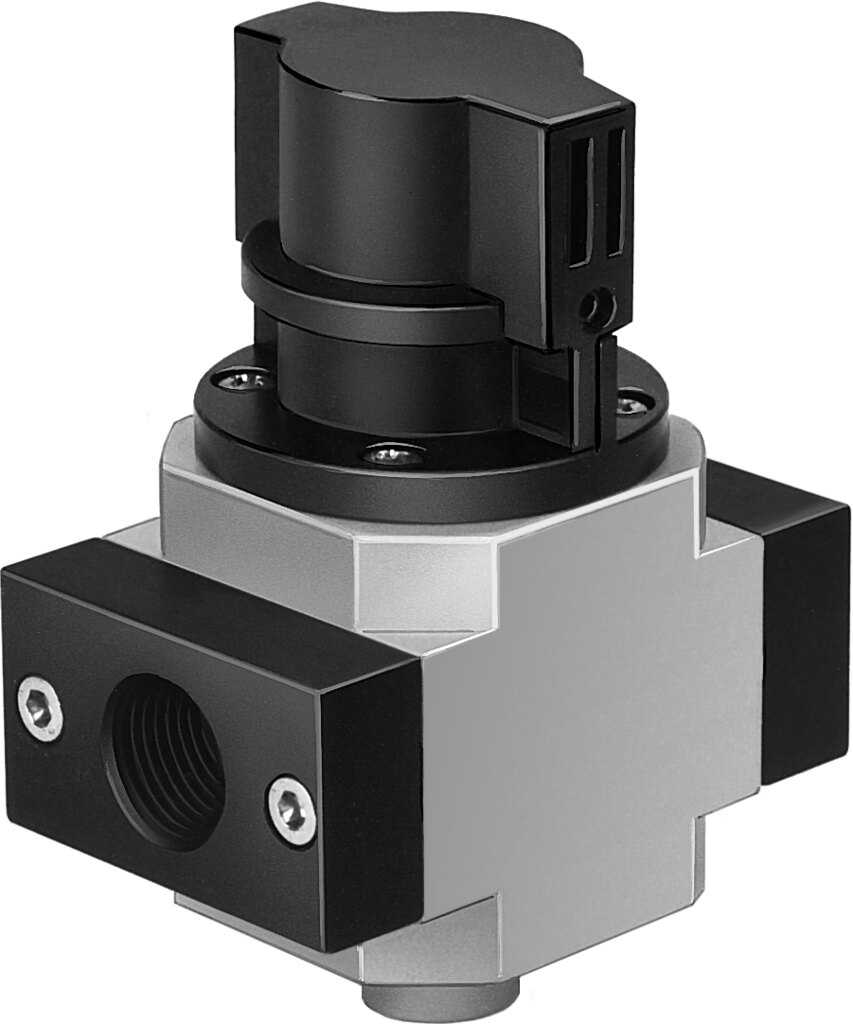

Festo HE-D-MIDI Inflation valve - HE-1/2-D-MIDI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HE-D-MIDI Inflation valve. Pneumatic Valve Manual (Technique / Pneumatics / Pneumatics - Valves). Principal data: supplier type designation HE-1/2-D-MIDI. Supplied under manufacturer part number 162810, EAN 4052568012748, HS code 8481.20, country of origin Hungary.
Technical Specifications
- Design
- Piston gate valve
- Type of actuation
- Manual
- Sealing principle
- Soft
- Exhaust-air function
- Cannot be throttled
- Symbol
- 00995571
- Valve function
- 3/2-way, double solenoid
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar)
- C value
- 17 l/sbar
- b value
- 0.3
- Standard nominal flow rate (standardised to DIN 1343)
- 3600 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Type of mounting
- Inline installation; With accessories
- Mounting position
- Any
- Flow direction
- Non-reversible
- Product weight
- 511 g
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Pneumatic connection, port 3
- G1/4
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568012748
- Festo type code
- HE-1/2-D-MIDI
- Festo order number
- 162810
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 5.7173 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 162810
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568012748
- MPN 162810
Product Documentation
More from Festo
Festo
Festo CLR Linear Swing Clamp - 25mm, M5, CLR-25-20-R-P-A
535445
Festo
Festo ADN Compact cylinder - 80mm, G1/8, 10mm, ADN-80-10-I-PPS-A
572718
Festo
Festo DSNU Round cylinder double-acting - 32mm, G1/8", 200mm, DSNU-32-200-PPS-A
559302
Festo

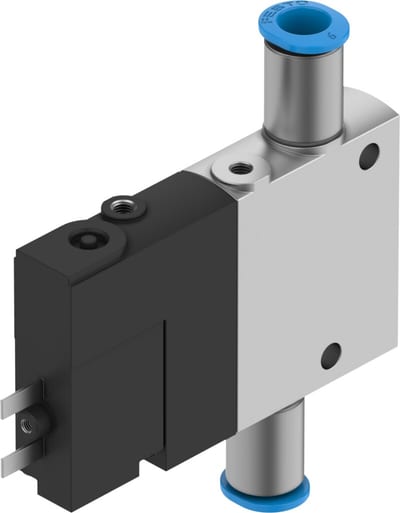

Festo CPE10 Solenoid Valve - QS-6", El, Spring, CPE10-M1BH-3OL-QS-6
196853
Festo

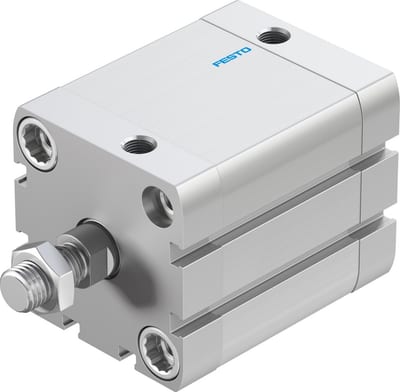

Festo ADN Compact cylinder double-acting - 50mm, 12mm, 1/8, 40mm, ADN-50-40-A-P-A
536316
Festo

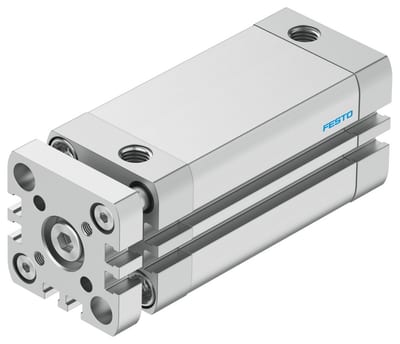

Festo ADNGF Compact cylinder - 32mm, G1/8, 60mm, ADNGF-32-60-P-A
554246
Festo

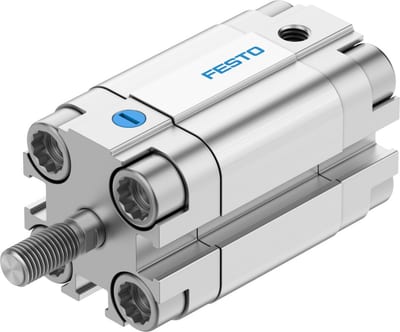

Festo AEVU Compact cylinder - 25mm, M5, 10mm, AEVU-25-10-A-P-A
156992
Festo

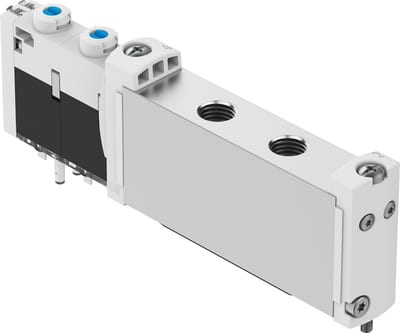

Festo VUVG-S14 Solenoid Valve - El, Spring, VUVG-S14-P53E-ZT-G18-1T1L
