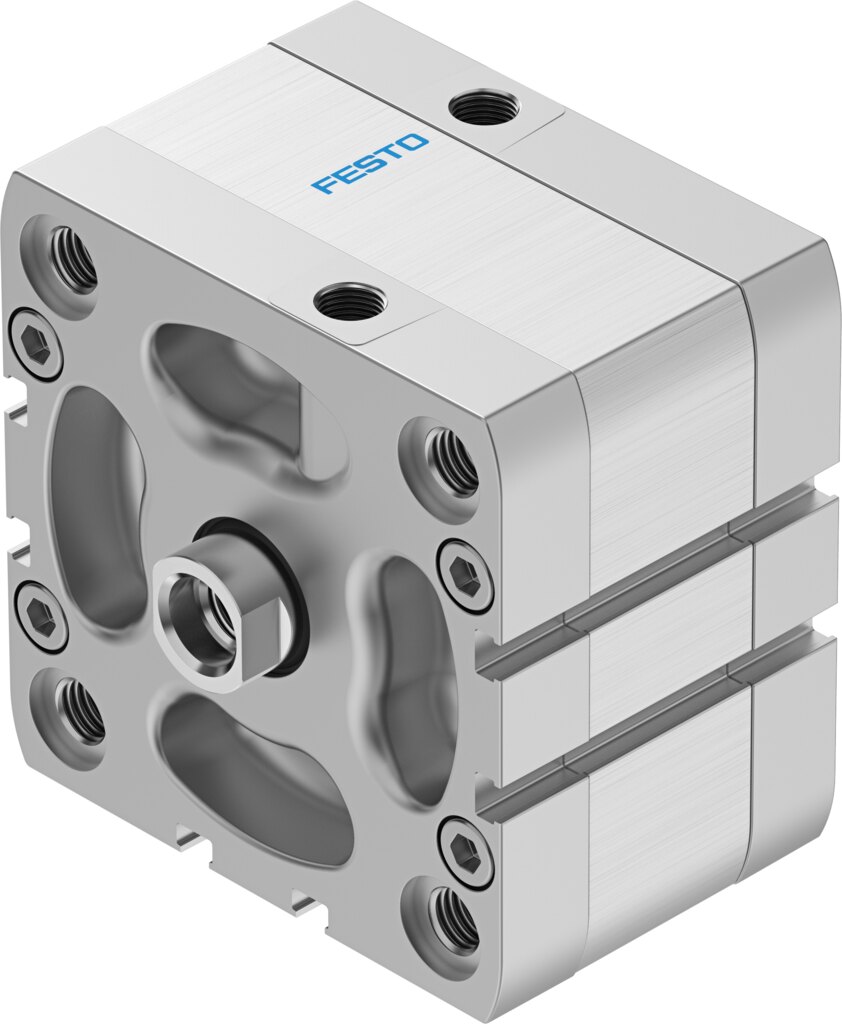

Festo ADN Compact cylinder - 80mm, G1/8, 10mm, ADN-80-10-I-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 80 mm, port size G1/8, stroke rate 10 mm, supplier type designation ADN-80-10-I-PPS-A. Supplied under manufacturer part number 572718, EAN 4052568219390, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M12
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 8 J
- Cushioning length
- 7.5 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 2827 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 3016 N
- Moving mass
- 349 g
- Product weight
- 1113 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568219390
- Festo type code
- ADN-80-10-I-PPS-A
- Festo order number
- 572718
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 25.2627 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 572718
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568219390
- MPN 572718
Product Documentation
More from Festo
Festo
Festo DSNU Round cylinder double-acting - 32mm, G1/8", 200mm, DSNU-32-200-PPS-A
559302
Festo
Festo CPE10 Solenoid Valve - QS-6", El, Spring, CPE10-M1BH-3OL-QS-6
196853
Festo
Festo ADN Compact cylinder double-acting - 50mm, 12mm, 1/8, 40mm, ADN-50-40-A-P-A
536316
Festo
Festo ADNGF Compact cylinder - 32mm, G1/8, 60mm, ADNGF-32-60-P-A
554246
Festo
Festo AEVU Compact cylinder - 25mm, M5, 10mm, AEVU-25-10-A-P-A
156992
Festo
Festo VUVG-S14 Solenoid Valve - El, Spring, VUVG-S14-P53E-ZT-G18-1T1L
573474
Festo
Festo ADVUL Compact cylinder - 80mm, G1/8, 15mm, ADVUL-80-15-P-A
156913
Festo

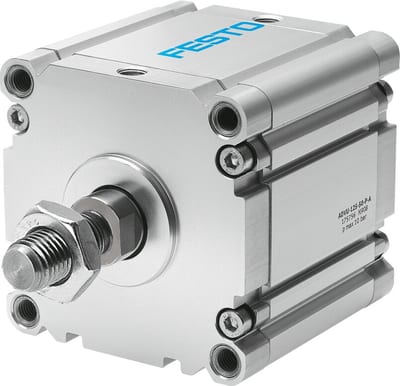

Festo ADVU Compact cylinder - 125mm, G1/4, 20mm, ADVU-125-20-A-P-A
