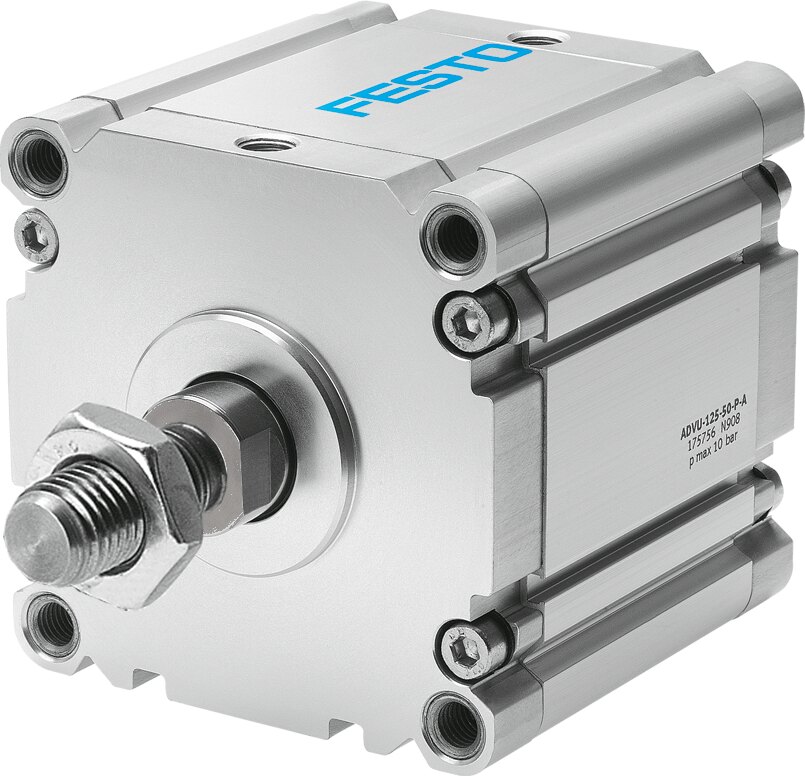

Festo ADVU Compact cylinder - 125mm, G1/4, 20mm, ADVU-125-20-A-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 125 mm, port size G1/4, stroke rate 20 mm, supplier type designation ADVU-125-20-A-P-A. Supplied under manufacturer part number 175764, EAN 4052568143343, HS code 8412.31, country of origin Hungary.
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 125 mm
- Piston rod thread
- M27x2
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.05 ... 1 MPa (0.5 ... 10 bar) (7.25 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 3.3 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 6881 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 7363 N
- Moving mass for 0 mm stroke
- 1317 g
- Additional moving mass per 10 mm stroke
- 63 g
- Basic weight for 0 mm stroke
- 3426 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- G1/4
- Material collar screws
- Galvanised steel
- Material cover
- Painted die-cast aluminium
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568143343
- Festo type code
- ADVU-125-20-A-P-A
- Festo order number
- 175764
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/4
- Carbon footprint (EPD)
- 71.7405 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 175764
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568143343
- MPN 175764
