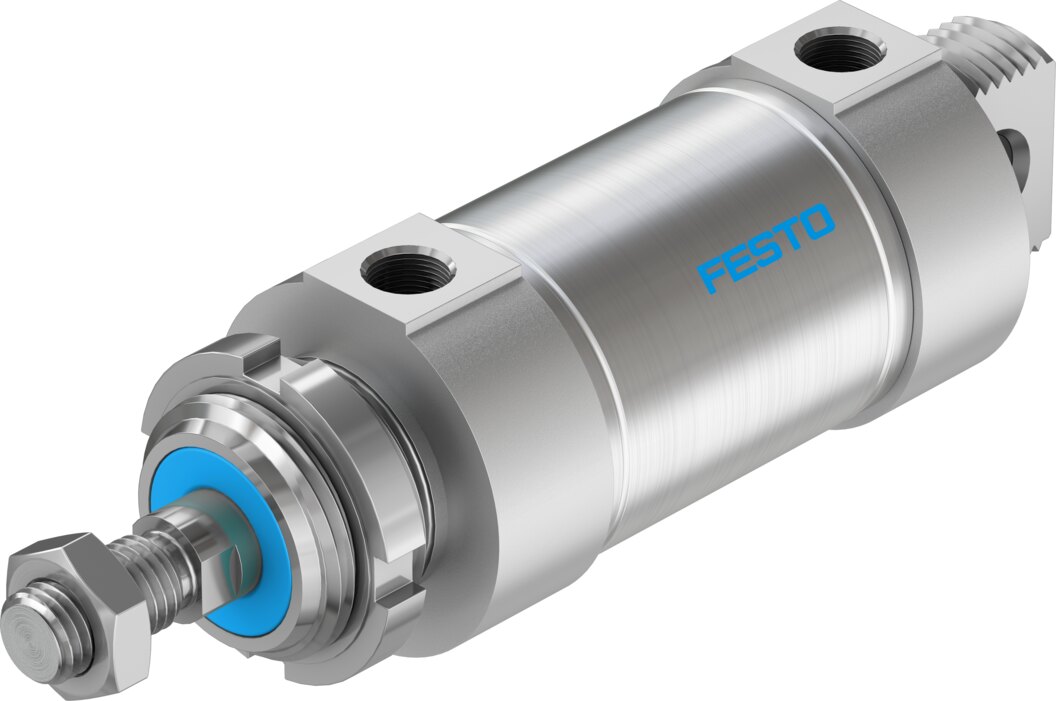

Festo DSNU Round cylinder double-acting - 63mm, G3/8", 40mm, DSNU-63-40-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU Round cylinder double-acting. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 63 mm, port size G3/8", stroke rate 40 mm, supplier type designation DSNU-63-40-PPV-A. Supplied under manufacturer part number 196051, EAN 4052568158996, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 40 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.3 J
- Cushioning length
- 21 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 1681.9 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1870.3 N
- Moving mass
- 559 g
- Product weight
- 1621 g
- Type of mounting
- With accessories
- Pneumatic connection
- G3/8
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- EAN / GTIN
- 4052568158996
- Festo type code
- DSNU-63-40-PPV-A
- Festo order number
- 196051
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G3/8"
- Carbon footprint (EPD)
- 21.8986 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 196051
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568158996
- MPN 196051
Product Documentation
More from Festo
Festo
Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-P53U-M-G14
575536
Festo

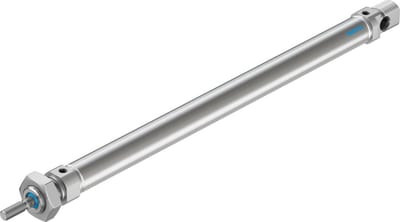

Festo DSNU Standard cylinder double-acting - 16mm, 6mm, M5", 200mm, DSNU-16-200-P-A
19206
Festo

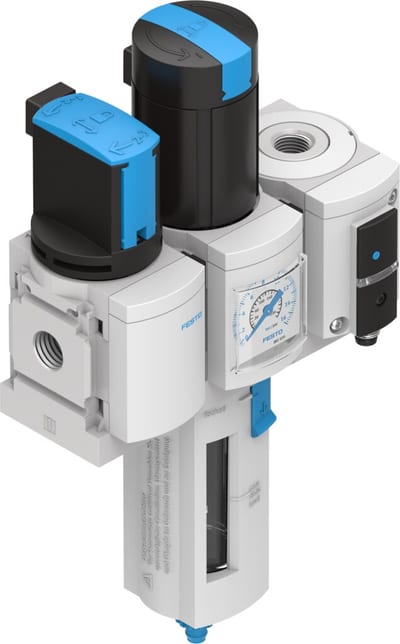

Festo MSB4 Air treatment combination manual - 1/4", 40MY, MSB4-1/4:C3:J1:F12-WP
8025356
Festo

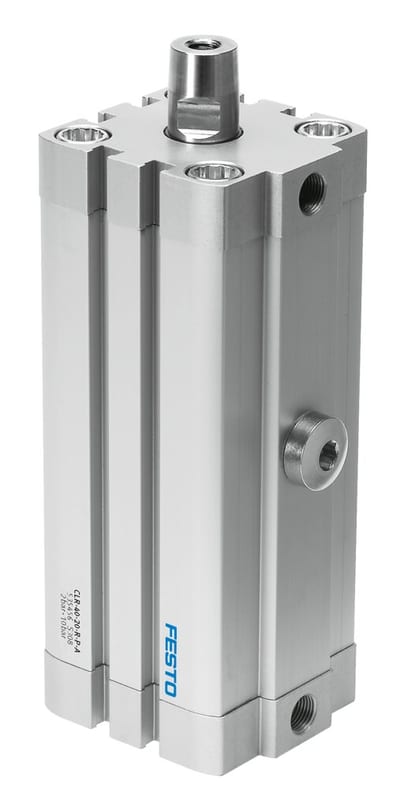

Festo CLR Linear Swing Clamp - G1/8, CLR-40-20-G-P-A
535458
Festo

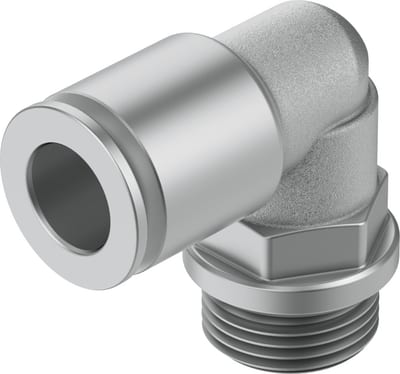

Festo NPQH-L Elbow fitting push-in Brass, chemically nickel-plated nipple - 14mm, 3/8", NPQH-L-G38-Q14-P10
578290
Festo

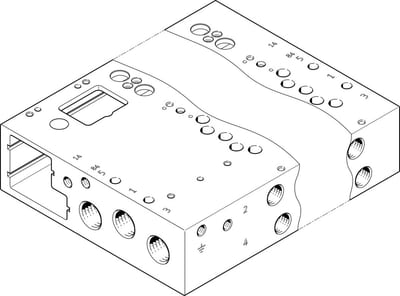

Festo VABM-L1 Connection strip - 1/4", VABM-L1-14W-G14-12-GR
573507
Festo

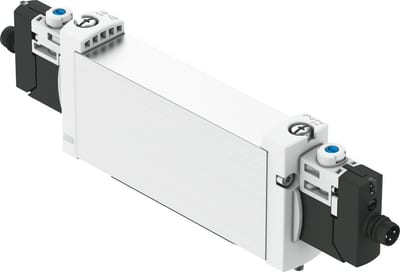

Festo VUVG-B18 Solenoid Valve - 4052568259136
8031546
Festo

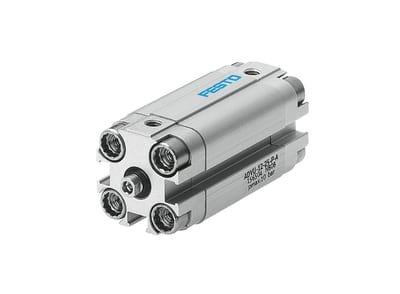

Festo ADVU Compact cylinder - 25mm, M5, 25mm, ADVU-25-25-P-A
