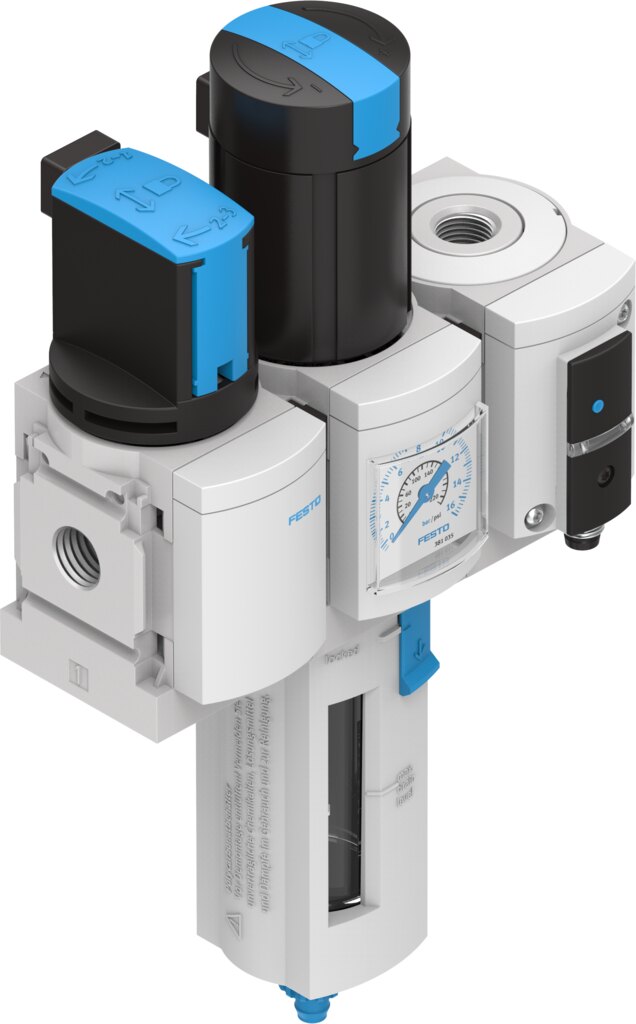

Festo MSB4 Air treatment combination manual - 1/4", 40MY, MSB4-1/4:C3:J1:F12-WP
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MSB4 Air treatment combination manual. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", filter element 40 My, supplier type designation MSB4-1/4:C3:J1:F12-WP. Supplied under manufacturer part number 8025356, EAN 4052568258597, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent; can be closed with accessories
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Branching module; On/off valve; Filter regulator with pressure gauge
- Controller function
- Output pressure constant; With primary pressure compensation; With secondary exhausting; With return flow function
- Bowl guard
- Plastic bowl guard
- Symbol
- 00991758
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.8 ... 14 bar
- Pressure regulation range
- 0.5 ... 10 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature
- 0 ... 50 °C
- Ambient temperature
- 0 ... 50 °C
- Product weight
- 1500 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Material housing
- Die-cast aluminium
- Material bowl
- Makrolon®
- EAN / GTIN
- 4052568258597
- Festo type code
- MSB4-1/4:C3:J1:F12-WP
- Festo order number
- 8025356
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Filter element
- 40 My
- Temperature max
- 50 °C
- Carbon footprint (EPD)
- 11.2146 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
- Manufacturer part number
- 8025356
