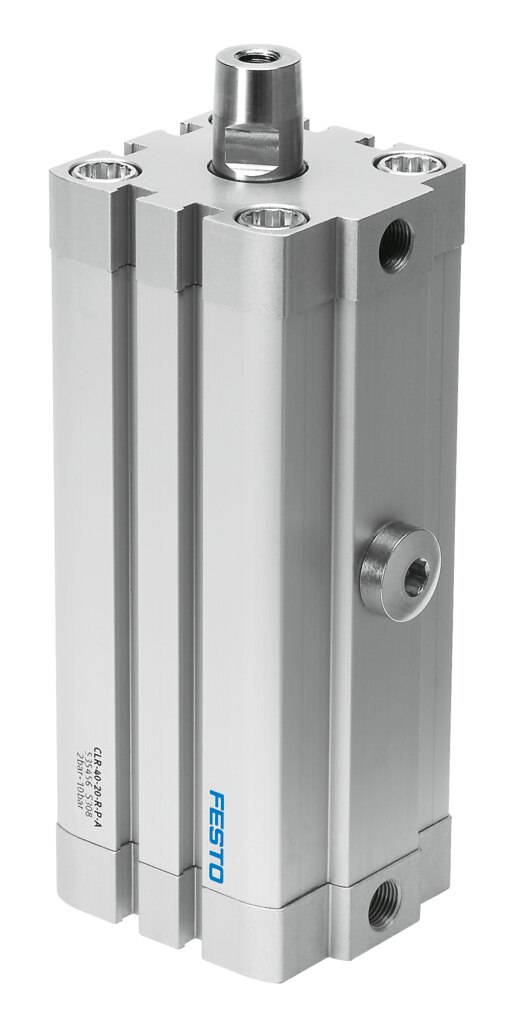

Festo CLR Linear Swing Clamp - G1/8, CLR-40-20-G-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CLR Linear Swing Clamp. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size G1/8, supplier type designation CLR-40-20-G-P-A. Supplied under manufacturer part number 535458, EAN 4052568168889, HS code 8479.90, country of origin China.
Technical Specifications
- Total stroke
- 38 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M8
- Clamping stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Swivel direction
- Straight
- Symbol
- 00991217
- Operating pressure
- 2 ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 80 °C
- Effective clamping force at 0.2 MPa (2 bar, 29 psi)
- 176 N
- Effective clamping force at 0.4 MPa (4 bar, 58 psi)
- 355 N
- Effective clamping force at 0.6 MPa (6 bar, 87 psi)
- 536 N
- Max. tightening torque Clamping finger screw
- 24 Nm
- Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)
- 633 N
- Product weight
- 985 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel; Galvanised
- Material cover
- Wrought aluminium alloy; coated
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Smooth-anodised
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy; Smooth-anodised
- EAN / GTIN
- 4052568168889
- Festo type code
- CLR-40-20-G-P-A
- Festo order number
- 535458
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 18.4704 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84799070
- HS code
- 8479.90
- Manufacturer part number
- 535458
Standards & Compliance
- HS Code
- 8479.90
Cross References
- EAN 4052568168889
- MPN 535458
