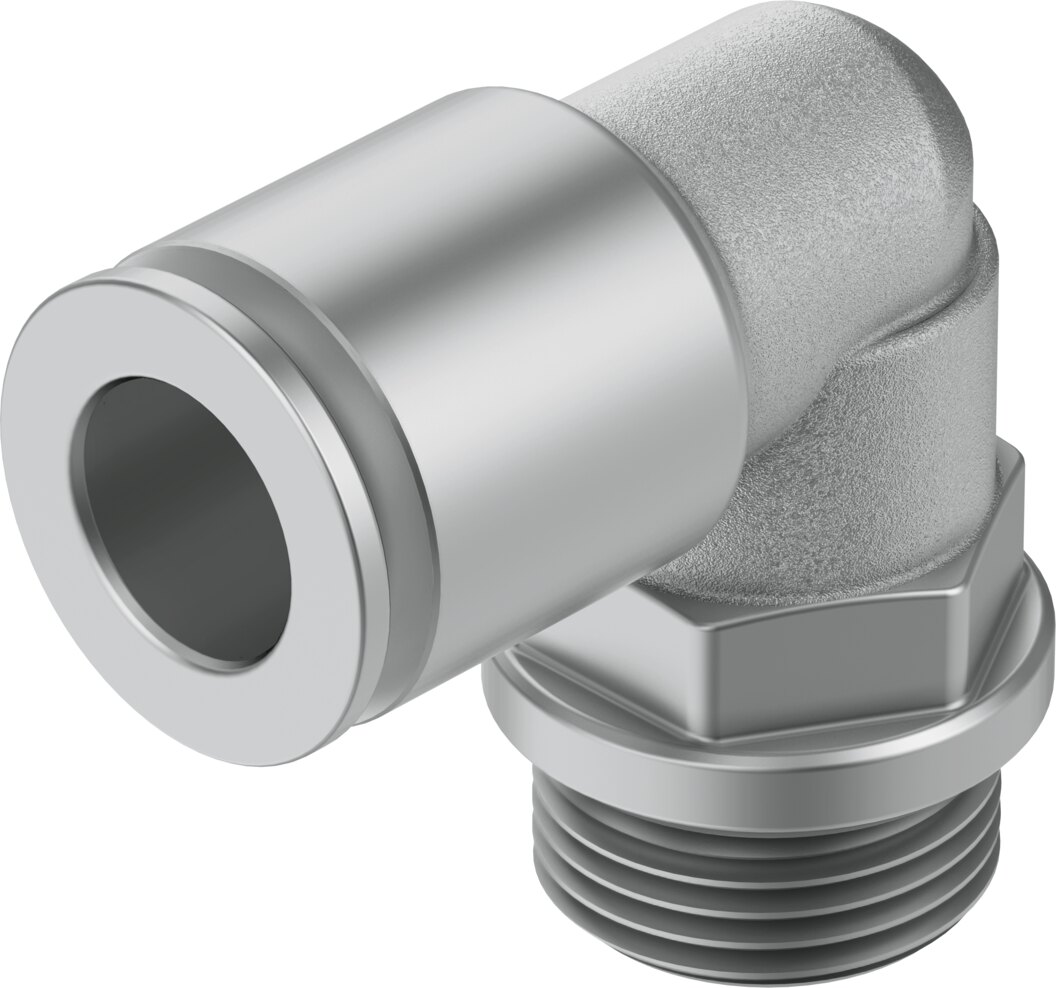

Festo NPQH-L Elbow fitting push-in Brass, chemically nickel-plated nipple - 14mm, 3/8", NPQH-L-G38-Q14-P10
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-L Elbow fitting push-in Brass, chemically nickel-plated nipple. Push-in connectors (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 14 mm, thread 3/8", supplier type designation NPQH-L-G38-Q14-P10. Supplied under manufacturer part number 578290, EAN 4052568059934, HS code 7412.20, country of origin Italy.
Technical Specifications
- Size
- Standard
- Nominal size
- 11 mm
- Tubing insertion depth
- 22.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape (Push-pull principle)
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar) (-13.775 ... 290 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Nominal torque
- 9 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 62.4 g
- Type of mounting
- External hex SW20
- Pneumatic connection, port 1
- Male thread G3/8
- Pneumatic connection, port 2
- For tubing outside diameter of 14 mm
- Colour of release ring
- Silver
- Material housing
- Brass, chemically nickel-plated
- Material thread seal
- Fluoro rubber
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- EAN / GTIN
- 4052568059934
- Festo type code
- NPQH-L-G38-Q14-P10
- Festo order number
- 578290
- Product type
- Push-in connectors
- Product group
- Pneumatics
- Outer hose diameter
- 14 mm
- Thread
- 3/8"
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.5052 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 578290
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568059934
- MPN 578290
