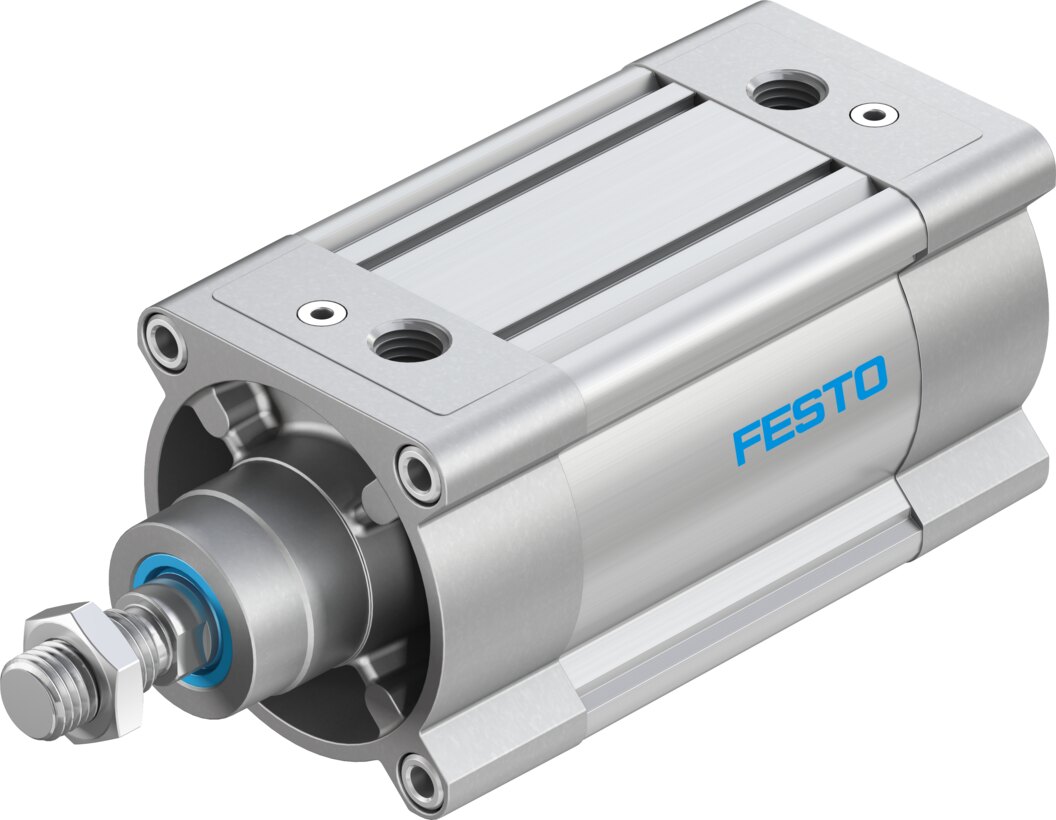

Festo DSBC Standard cylinder double-acting aluminium - 80mm, 100mm, DSBC-100-80-PPVA-N3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC Standard cylinder double-acting aluminium. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: stroke rate 80 mm, diameter 100 mm, supplier type designation DSBC-100-80-PPVA-N3. Supplied under manufacturer part number 1384807, EAN 4052568016890, HS code 8412.31, country of origin Hungary.
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 ... 1.2 MPa (0.4 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 2.5 J
- Cushioning length
- 31 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 4418 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 4712 N
- Moving mass
- 1312 g
- Moving mass for 0 mm stroke
- 1000 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 4473 g
- Basic weight for 0 mm stroke
- 3665 g
- Additional weight per 10 mm stroke
- 101 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G1/2
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- POM
- Material collar screws
- Galvanised steel
- EAN / GTIN
- 4052568016890
- Festo type code
- DSBC-100-80-PPVA-N3
- Festo order number
- 1384807
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 83.2594 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 1384807
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568016890
- MPN 1384807
Product Documentation
More from Festo
Festo

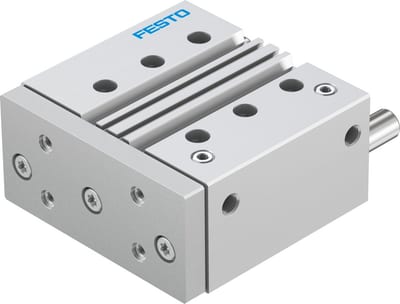

Festo DFM Guide Cylinder - 63mm, G1/4, 80mm, DFM-63-80-P-A-KF
170955
Festo

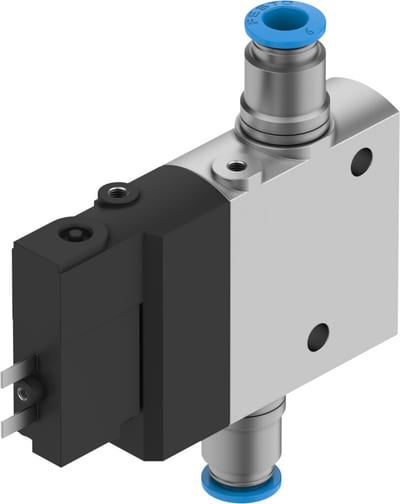

Festo CPE14 Solenoid Valve - QS-6", El, Spring, CPE14-M1BH-3GL-QS-6
196887
Festo

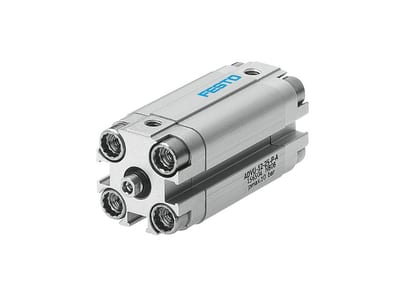

Festo ADVU Compact cylinder - 20mm, M5, 25mm, ADVU-20-25-P-A
156518
Festo

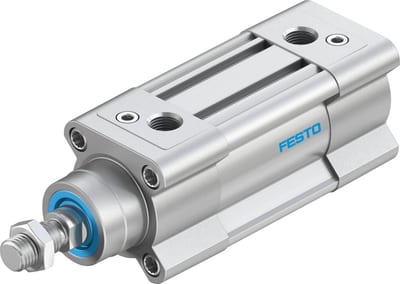

Festo DSBC Standard cylinder double-acting aluminium - 20mm, 40mm, DSBC-40-20-PPVA-N3
2123166
Festo

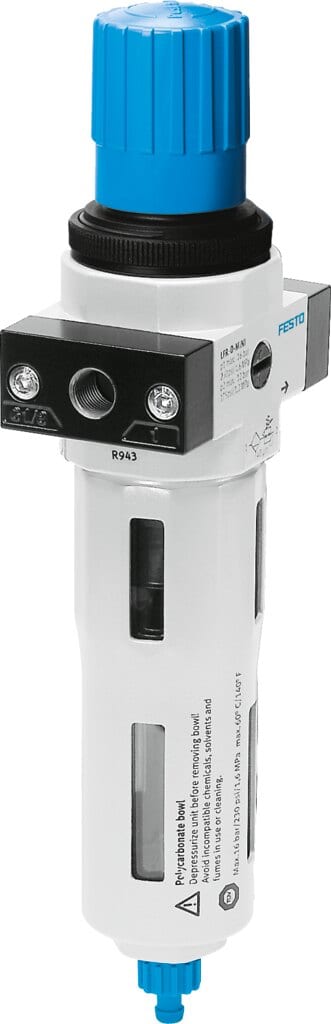

Festo LFR Filter controller Midi automatic - 3/8", 0,5 - 12bar, 5MY, LFR-3/8-D-5M-O-MIDI-A
192624
Festo

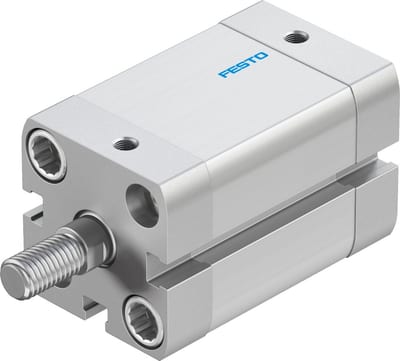

Festo ADN Compact cylinder - 25mm, M5, 25mm, ADN-25-25-A-PPS-A
577185
Festo

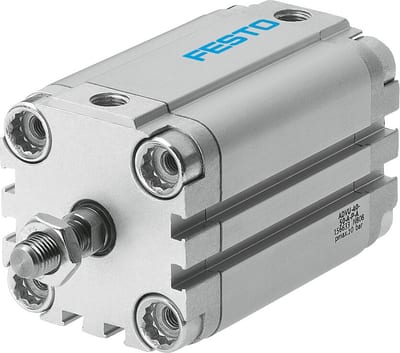

Festo ADVU Compact cylinder - 32mm, G1/8, 15mm, ADVU-32-15-A-P-A
156618
Festo

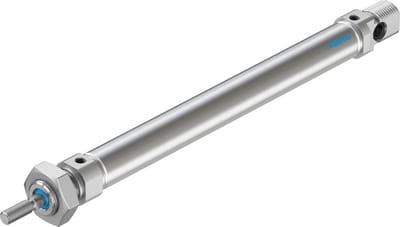

Festo DSNU Standard cylinder double-acting - 16mm, 6mm, M5", 125mm, DSNU-16-125-P-A
