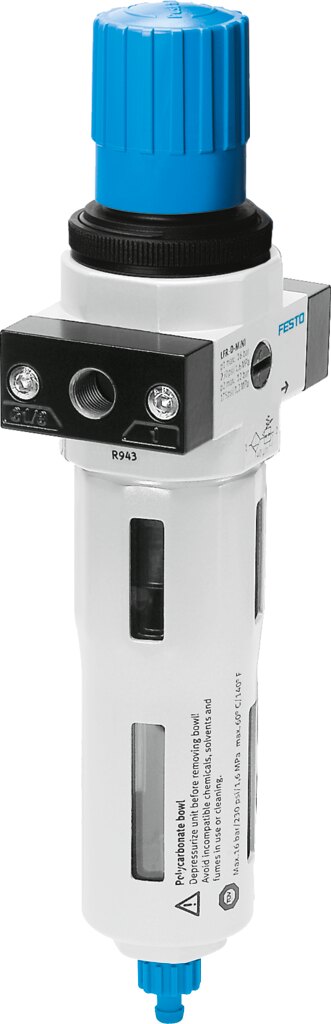

Festo LFR Filter controller Midi automatic - 3/8", 0,5 - 12bar, 5MY, LFR-3/8-D-5M-O-MIDI-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR Filter controller Midi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/8", press area 0.5 to 12 bar, filter element 5 My, supplier type designation LFR-3/8-D-5M-O-MIDI-A. Supplied under manufacturer part number 192624, EAN 4052568152673, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Midi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 5 µm Condensate drain: Fully automatic Design: Filter controller without pressure gauge Max. condensate volume: 43 ml Bowl guard: Metal bowl guard Symbol: 00991584 Pressure gauge (analogue) or Pressure display (digital): Prepared for G1/4 Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) Pressure regulation range: 0.5 ... 12 bar Max. pressure hysteresis: 0.2 bar Standard nominal flow rate (standardised to DIN 1343): 2400 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:9:-]; Inert gas Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) LABS (PWIS) conformity: VDMA24364-B1/B2-L Storage temperature: -10 ... 60 °C Air purity class at output: Compressed air to ISO 8573-1:2010 [6:8:4]; Inert gas Media temperature: 5 ... 60 °C Ambient temperature: 5 ... 60 °C Product weight: 900 g Type of mounting: With accessories Pneumatic connection, port 1: G3/8 Pneumatic connection, port 2: G3/8 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568152673 Festo type code: LFR-3/8-D-5M-O-MIDI-A Festo order number: 192624 Product type: Air treatment Product group: Pneumatics Thread: 3/8" Press Area: 0.5 to 12 bar Filter element: 5 My Carbon footprint (EPD): 22.2585 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 192624
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568152673
- MPN 192624
Product Documentation
More from Festo
Festo
Festo ADN Compact cylinder - 25mm, M5, 25mm, ADN-25-25-A-PPS-A
577185
Festo
Festo ADVU Compact cylinder - 32mm, G1/8, 15mm, ADVU-32-15-A-P-A
156618
Festo
Festo DSNU Standard cylinder double-acting - 16mm, 6mm, M5", 125mm, DSNU-16-125-P-A
19204
Festo
Festo DZH Flat cylinder - 50mm, 80mm, DZH-50-80-PPV-A
14066
Festo
Festo FLSR Freewheel clutch - 16, FLSR-16-R
15280
Festo
Festo CPE10 Solenoid Valve - QS-6", El, Spring, CPE10-M1BH-5/3GS-QS6-B
533154
Festo
Festo DZH Flat cylinder - 20mm, 250mm, DZH-20-250-PPV-A
151142
Festo
Festo CPE18 Solenoid Valve - QS-8", El, Spring, CPE18-M1H-5L-QS-8
163150
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 192624?
- 192624 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 192624.
- What is the HS code for 192624?
- The customs tariff (HS) code for 192624 is 8481.10.
- Who manufactures 192624?
- 192624 is a Festo product in the Pneumatics range.
- Is a datasheet available for 192624?
- Yes — the 192624 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 192624?
- The minimum order quantity is 1.
- Is 192624 available?
- Yes — 192624 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
