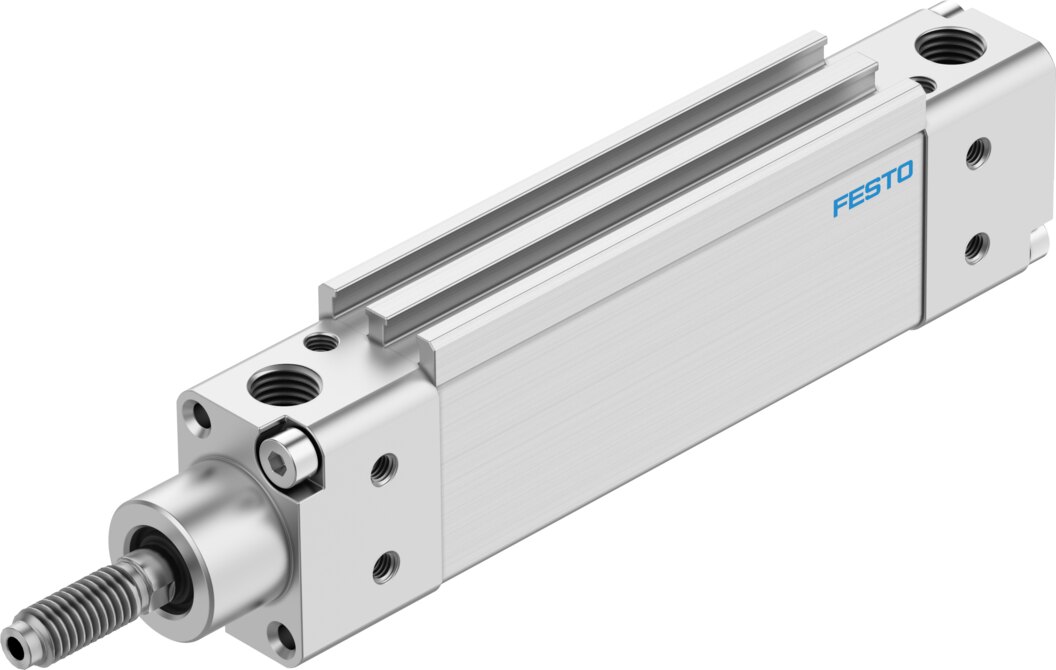

Festo DZH Flat cylinder - 20mm, 250mm, DZH-20-250-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DZH Flat cylinder. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 20 mm, stroke rate 250 mm, supplier type designation DZH-20-250-PPV-A. Supplied under manufacturer part number 151142, EAN 4052568116873, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 250 mm
- Piston diameter
- 20 mm; Equivalent diameter
- Piston rod thread
- M8
- Torsional backlash at piston rod +/-
- 2.6 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Protection against torque/guide
- Oval piston
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Cushioning length
- 17 mm
- Max. torque for protection against torsion
- 0.6 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 188 N
- Moving mass
- 170 g
- Product weight
- 632 g
- Additional weight per 10 mm stroke
- 15.9 g
- Basic weight for 0 mm stroke
- 234 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G1/8
- Material cover
- Aluminium
- Material seals
- TPE-U(PU)
- Material housing
- Aluminium
- Material piston seal
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- EAN / GTIN
- 4052568116873
- Festo type code
- DZH-20-250-PPV-A
- Festo order number
- 151142
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Diameter
- 20 mm
- Carbon footprint (EPD)
- 12.4686 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 151142
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568116873
- MPN 151142
Product Documentation
More from Festo
Festo

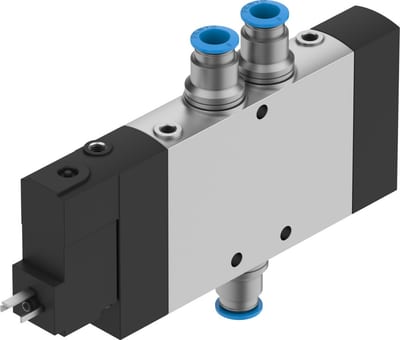

Festo CPE18 Solenoid Valve - QS-8", El, Spring, CPE18-M1H-5L-QS-8
163150
Festo

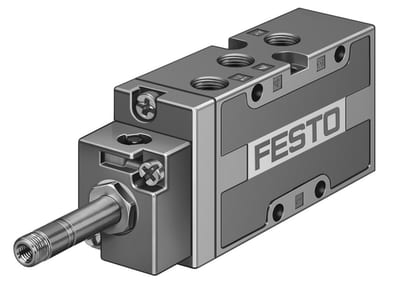

Festo MFH Solenoid Valve - G1/8", El, Spring, MFH-5-1/8-S-B
19759
Festo

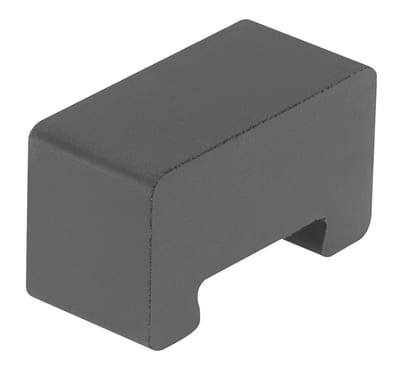

Festo NPE Emergency buffer - 120, NPE-120
562583
Festo

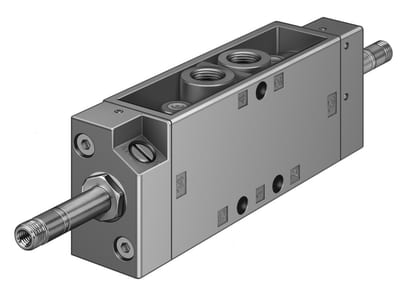

Festo JMFDH Solenoid Valve - G1/8", El, JMFDH-5-1/8-EX
536193
Festo

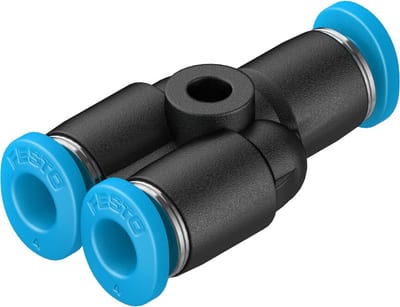

Festo QSMY Y-connection push-in composite - 4mm, 4mm, QSMY-4
153371
Festo

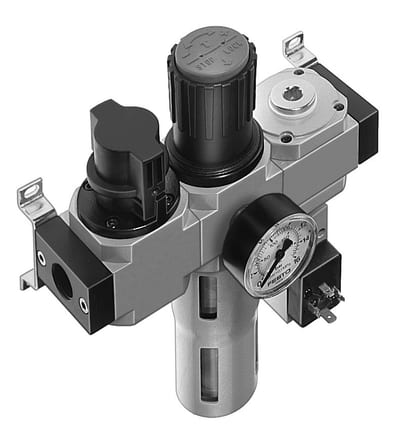

Festo LFR Service Unit Maxi automatic - 3/4", 0,5 - 12bar, 40MY, LFR-3/4-D-MAXI-KF-A
185778
Festo
Festo VUVG-B18 Solenoid Valve - El, Spring, VUVG-B18-T32C-MZT-F-1P3
574446
Festo

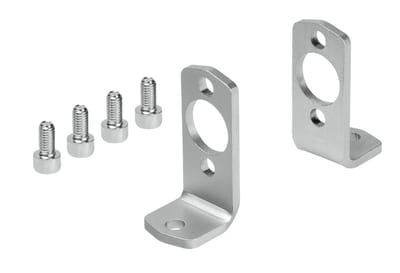

Festo HZF Foot bracket - 32, HZF-32
