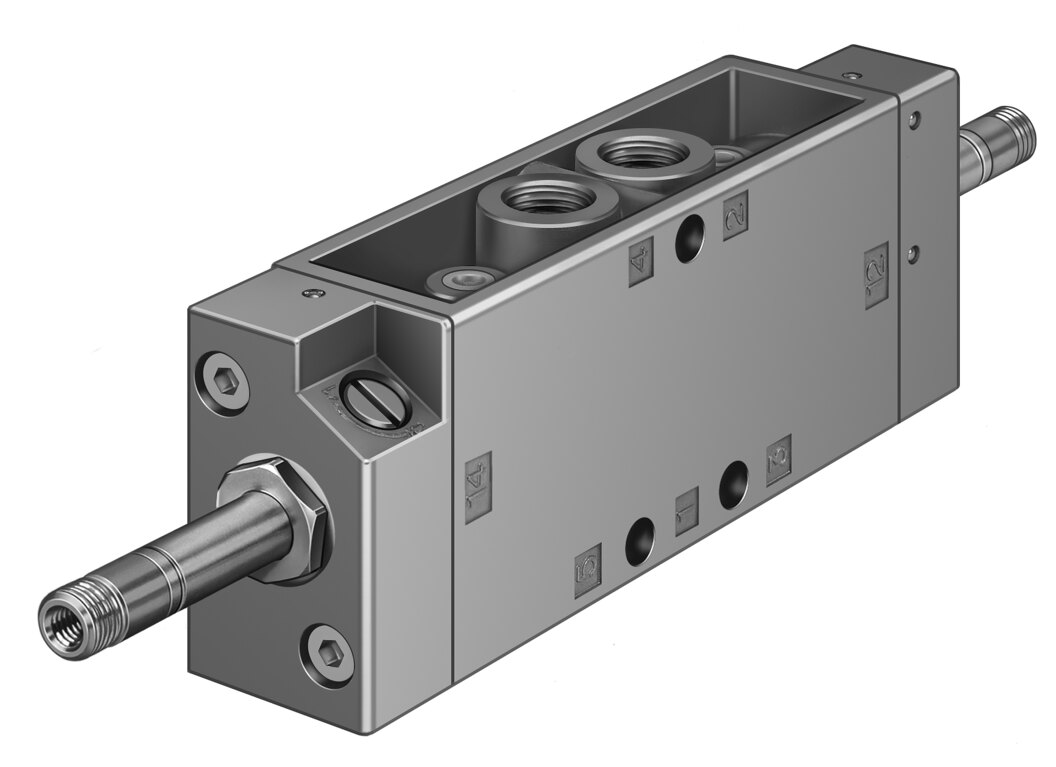

Festo JMFDH Solenoid Valve - G1/8", El, JMFDH-5-1/8-EX
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFDH Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, supplier type designation JMFDH-5-1/8-EX. Supplied under manufacturer part number 536193, EAN 4052568170912, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/2-way, bistable, dominant
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 600 l/min
- pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0.25 ... 0.8 MPa (2.5 ... 8 bar)
- Design
- Poppet seat
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- Explosion protection certification outside the EU
- EPL Db (GB); EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Flow direction
- Non-reversible
- Symbol
- 00995763
- lap
- Underlap
- Max. switching frequency
- 16 Hz
- Switching time reversal
- 16 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Explosion protection
- Zone 1 (ATEX); Zone 1 (UKEX); Zone 2 (ATEX); Zone 21 (ATEX); Zone 21 (UKEX); Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -5 ... 40 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 260 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- M3
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568170912
- Festo type code
- JMFDH-5-1/8-EX
- Festo order number
- 536193
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Carbon footprint (EPD)
- 5.7336 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 536193
