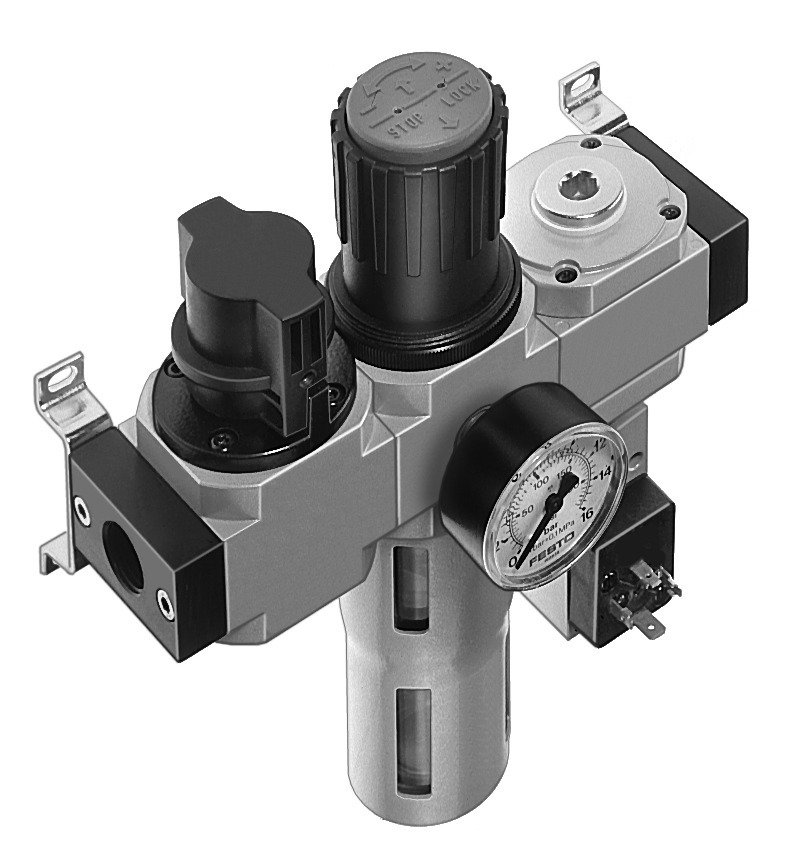

Festo LFR Service Unit Maxi automatic - 3/4", 0,5 - 12bar, 40MY, LFR-3/4-D-MAXI-KF-A

Festo LFR Service Unit Maxi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 3/4", press area 0.5 to 12 bar, filter element 40 My, supplier type designation LFR-3/4-D-MAXI-KF-A. Supplied under manufacturer part number 185778, EAN 4052568145385, HS code 8481.10, country of origin Hungary.

Size

Maxi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 40 µm Condensate drain: Fully automatic Design: Branching module; Pressure switch; On/off valve; Filter controller with pressure gauge Max. condensate volume: 80 ml Bowl guard: Metal bowl guard Symbol: 00991758 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) (29 ... 174 psi) Pressure regulation range: 0.05 ... 1.2 MPa (0.5 ... 12 bar) (7.25 ... 174 psi) Max. pressure hysteresis: 0.02 MPa (0.2 bar) (2.9 psi) Standard nominal flow rate (standardised to DIN 1343): 8400 l/min Operating medium: Inert gas LABS (PWIS) conformity: VDMA24364-B1/B2-L Air purity class at output: Compressed air to ISO 8573-1:2010 [7:8:4]; Inert gas Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Product weight: 3300 g Type of mounting: With accessories Pneumatic connection, port 1: G3/4 Pneumatic connection, port 2: G3/4 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568145385 Festo type code: LFR-3/4-D-MAXI-KF-A Festo order number: 185778 Product type: Air treatment Product group: Pneumatics Thread: 3/4" Press Area: 0.5 to 12 bar Filter element: 40 My Carbon footprint (EPD): 41.8556 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 185778

HS Code

8481.10

• EAN 4052568145385
• MPN 185778
