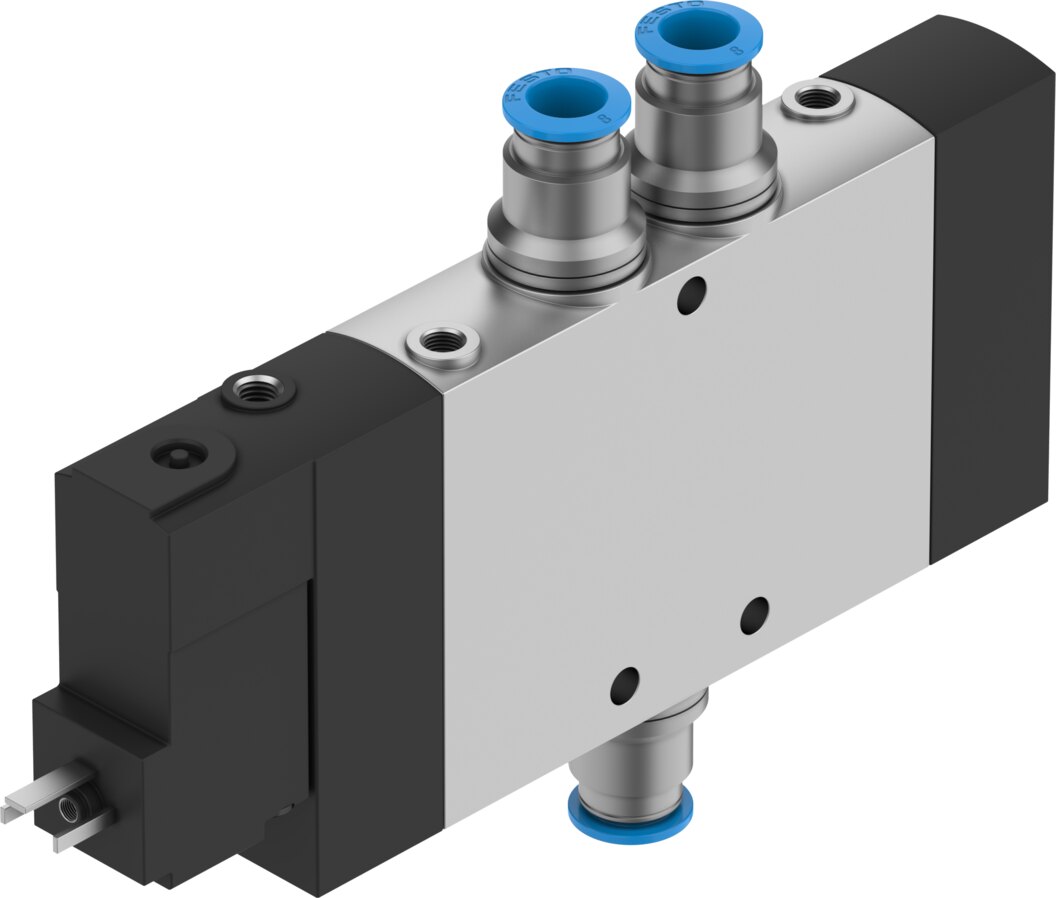

Festo CPE18 Solenoid Valve - QS-8", El, Spring, CPE18-M1H-5L-QS-8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE18 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread QS-8", activation El, return Spring, supplier type designation CPE18-M1H-5L-QS-8. Supplied under manufacturer part number 163150, EAN 4052568133122, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 850 l/min
- pneumatic working port
- QS-8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65; With plug socket; To IEC 60529
- Nominal size
- 8 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991023
- Valve position code
- Label holder
- lap
- Overlap
- Switching time off
- 20 ms
- Switching time on
- 26 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse with 1 signal
- 3100 µs
- Characteristic coil data
- 24 V DC: 1.5 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Electrical connection
- Type C
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- QS-8
- Pneumatic connection, port 2
- QS-8
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- QS-8
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568133122
- Festo type code
- CPE18-M1H-5L-QS-8
- Festo order number
- 163150
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- QS-8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 5.2956 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 163150
