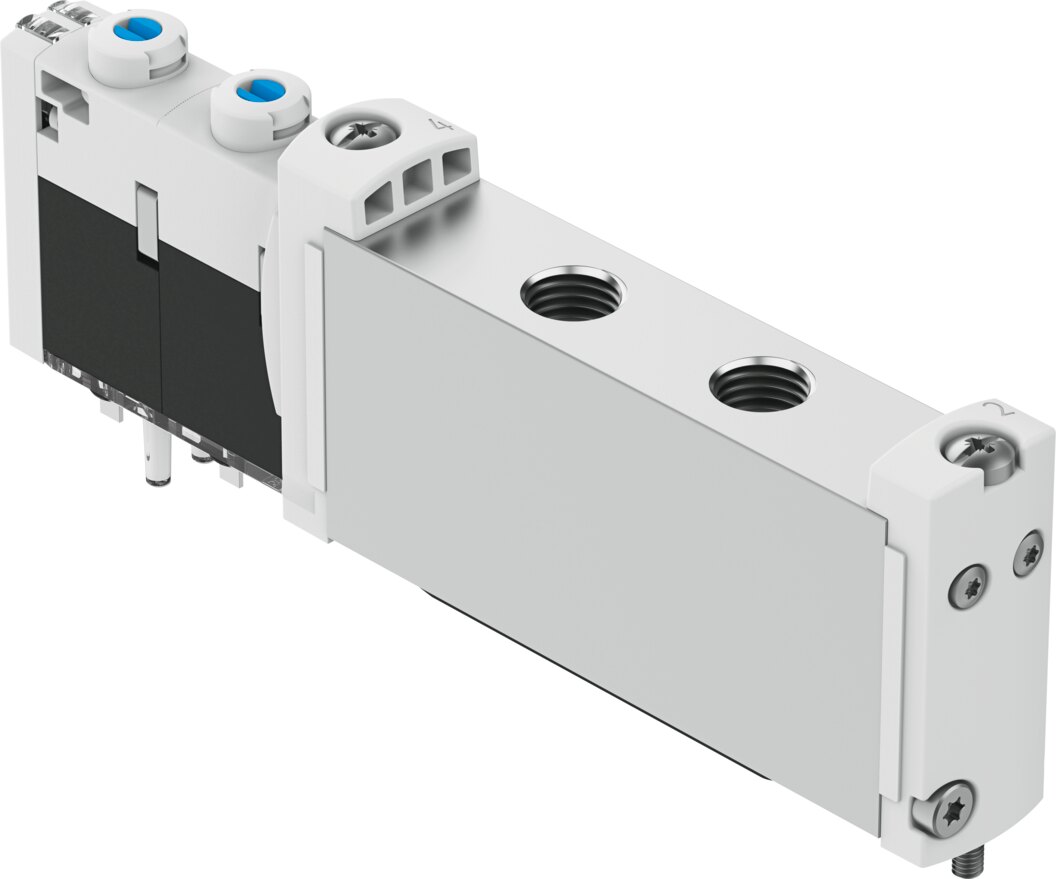

Festo VUVG-S14 Solenoid Valve - El, Spring, VUVG-S14-P53E-ZT-G18-1T1L
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-S14 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation VUVG-S14-P53E-ZT-G18-1T1L. Supplied under manufacturer part number 573474, EAN 4052568220532, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/3 exhausted
- Type of actuation
- Electrical
- Valve size
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 590 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65; IP67
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991127
- lap
- Overlap
- Signal status display
- LED
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 42 ms
- Switching time on
- 15 ms
- Switching time reversal
- 25 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 22 V DC: 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 95 g
- Electrical connection
- Via E-box
- Type of mounting
- On manifold rail
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 4
- G1/8
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- EAN / GTIN
- 4052568220532
- Festo type code
- VUVG-S14-P53E-ZT-G18-1T1L
- Festo order number
- 573474
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 2.0433 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 573474
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568220532
- MPN 573474
