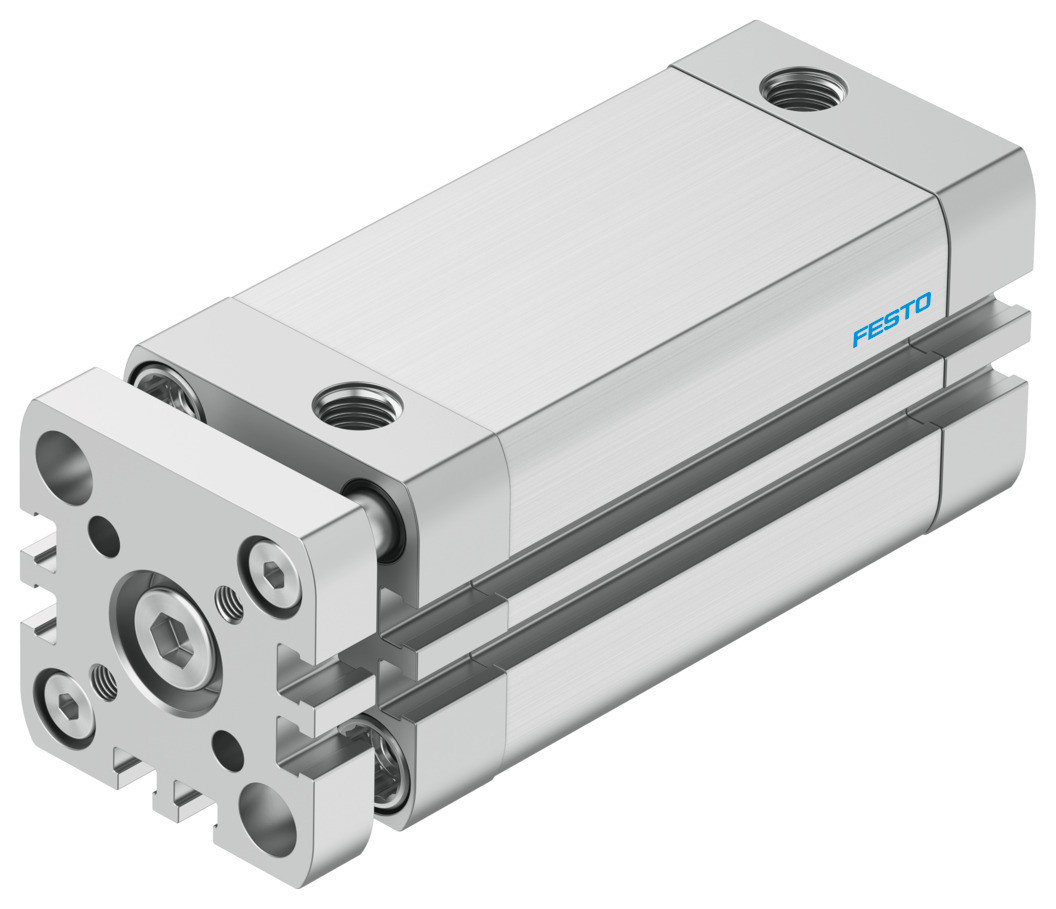

Festo ADNGF Compact cylinder - 32mm, G1/8, 60mm, ADNGF-32-60-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 32 mm, port size G1/8, stroke rate 60 mm, supplier type designation ADNGF-32-60-P-A. Supplied under manufacturer part number 554246, EAN 4052568198725, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 32 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.4 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 483 N
- Moving mass
- 226 g
- Product weight
- 533 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568198725
- Festo type code
- ADNGF-32-60-P-A
- Festo order number
- 554246
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 10.3532 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 554246
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568198725
- MPN 554246
Product Documentation
More from Festo
Festo
Festo AEVU Compact cylinder - 25mm, M5, 10mm, AEVU-25-10-A-P-A
156992
Festo
Festo VUVG-S14 Solenoid Valve - El, Spring, VUVG-S14-P53E-ZT-G18-1T1L
573474
Festo
Festo ADVUL Compact cylinder - 80mm, G1/8, 15mm, ADVUL-80-15-P-A
156913
Festo
Festo ADVU Compact cylinder - 125mm, G1/4, 20mm, ADVU-125-20-A-P-A
175764
Festo
Festo DSNU Standard cylinder double-acting - 25mm, 10mm, G1/8", 20mm, DSNU-25-20-PPV-A
1908314
Festo
Festo DSNU Round cylinder double-acting - 63mm, G3/8", 40mm, DSNU-63-40-PPV-A
196051
Festo
Festo VUWS-L25 Pneumatic valve - G1/4", Air, Spring, VUWS-L25-P53U-M-G14
575536
Festo
Festo DSNU Standard cylinder double-acting - 16mm, 6mm, M5", 200mm, DSNU-16-200-P-A
19206
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 554246?
- 554246 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 554246.
- What is the HS code for 554246?
- The customs tariff (HS) code for 554246 is 8412.31.
- Who manufactures 554246?
- 554246 is a Festo product in the Pneumatics range.
- Is a datasheet available for 554246?
- Yes — the 554246 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 554246?
- The minimum order quantity is 1.
- Is 554246 available?
- Yes — 554246 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
