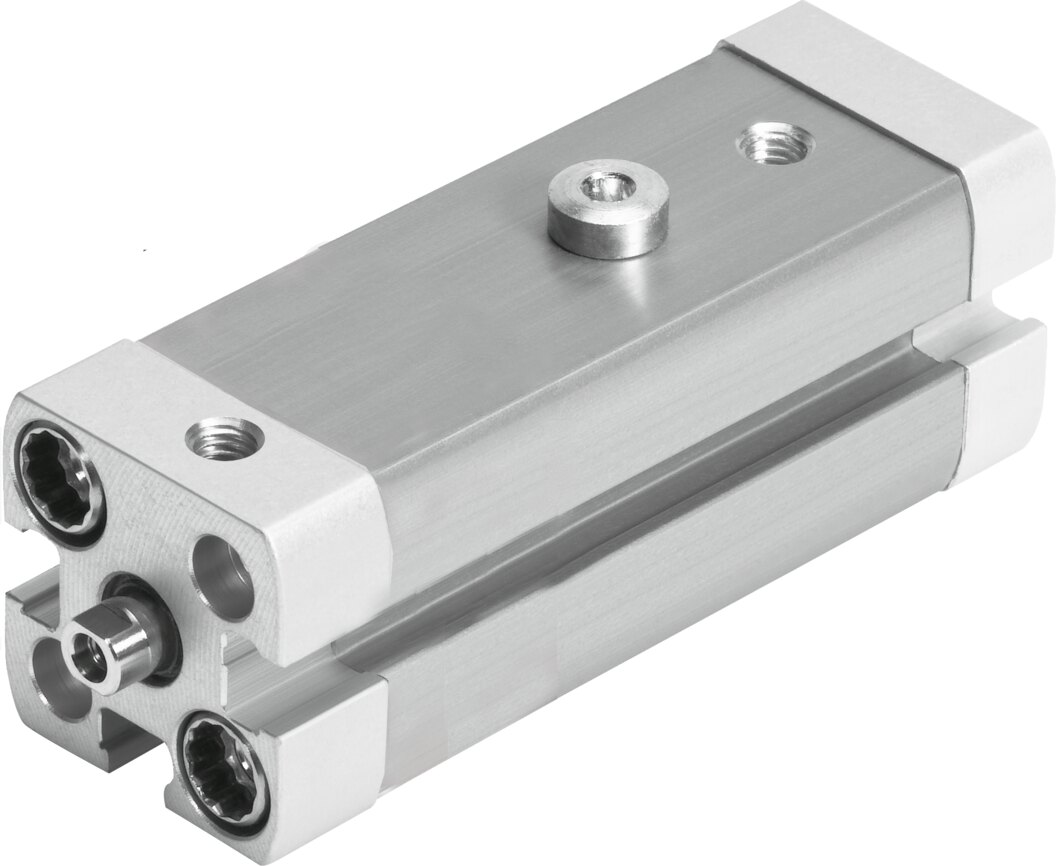

Festo CLR Linear Swing Clamp - 25mm, M5, CLR-25-20-R-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CLR Linear Swing Clamp. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 25 mm, port size M5, supplier type designation CLR-25-20-R-P-A. Supplied under manufacturer part number 535445, EAN 4052568168841, HS code 8479.90, country of origin China.
Technical Specifications
- Total stroke
- 33 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M6
- Swivel angle
- 90 deg +/-3 deg
- Clamping stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Swivel direction
- right
- Symbol
- 00991217
- Operating pressure
- 2 ... 10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 80 °C
- Effective clamping force at 0.2 MPa (2 bar, 29 psi)
- 63 N
- Effective clamping force at 0.4 MPa (4 bar, 58 psi)
- 127 N
- Effective clamping force at 0.6 MPa (6 bar, 87 psi)
- 188 N
- Max. tightening torque Clamping finger screw
- 12 Nm
- Theoretical clamping force at 0.6 MPa (6 bar, 87 psi)
- 227 N
- Product weight
- 455 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- M5
- Material collar screws
- Steel; Galvanised
- Material cover
- Wrought aluminium alloy; coated
- Material seals
- NBR; TPE-U(PU)
- Material housing
- Smooth-anodised
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- Wrought aluminium alloy; Smooth-anodised
- EAN / GTIN
- 4052568168841
- Festo type code
- CLR-25-20-R-P-A
- Festo order number
- 535445
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 8.0467 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84799070
- HS code
- 8479.90
- Manufacturer part number
- 535445
Standards & Compliance
- HS Code
- 8479.90
Cross References
- EAN 4052568168841
- MPN 535445
Product Documentation
More from Festo
Festo
Festo ADN Compact cylinder - 80mm, G1/8, 10mm, ADN-80-10-I-PPS-A
572718
Festo
Festo DSNU Round cylinder double-acting - 32mm, G1/8", 200mm, DSNU-32-200-PPS-A
559302
Festo
Festo CPE10 Solenoid Valve - QS-6", El, Spring, CPE10-M1BH-3OL-QS-6
196853
Festo
Festo ADN Compact cylinder double-acting - 50mm, 12mm, 1/8, 40mm, ADN-50-40-A-P-A
536316
Festo
Festo ADNGF Compact cylinder - 32mm, G1/8, 60mm, ADNGF-32-60-P-A
554246
Festo
Festo AEVU Compact cylinder - 25mm, M5, 10mm, AEVU-25-10-A-P-A
156992
Festo
Festo VUVG-S14 Solenoid Valve - El, Spring, VUVG-S14-P53E-ZT-G18-1T1L
573474
Festo
Festo ADVUL Compact cylinder - 80mm, G1/8, 15mm, ADVUL-80-15-P-A
156913
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 535445?
- 535445 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 535445.
- What is the HS code for 535445?
- The customs tariff (HS) code for 535445 is 8479.90.
- Who manufactures 535445?
- 535445 is a Festo product in the Pneumatics range.
- Is a datasheet available for 535445?
- Yes — the 535445 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 535445?
- The minimum order quantity is 1.
- Is 535445 available?
- Yes — 535445 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
