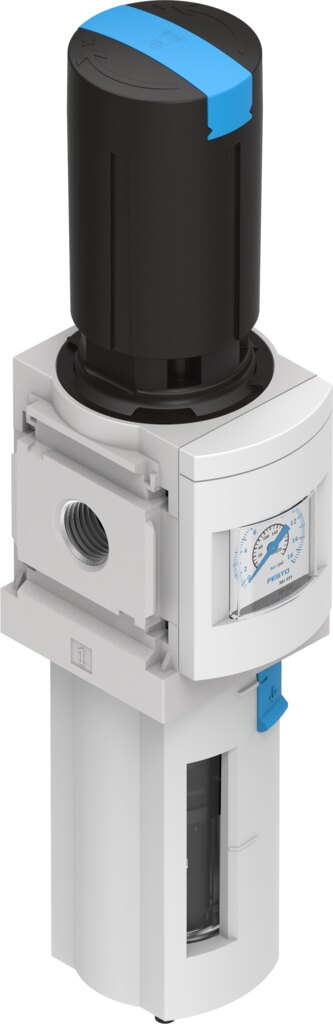

Festo MS6-LFR-1/2-D7-CRV-AS Filter regulator
Part number529186EAN / GTIN4052568015640HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS6-LFR-1/2-D7-CRV-AS — Filter regulator, ms series. operating pressure 0.2. 1.2 MPa (2. 12 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 529186
- Type code
- MS6-LFR-1/2-D7-CRV-AS
- EAN / GTIN
- 4052568015640
- Product category
- MS series
- Size
- 6
- Series
- MS
- Actuator lock
- Rotary knob with detent, can be closed with accessories
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 5 µm
- Condensate drain
- Fully automatic, Manual, non-detenting
- Design
- Filter regulator with pressure gauge
- Max. condensate volume
- 38 ml
- Controller function
- Output pressure constant, with secondary exhausting
- Bowl guard
- Plastic bowl guard
- Degree of condensate separation
- 75 %
- Symbol
- 00991587
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.2 ... 1.2 MPa (2 ... 12 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.025 MPa (0.25 bar; 3.625 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 4000 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:-], Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [6:4:4]
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Pore size
- 5 µm
- Product weight
- 875 g
- Type of mounting
- Either:, Front panel mounting, Inline installation, with accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material control panel
- PA, POM
- Material seals
- NBR
- Material filter
- Packaging unit
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- Material bowl
- Makrolon®
- Material separating plate
- POM
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Filter element
- 5 My
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 20.1841 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
