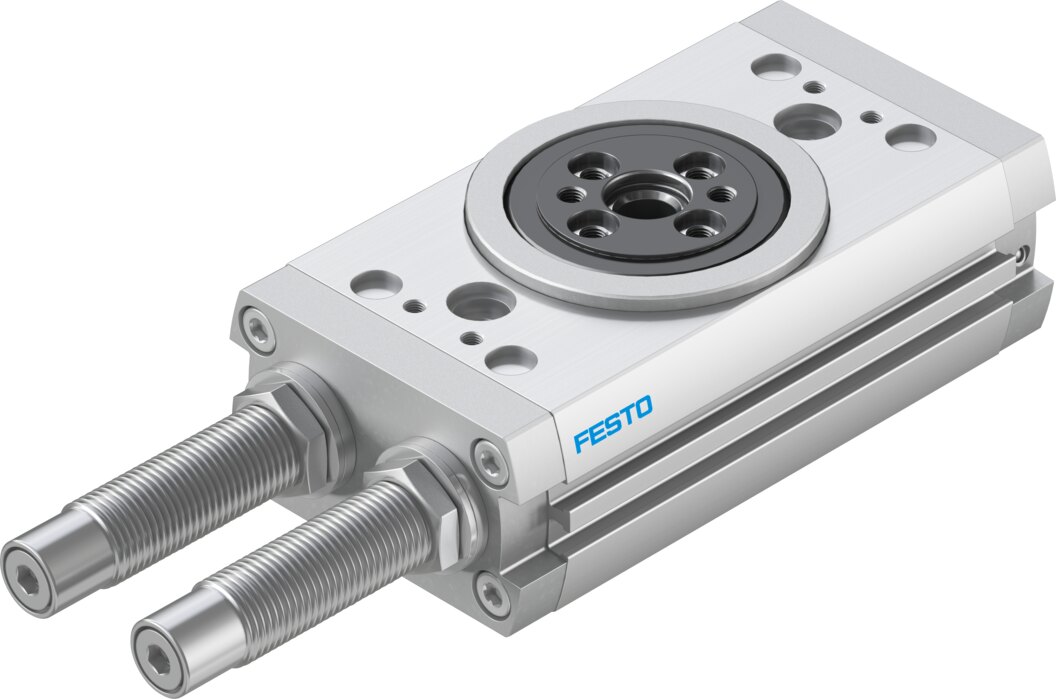

Festo DRRD-25-180-FH-Y9A Semi-rotary drive
Part number1360248EAN / GTIN4052568230937HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DRRD-25-180-FH-Y9A — Semi-rotary drive, rack and pinion actuators. operating pressure 0.2. 1 MPa (2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 1360248
- Type code
- DRRD-25-180-FH-Y9A
- EAN / GTIN
- 4052568230937
- Product category
- Rack and pinion actuators
- Size
- 25
- Cushioning angle
- 79 deg
- Setting range of swivel angle for each end position
- +10 /-190 deg
- Swivel angle
- 180 deg
- Cushioning
- Internal hydraulic cushioning normal
- Mounting position
- Any
- Design
- Rack and pinion
- Position detection
- Via proximity switch
- Symbol
- 00991265
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- LABS (PWIS) conformity
- VDMA24364 zone III
- Ambient temperature
- -10 ... 60 °C
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 5.15 Nm
- Permissible mass moment of inertia
- 0.15 kgm²
- Product weight
- 1358 g
- Type of mounting
- With through-hole, with female thread
- Pneumatic connection
- M5
- Material drive shaft
- Tempered steel
- Material cover
- Wrought aluminium alloy, anodised
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Smooth-anodised
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 25 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 29.6195 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568230937
- MPN 1360248
Product Documentation
Document preview: DRRD-25-180-FH-Y9A — Festo product documentation
More from Festo
Festo
Festo ADNGF-40-30-PPS-A Compact cylinder
574035
Festo
Festo VUVG-L10-P53U-T-M5-1R8L Solenoid valve
8031476
Festo
Festo LFR-1/4-D-5M-O-MIDI Filter regulator
192613
Festo
Festo VUVG-B18-P53E-Z-F-P1 Solenoid valve
8033569
Festo
Festo ADVU-100-20-P-A Compact cylinder
156579
Festo
Festo LRS-1/4-D-MINI Pressure regulator
194610
Festo

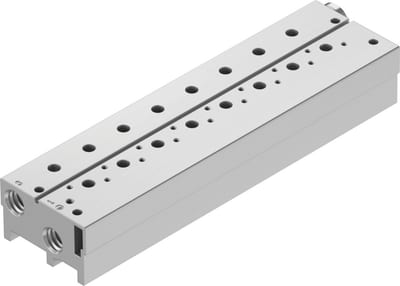

Festo VABM-B10-20S-G14-7-P3 Manifold block
576470
Festo

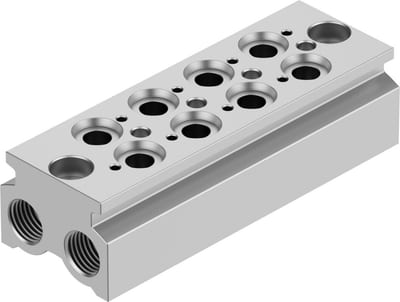

Festo CPE18-3/2-PRS-3/8-4 Manifold block
