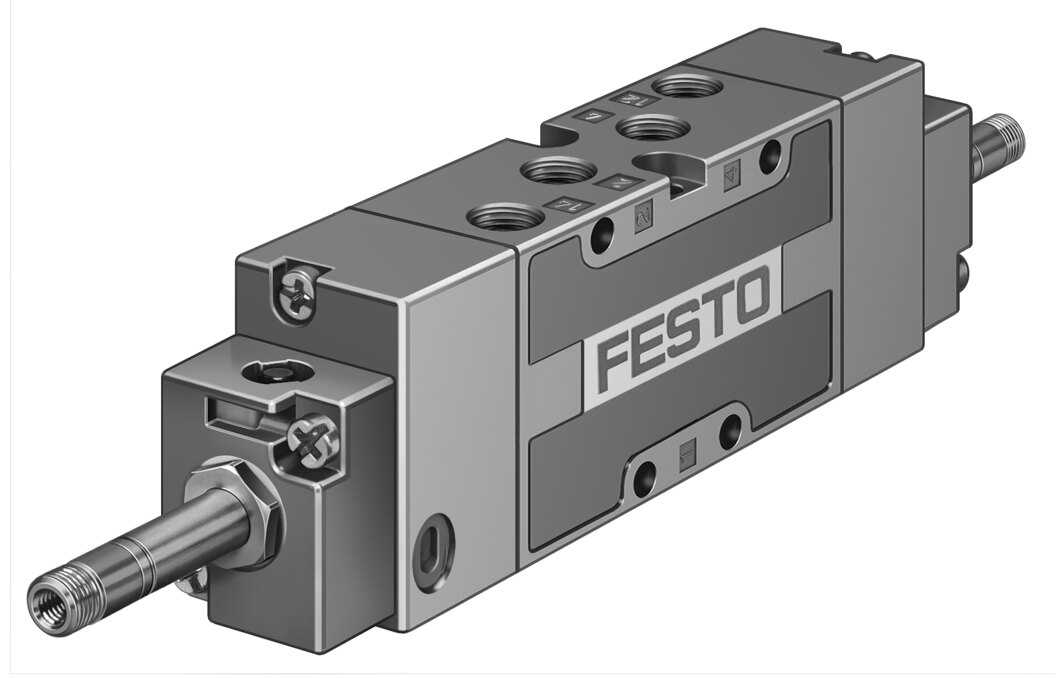

Festo MFH-5/3G-1/8-S-B-EX Solenoid valve
Part number535939EAN / GTIN4052568169893HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5/3G-1/8-S-B-EX — Solenoid valve, valves and valve terminals. valve function 5/3-way, closed; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 535939
- Type code
- MFH-5/3G-1/8-S-B-EX
- EAN / GTIN
- 4052568169893
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, closed
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1000 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- Explosion protection certification outside the EU
- EPL Db (GB), EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal size
- 8 mm
- Grid dimension
- 27 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991020
- lap
- Overlap
- Pilot pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 23 ms
- Switching time on
- 20 ms
- Switching time reversal
- 23 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Explosion protection
- Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 40 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 440 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 10.6095 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568169893
- MPN 535939
Product Documentation
Document preview: MFH-5/3G-1/8-S-B-EX — Festo product documentation
More from Festo
Festo
Festo LFR-1/4-D-MIDI-A Filter regulator
186484
Festo
Festo QS-4-100 Push-in connector
4052568024079
Festo

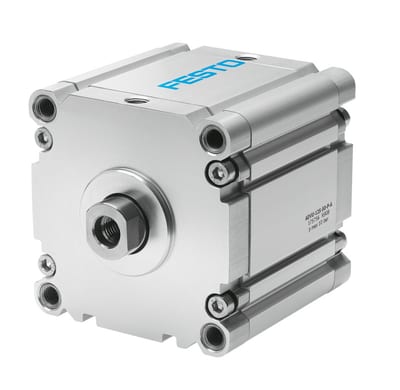

Festo ADVU-125-50-P-A Compact cylinder
175756
Festo

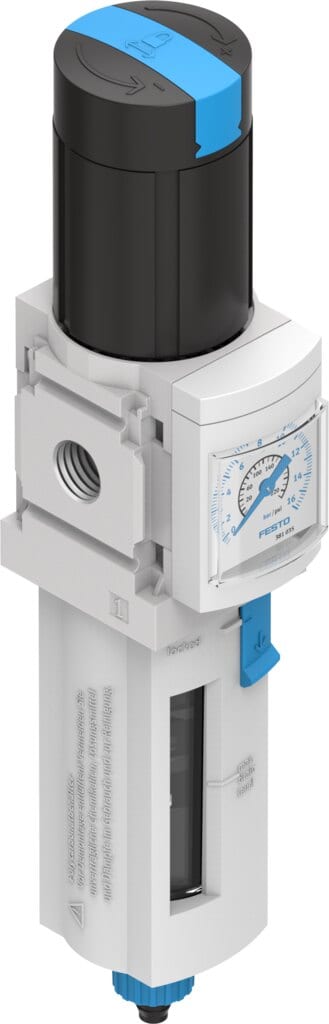

Festo MS4-LFR-1/4-D6-ERV-AS Filter regulator
529150
Festo

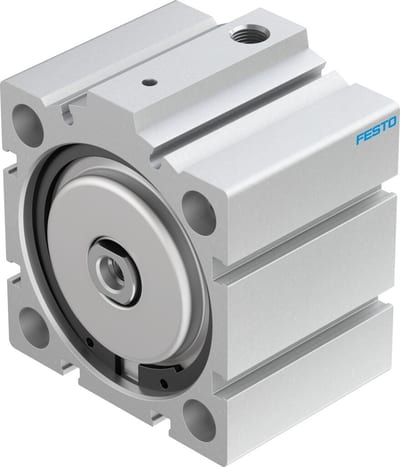

Festo AEVC Short stroke cylinder - 63mm, G1/8, 25mm, AEVC-63-25-I-P
188279
Festo

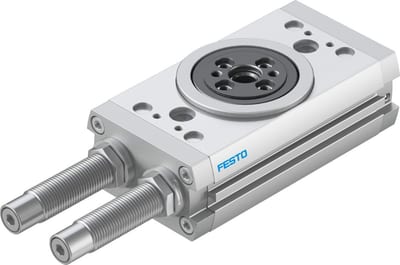

Festo DRRD-25-180-FH-Y9A Semi-rotary drive
1360248
Festo

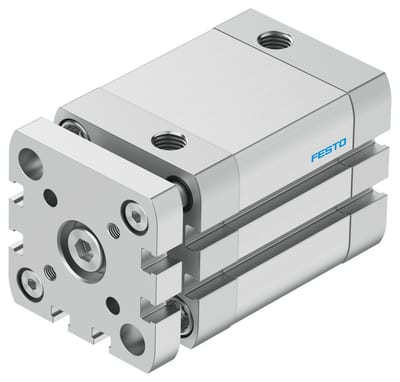

Festo ADNGF-40-30-PPS-A Compact cylinder
