Festo

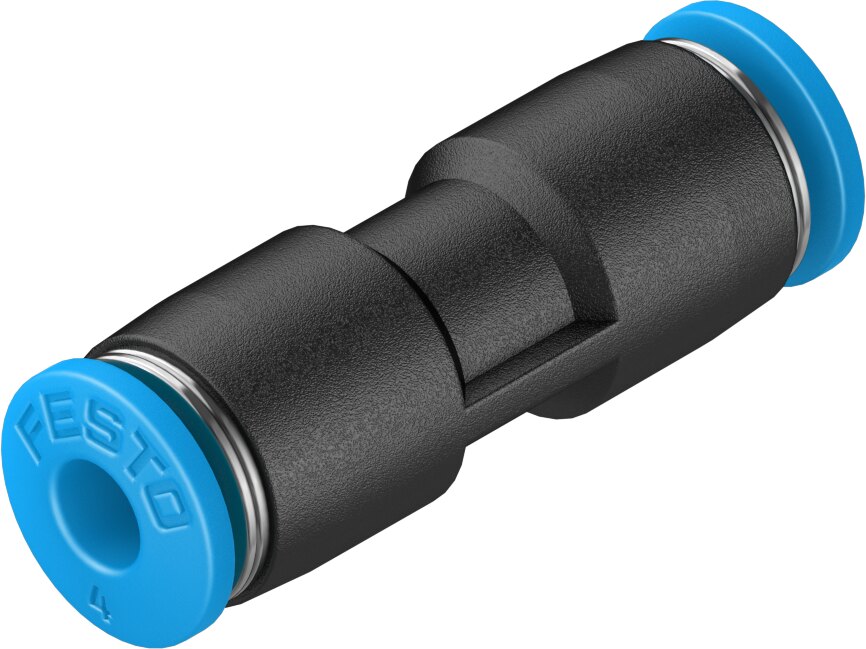

Festo QS-4-100 Push-in connector
Part number4052568024079Item number10417114EAN / GTIN4052568024079HS code3917.40
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QS-4-100 — Push-in connector, push-in fittings. nominal size 2.8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 130686
- Type code
- QS-4-100
- EAN / GTIN
- 4052568024079
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 2.8 mm
- Tubing insertion depth
- 14.9 mm
- Mounting position
- Any
- Design
- Straight design
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 100
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar; -13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar; -13.775 ... 203 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 4.7 g
- Pneumatic connection, port 1
- For tubing outer diameter of 4 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 4 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- Product type
- Collectors C
- Product group
- Pneumatics
- Outer hose diameter
- 4 mm
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0273 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 39174000
- HS code
- 3917.40
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4052568024079
- MPN 130686
Product Documentation
Document preview: QS-4-100 — Festo product documentation
