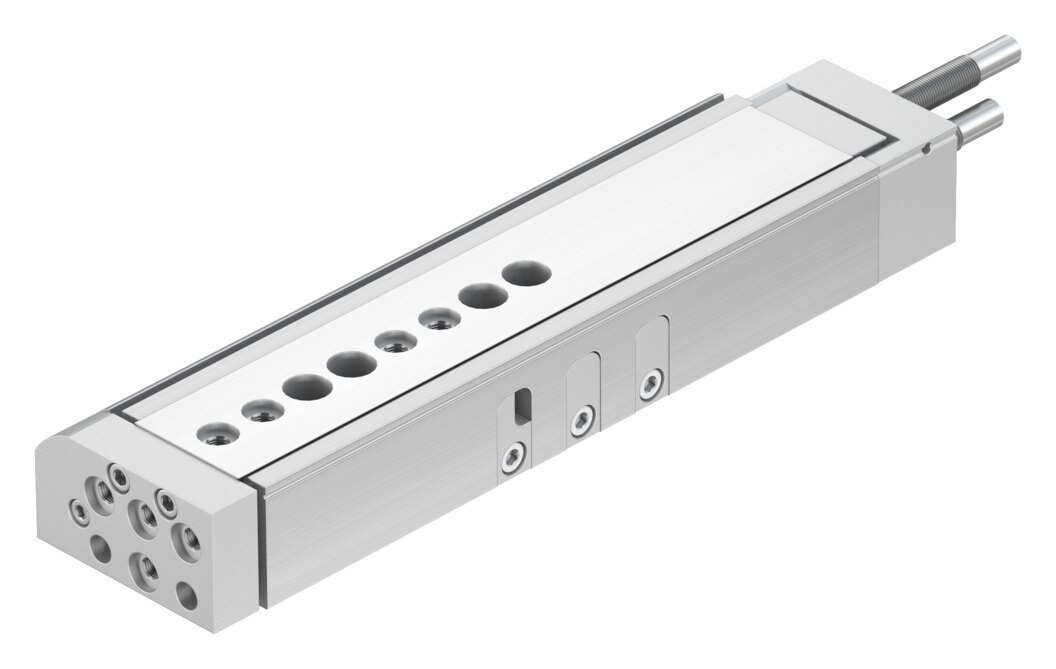

Festo DGSL-8-80-Y3A Mini slide
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-8-80-Y3A — Mini slide, drives with slides. stroke 80 mm; piston diameter 10 mm; operating pressure 0.15. 0.8 MPa (1.5. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 543941
- Type code
- DGSL-8-80-Y3A
- EAN / GTIN
- 4052568182861
- Product category
- Drives with slides
- Stroke
- 80 mm
- Adjustable end position range/length front
- 47 mm
- Adjustable end position range/length rear
- 14 mm
- Piston diameter
- 10 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Progressive shock absorber at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.5 J
- Cushioning length
- 6 mm
- Max. force Fy
- 971 N
- Max. force Fz
- 971 N
- Max. moment Mx
- 10 Nm
- Max. moment My
- 8 Nm
- Max. moment Mz
- 8 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 40 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 47 N
- Moving mass
- 185 g
- Product weight
- 464 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M3
- Carbon footprint (EPD)
- 9.4705 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568182861
- MPN 543941
Product Documentation
