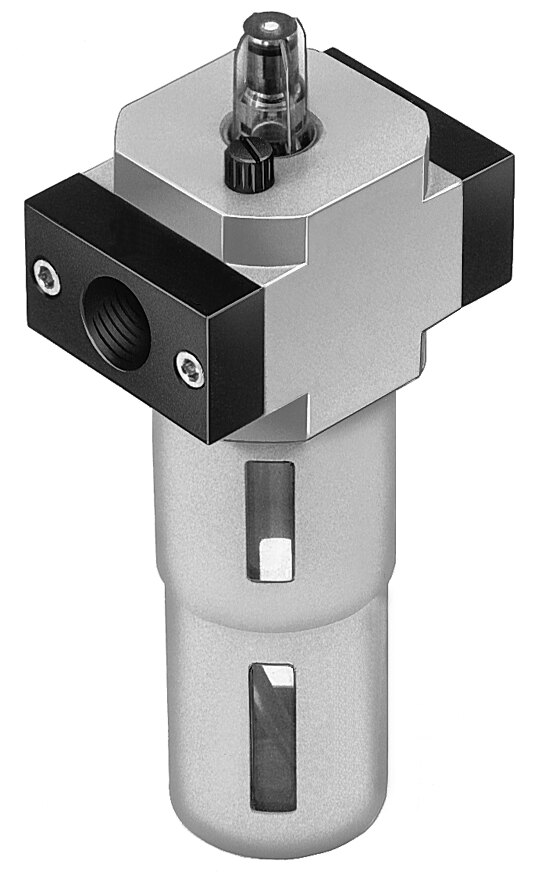

Festo LOE Lubricator Maxi - 1", LOE-1-D-MAXI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LOE Lubricator Maxi. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1", supplier type designation LOE-1-D-MAXI. Supplied under manufacturer part number 159623, EAN 4052568126773, HS code 8424.89, country of origin Hungary.
Technical Specifications
- Size
- Maxi
- Series
- D
- Mounting position
- Vertical +/-5°
- Design
- Proportional standard mist lubricator
- Max. oil capacity
- 190 cm³
- Bowl guard
- Metal bowl guard
- Symbol
- 00991532
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar) (0 ... 232 psi)
- Min. flow rate for lubricator function
- 10 l/min
- Standard nominal flow rate (standardised to DIN 1343)
- 9000 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:-]; Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1200 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1
- Pneumatic connection, port 2
- G1
- Material bowl
- Makrolon®
- EAN / GTIN
- 4052568126773
- Festo type code
- LOE-1-D-MAXI
- Festo order number
- 159623
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1"
- Carbon footprint (EPD)
- 28.3512 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84248970
- HS code
- 8424.89
- Manufacturer part number
- 159623
Standards & Compliance
- HS Code
- 8424.89
Cross References
- EAN 4052568126773
- MPN 159623
