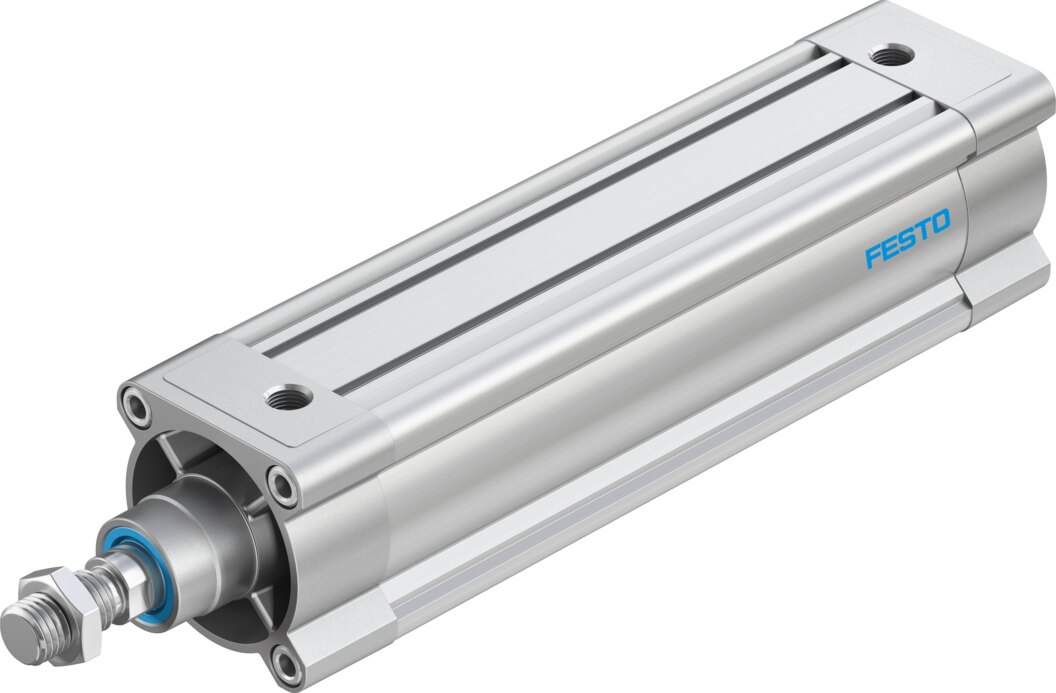

Festo DSBC Standard cylinder double-acting aluminium - 250mm, 80mm, DSBC-80-250-PPSA-N3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSBC Standard cylinder double-acting aluminium. Pneumatics VDMA air cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: stroke rate 250 mm, diameter 80 mm, supplier type designation DSBC-80-250-PPSA-N3. Supplied under manufacturer part number 1383374, EAN 4052568232122, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 250 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 ... 1.2 MPa (0.4 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.8 J
- Cushioning length
- 31 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 2721 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 3016 N
- Moving mass
- 1785 g
- Moving mass for 0 mm stroke
- 810 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 4960 g
- Basic weight for 0 mm stroke
- 2660 g
- Additional weight per 10 mm stroke
- 92 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G3/8
- Material cover
- Coated die-cast aluminium
- Material piston seal
- TPE-U(PU)
- Material piston
- Wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material piston rod wiper
- TPE-U(PU)
- Buffer seal material
- TPE-U(PU)
- Material of cushioning boss
- POM
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Material nut
- Galvanised steel
- Material bearing
- POM
- Material collar screws
- Galvanised steel
- EAN / GTIN
- 4052568232122
- Festo type code
- DSBC-80-250-PPSA-N3
- Festo order number
- 1383374
- Product type
- Pneumatics VDMA air cylinder
- Product group
- Pneumatics
- Port Size
- 3/8"
- Carbon footprint (EPD)
- 86.8873 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 1383374
