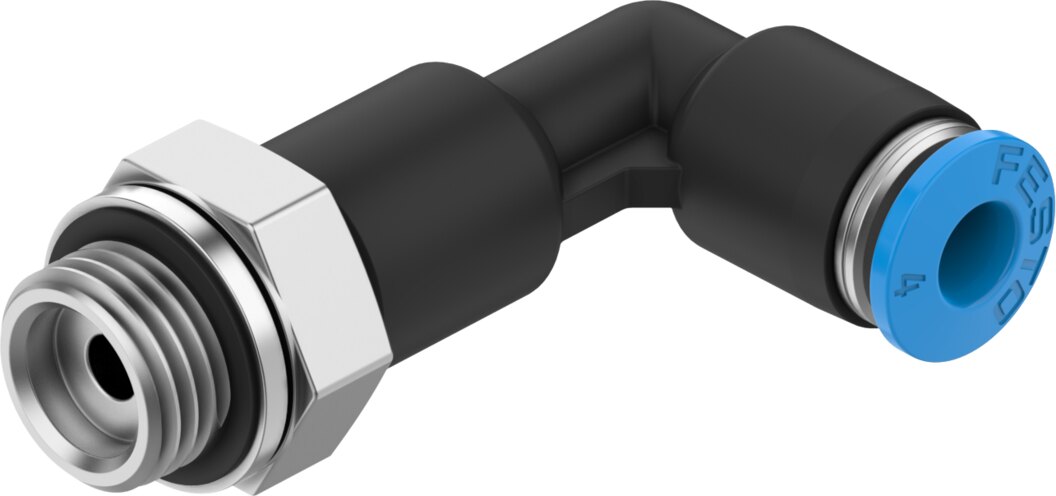

Festo QSLL Elbow fitting long composite BSPP nipple - 6mm, 1/8", QSLL-G1/8-6
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSLL Elbow fitting long composite BSPP nipple. Insertions C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 6 mm, thread 1/8", supplier type designation QSLL-G1/8-6. Supplied under manufacturer part number 186128, EAN 4052568039332, HS code 7412.20, country of origin Taiwan.
Technical Specifications
- Size
- Standard
- Nominal size
- 4.3 mm
- Tubing insertion depth
- 17 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- L-shape, long (Push-pull principle)
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at max. 50°C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible; Water: G-thread only possible with sealing ring type OL as additional accessory
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Nominal torque
- 5.4 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 15 g
- Type of mounting
- External hex SW13
- Pneumatic connection, port 1
- Male thread G1/8
- Pneumatic connection, port 2
- For tubing outside diameter of 6 mm
- Colour of release ring
- Blue
- Material screwed plug
- Nickel-plated brass
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568039332
- Festo type code
- QSLL-G1/8-6
- Festo order number
- 186128
- Product type
- Insertions C
- Product group
- Pneumatics
- Outer hose diameter
- 6 mm
- Thread
- 1/8"
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.1126 kg CO2e per pcs
- Country of origin
- Taiwan
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 186128
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568039332
- MPN 186128
Product Documentation
