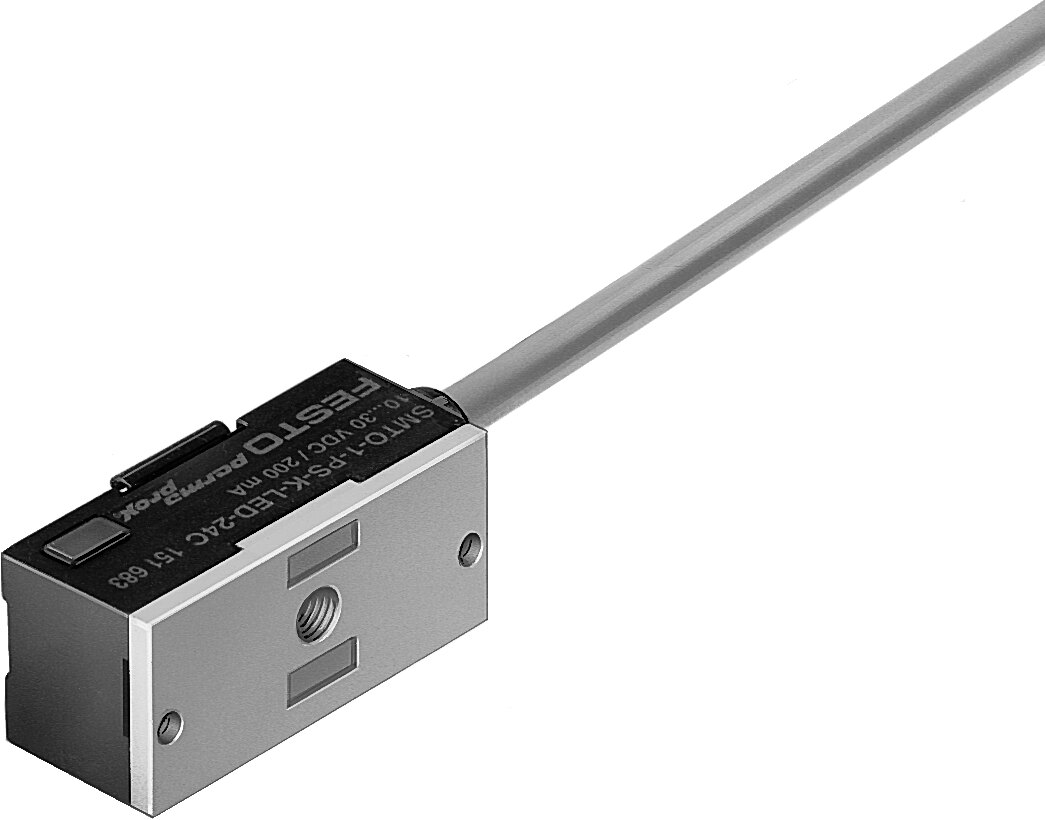

Festo SMTO Cylinder sensor - SMTO-1-PS-K-LED-24-C
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SMTO Cylinder sensor. Pneumatic reed contacts/cables/brackets (Technique / Pneumatics / Pneumatic Cylinders). Principal data: supplier type designation SMTO-1-PS-K-LED-24-C. Supplied under manufacturer part number 151683, EAN 4052568117030, HS code 8536.50, country of origin Germany.
Technical Specifications
- Design
- Block design
- Based on standard
- EN 60947-5-2
- Symbol
- 00991152
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -25 ... 70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N/O contact
- Hysteresis
- 0.1 ... 1.5 mm
- Switch-on time
- 1 ms
- Switch-off time
- 1 ms
- Max. switching frequency
- 1000 Hz
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 3 V
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Off-state current
- 0.01 mA
- Short circuit current rating
- Pulsed
- Overload protection
- Available
- Operational voltage range DC
- 10 ... 30 V
- Residual ripple
- 10%
- Reverse polarity protection
- For all electrical connections
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connector system
- Open end
- Electrical connection 1, number of connections/cores
- 3
- Connection outlet orientation
- In-line
- Cable length
- 2.5 m
- Cable characteristic
- Standard
- Cable sheath colour
- Grey
- Material cable sheath
- PVC
- Material insulating sheath
- PVC
- Wire ends
- Wire ferrule
- Type of mounting
- With accessories
- Mounting position
- Any
- Product weight
- 85 g
- Housing colour
- Black
- Material housing
- PET; Die-cast zinc
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 70 °C
- Degree of protection
- IP67
- LABS (PWIS) conformity
- VDMA24364-B2-L
- EAN / GTIN
- 4052568117030
- Festo type code
- SMTO-1-PS-K-LED-24-C
- Festo order number
- 151683
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.6034 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
- Manufacturer part number
- 151683
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568117030
- MPN 151683
Product Documentation
