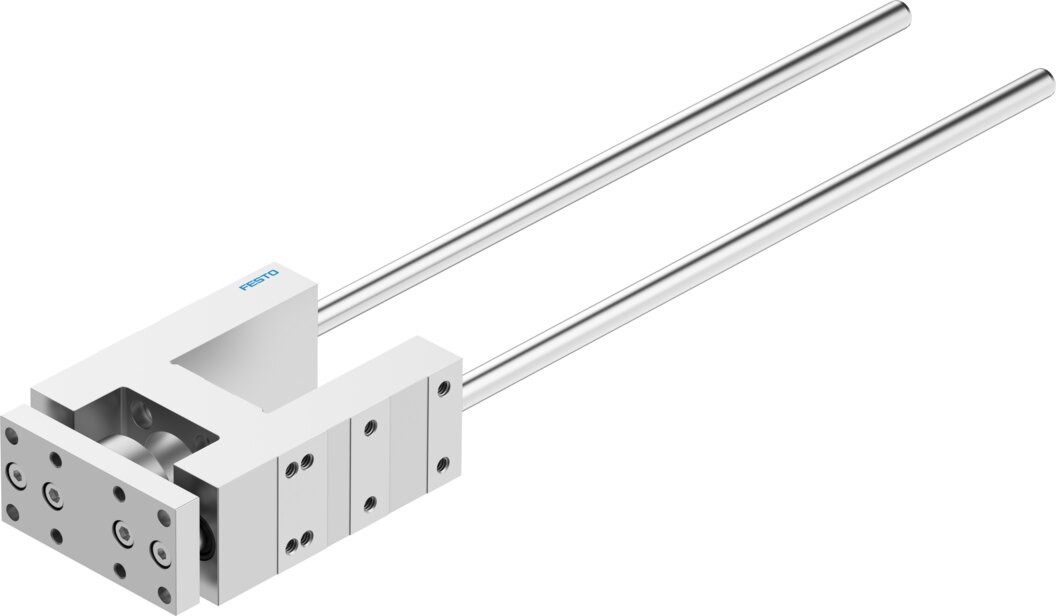

Festo FENG Guide Unit - FENG-32-320-KF
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo FENG Guide Unit. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: supplier type designation FENG-32-320-KF. Supplied under manufacturer part number 34497, EAN 4052568115258, HS code 8412.90, country of origin Hungary.
Technical Specifications
- Size
- 32
- Stroke
- 320 mm
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Explosion protection
- The information in the certificate must be observed!
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 ... 80 °C
- Max. force Fy
- 750 N
- Max. force Fy static
- 1020 N
- Max. force Fz
- 750 N
- Max. force Fz static
- 1020 N
- Max. moment Mx
- 28 Nm
- Max. torque Mx static
- 38 Nm
- Max. moment My
- 34 Nm
- Max. torque My static
- 46 Nm
- Max. moment Mz
- 34 Nm
- Max. torque Mz static
- 46 Nm
- Displacement force
- 15 N
- Product weight
- 2106 g
- Type of mounting
- With female thread
- Material guide component
- Tempered steel
- Material housing
- Anodised wrought aluminium alloy
- Material yoke plate
- Anodised wrought aluminium alloy
- EAN / GTIN
- 4052568115258
- Festo type code
- FENG-32-320-KF
- Festo order number
- 34497
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 38.3212 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84129070
- HS code
- 8412.90
- Manufacturer part number
- 34497
Standards & Compliance
- HS Code
- 8412.90
Cross References
- EAN 4052568115258
- MPN 34497
