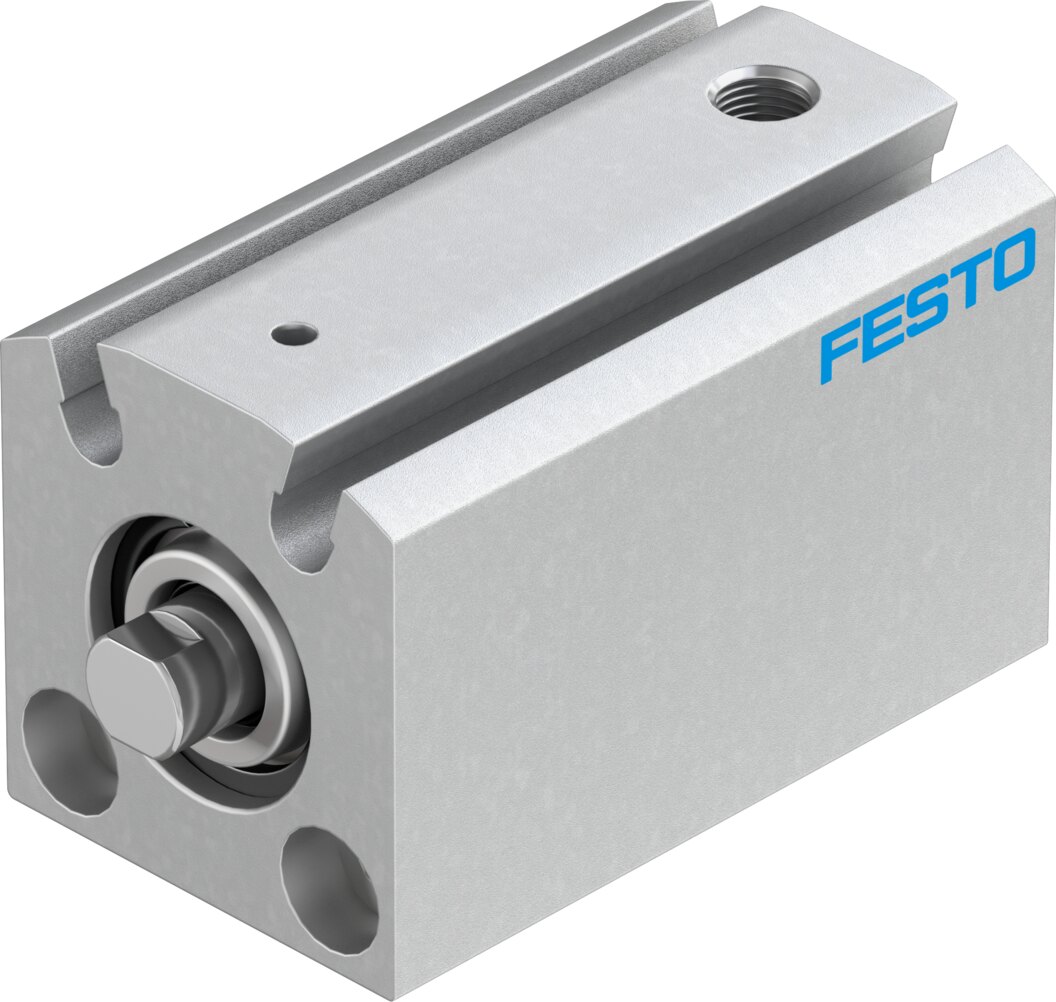

Festo AEVC Short stroke cylinder - 12mm, M5, 10mm, AEVC-12-10-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo AEVC Short stroke cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 12 mm, port size M5, stroke rate 10 mm, supplier type designation AEVC-12-10-P-A. Supplied under manufacturer part number 530571, EAN 4052568085858, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 12 mm
- Spring return force with retracted piston rod
- 4 N
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Pushing; Single-acting
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991729
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar) (21.75 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 59.3 N
- Moving mass
- 9.5 g
- Product weight
- 63 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy; anodised
- Material seals
- TPE-U(PU)
- Material housing
- anodised
- Material piston rod
- High-alloy steel
- EAN / GTIN
- 4052568085858
- Festo type code
- AEVC-12-10-P-A
- Festo order number
- 530571
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 1.2814 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 530571
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568085858
- MPN 530571
