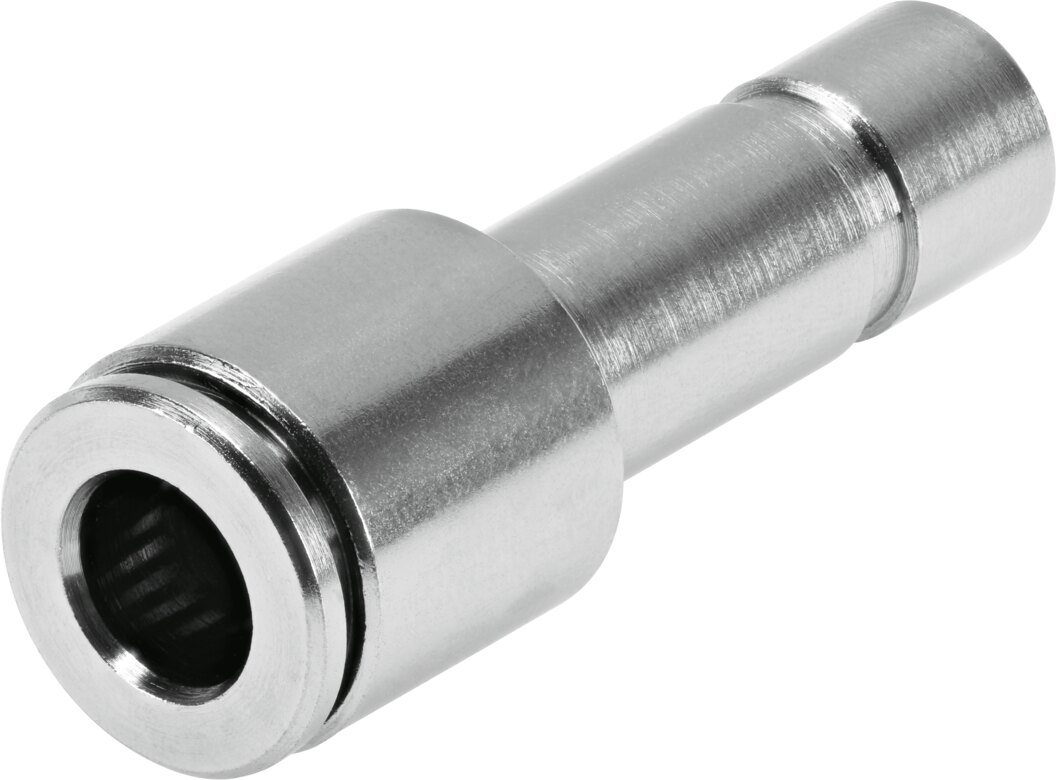

Festo NPQH-D Connector nickel-plated brass - 10mm, 4mm, NPQH-D-S10-Q4-P10
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-D Connector nickel-plated brass. Collectors Push-in (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 10 mm, outer hose diameter 2 4 mm, supplier type designation NPQH-D-S10-Q4-P10. Supplied under manufacturer part number 578307, EAN 4052568060107, HS code 7412.20, country of origin Italy.
Technical Specifications
- Size
- Standard
- Nominal size
- 3.5 mm
- Tubing insertion depth
- 13 mm
- Mounting position
- Any
- Design
- Straight design (Push-pull principle)
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar) (-13.775 ... 290 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Product weight
- 15.4 g
- Pneumatic connection, port 1
- Push-in sleeve Ø 10 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 4 mm
- Colour of release ring
- Silver
- Material housing
- Brass, chemically nickel-plated
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- EAN / GTIN
- 4052568060107
- Festo type code
- NPQH-D-S10-Q4-P10
- Festo order number
- 578307
- Product type
- Collectors Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 10 mm
- Outer hose diameter 2
- 4 mm
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.1260 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 578307
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568060107
- MPN 578307
