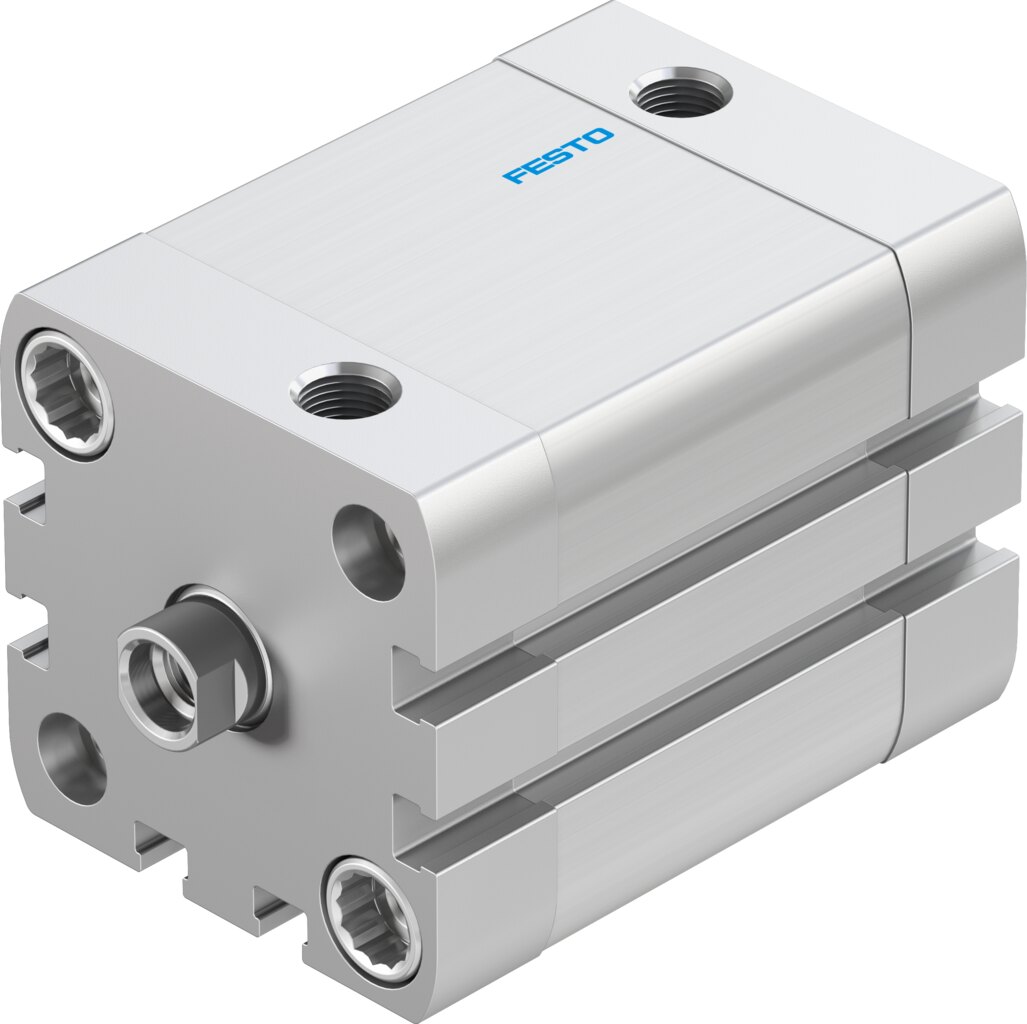

Festo ADN Compact cylinder - 40mm, G1/8, 30mm, ADN-40-30-I-PPS-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 40 mm, port size G1/8, stroke rate 30 mm, supplier type designation ADN-40-30-I-PPS-A. Supplied under manufacturer part number 572668, EAN 4052568218898, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M8
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Female thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.7 J
- Cushioning length
- 5 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 686 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 754 N
- Moving mass
- 115 g
- Product weight
- 461 g
- Type of mounting
- With through-hole; With female thread; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568218898
- Festo type code
- ADN-40-30-I-PPS-A
- Festo order number
- 572668
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 8.8887 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 572668
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568218898
- MPN 572668
