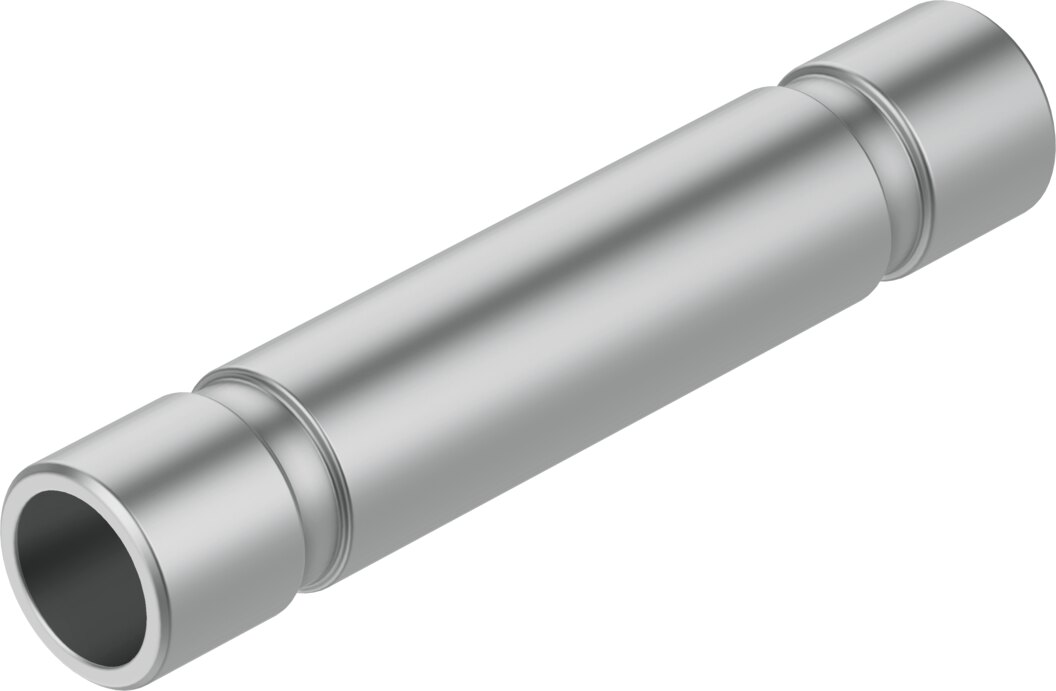

Festo NPQH-D Insert Pin nickel-plated brass - 12mm, 12mm, NPQH-D-S12-E-P10
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-D Insert Pin nickel-plated brass. Insert Push-in (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 12 mm, outer hose diameter 2 12 mm, supplier type designation NPQH-D-S12-E-P10. Supplied under manufacturer part number 578321, EAN 4052568060244, HS code 7412.20, country of origin Italy.
Technical Specifications
- Size
- Standard
- Nominal size
- 10 mm
- Mounting position
- Any
- Design
- Straight design
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar) (-13.775 ... 290 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Element installed statically, no meaningful evaluation possible according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Product weight
- 16.1 g
- Pneumatic connection, port 1
- Push-in sleeve Ø 12 mm
- Pneumatic connection, port 2
- Push-in sleeve Ø 12 mm
- Material housing
- Brass, chemically nickel-plated
- EAN / GTIN
- 4052568060244
- Festo type code
- NPQH-D-S12-E-P10
- Festo order number
- 578321
- Product type
- Insert Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 12 mm
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.1115 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
- Manufacturer part number
- 578321
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568060244
- MPN 578321
Product Documentation
