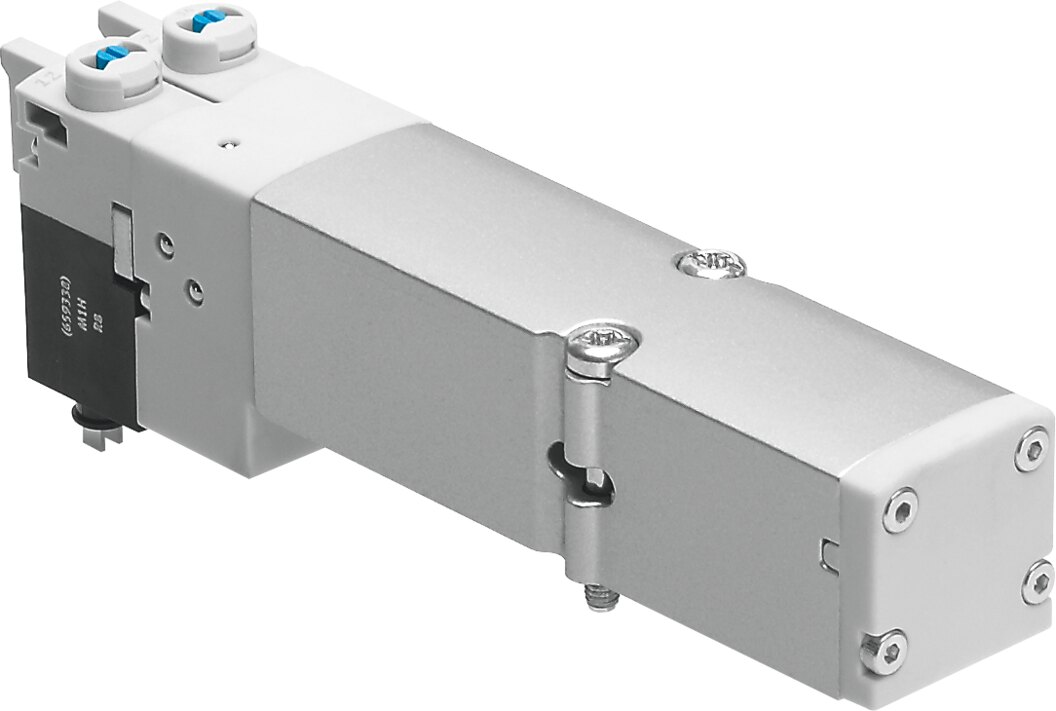

Festo VMPA2 Solenoid Valve - El, Spring, VMPA2-M1H-K-PI
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMPA2 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Spring, supplier type designation VMPA2-M1H-K-PI. Supplied under manufacturer part number 537957, EAN 4052568174835, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 2x3/2 closed monostable
- Type of actuation
- Electrical
- Valve size
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 500 ... 550 l/min
- Operating voltage
- 24 V DC
- Operating pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65; To IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Flow direction
- Non-reversible
- Symbol
- 00991809
- lap
- Overlap
- Signal status display
- Yes
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Suitability for vacuum
- No
- Note on standard nominal flow rate
- MPA-L: 550 l/min; MPA-S: 500 l/min
- Standard nominal flow rate with QS-8
- 500 l/min
- Standard nominal flow rate with QS-10
- 550 l/min
- Switching time off
- 28 ms
- Switching time on
- 8 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Permissible voltage fluctuations
- +/-25%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Relative air humidity
- Max. 90% at 40 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 0.65 Nm
- Product weight
- 100 g
- Type of mounting
- With through-hole
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568174835
- Festo type code
- VMPA2-M1H-K-PI
- Festo order number
- 537957
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 1.3888 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 537957
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568174835
- MPN 537957
