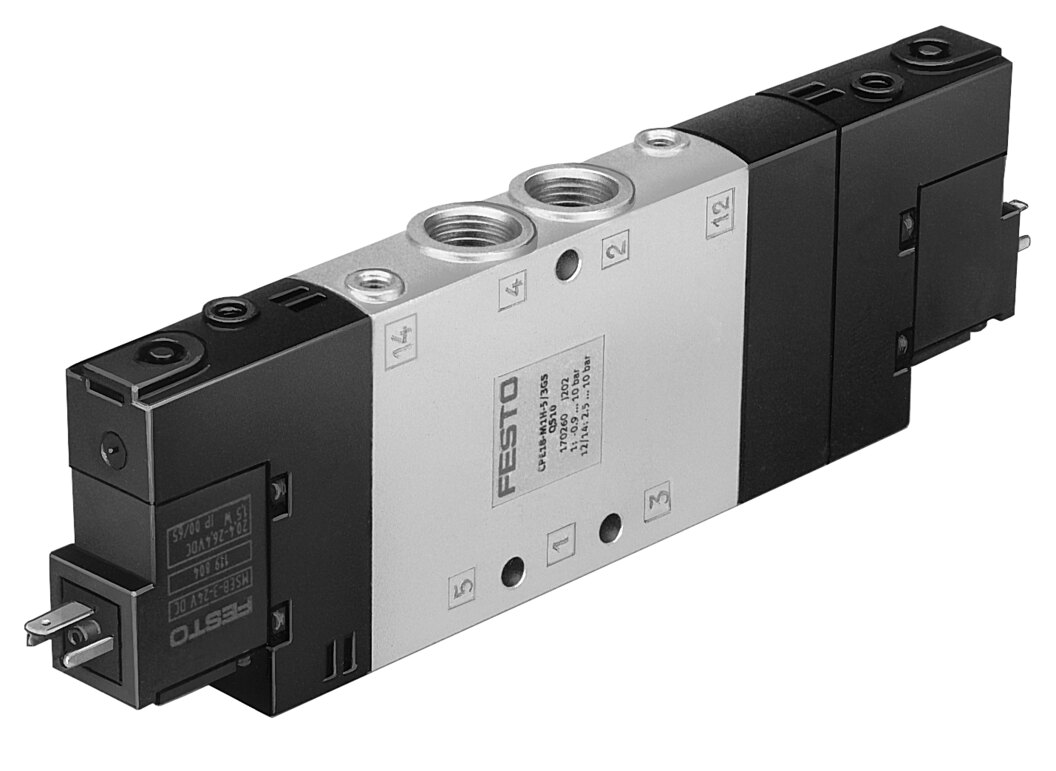

Festo CPE18 Solenoid Valve - G1/4", El, Spring, CPE18-M1H-5/3GS-1/4
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE18 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/4", activation El, return Spring, supplier type designation CPE18-M1H-5/3GS-1/4. Supplied under manufacturer part number 170248, EAN 4052568137861, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/3-way, closed
- Type of actuation
- Electrical
- Construction width
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1450 l/min
- pneumatic working port
- G1/4
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65; With plug socket; To IEC 60529
- Nominal size
- 8 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991020
- Valve position code
- Label holder
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 38 ms
- Switching time on
- 20 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse with 1 signal
- 3100 µs
- Characteristic coil data
- 24 V DC: 1.5 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 280 g
- Electrical connection
- Type C
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568137861
- Festo type code
- CPE18-M1H-5/3GS-1/4
- Festo order number
- 170248
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 5.9315 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 170248
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568137861
- MPN 170248
Product Documentation
More from Festo
Festo

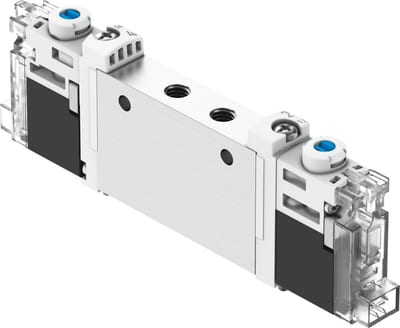

Festo VUVG-L10 Solenoid Valve closed 5/3 24V DC - M7", El, Mechanical spring, VUVG-L10-P53C-T-M7-1H2L-F1A
8164349
Festo

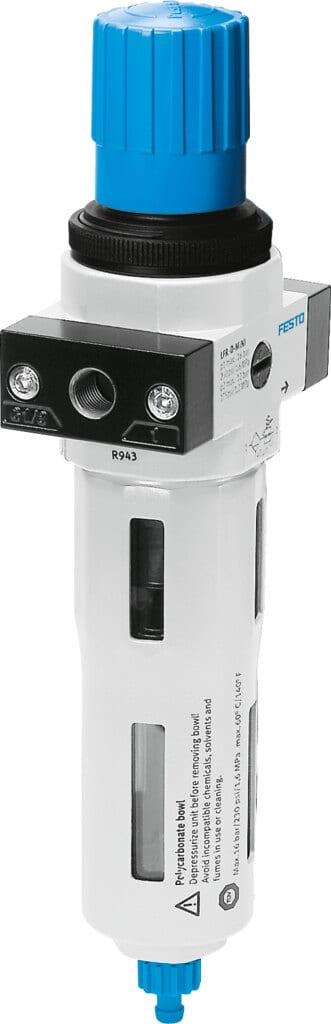

Festo LFR Filter controller Midi automatic - 3/4", 0,5 - 7bar, 40MY, LFR-3/4-D-7-O-MIDI-A
192606
Festo

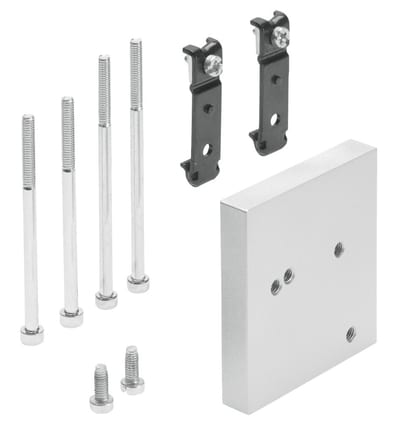

Festo VAME DIN Rail Bracket - VAME-P1-T
542255
Festo

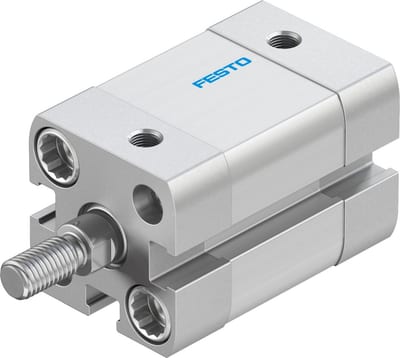

Festo ADN Compact cylinder double-acting - 16mm, 6mm, M5, 10mm, ADN-16-10-A-P-A
536220
Festo

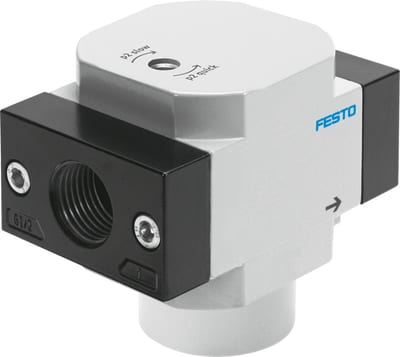

Festo HEL Inflation valve Midi - 3/4", Pneumatic, Spring, HEL, HEL-3/4-D-MIDI
165081
Festo

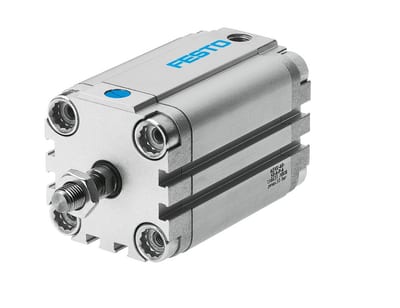

Festo AEVU Compact cylinder - 50mm, G1/8, 10mm, AEVU-50-10-A-P-A
157006
Festo
Festo VL Pneumatic valve - G1/8", Air, Spring, VL-5/3B-1/8-B
4052568114459
Festo

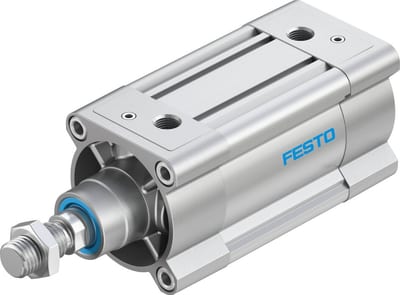

Festo DSBC Standard cylinder double-acting aluminium - 60mm, 80mm, DSBC-80-60-PPVA-N3
