Festo ADVU Compact cylinder - 40mm, G1/8, 5mm, ADVU-40-5-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADVU Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 40 mm, port size G1/8, stroke rate 5 mm, supplier type designation ADVU-40-5-P-A. Supplied under manufacturer part number 156540, EAN 4052568118044, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M6
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston-rod end
- Female thread
- Design
- Piston; Piston rod
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.08 ... 1 MPa (0.8 ... 10 bar) (11.6 ... 145 psi)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.52 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 686 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 754 N
- Moving mass for 0 mm stroke
- 63 g
- Additional moving mass per 10 mm stroke
- 9 g
- Basic weight for 0 mm stroke
- 433 g
- Additional weight per 10 mm stroke
- 59 g
- Type of mounting
- With through-hole; With accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Galvanised steel
- Material cover
- Wrought aluminium alloy
- Material dynamic seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy
- EAN / GTIN
- 4052568118044
- Festo type code
- ADVU-40-5-P-A
- Festo order number
- 156540
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 5.9355 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 156540
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568118044
- MPN 156540
Product Documentation
More from Festo
Festo
Festo VABM P-Battery Rail - 3/4", VABM-B10-30-G34-9-P53
8026345
Festo
Festo VUVG-L14 Solenoid Valve 5/3 24V DC - G1/8", El, Spring, VUVG-L14-P53C-T-G18-1R8L
574231
Festo
Festo DSBC Standard cylinder double-acting aluminium - 70mm, 63mm, DSBC-63-70-PPSA-N3
2126687
Festo
Festo NPQH-D Connector nickel-plated brass - 12mm, 8mm, NPQH-D-Q12-Q8-P10
578331
Festo
Festo HE-D-MIDI Inflation valve - HE-1/2-D-MIDI
162810
Festo
Festo CLR Linear Swing Clamp - 25mm, M5, CLR-25-20-R-P-A
535445
Festo
Festo ADN Compact cylinder - 80mm, G1/8, 10mm, ADN-80-10-I-PPS-A
572718
Festo

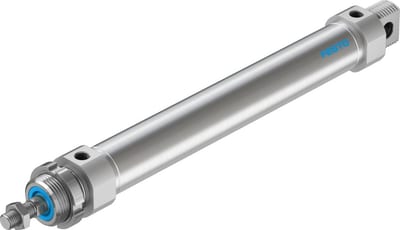

Festo DSNU Round cylinder double-acting - 32mm, G1/8", 200mm, DSNU-32-200-PPS-A
