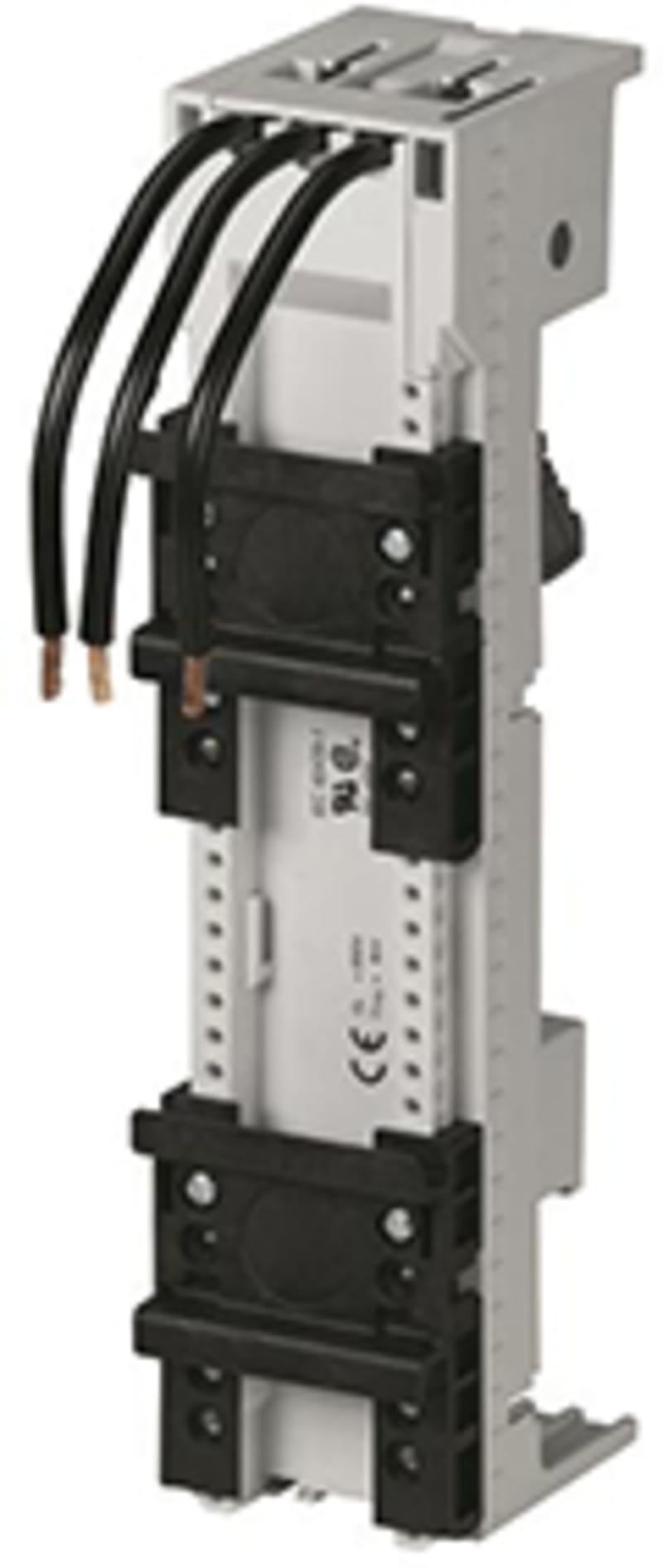

Busbaradapter (BBA0C-16)

Eaton Busbaradapter (BBA0C-16) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 4 pcs; Eaton catalogue number: 101455; Depth: 200 mm; Height: 63 mm; Width: 45 mm.

Manufacturer part number (MPN)

BBA0C-16

EAN / GTIN

4015081013753

Sales unit

pcs

Package quantity

4 pcs

Eaton catalogue number

101455

Depth

200 mm

Height

63 mm

Width

45 mm

Weight

0.28 kg

Certifications

CE; IEC60439-1; CSA-C22.2 No. 14; UL File No.: E300273; UL 508A; Certified by UL for use in Canada; UL Category Control No.: NMTR; NMTR7; UL; UL 508

Catalog Notes

This item can only be ordered until December 31, 2023 with a maximum delivery date of May 31, 2024.

Special features

Terminal capacity: 2.5 mm² (AWG 14)

Nominal current

16 A

Type

Busbar adapter SASY Busbar system 60 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent Pvid

0.8 W

Electric connection type

Round conductor

Rated operation current (Ie)

16 A

Voltage rating (UL CSA 13)

600 V AC, UL/CSA

Voltage rating at AC

690 V

Adapter width

45 mm

Busbar distance

60 mm

Busbar thickness - max

10 mm

Busbar thickness - min

5 mm

Mounting rail armament

2 mounting rails

Number of DIN rails

2

Rail width

35 mm

Type of electric connection

Round conductor

Rated current In

16 A

Min. busbar thickness

5 mm

Max. busbar thickness

10 mm

Width of the adaptor

45 mm

Country of origin

Germany

HS Code

8536.90
