Contactor,DILA-31(230V50HZ,240V60HZ) (DILA-31(230V50HZ,240V60HZ)-PI)

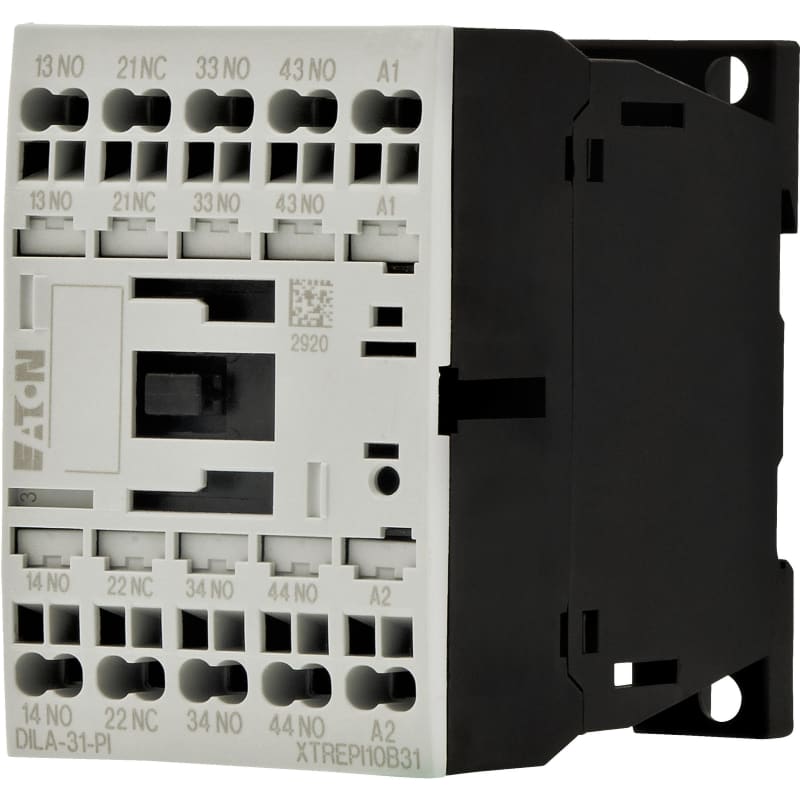

Eaton DILA-31(230V50HZ,240V60HZ)-PI Contactor, 230 V 50 Hz, 240 V 60 Hz, 3 N/O, 1 NC, Push in terminals, AC drift.

Manufacturer part number (MPN)

DILA-31(230V50HZ,240V60HZ)-PI

EAN / GTIN

4015081972937

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199209

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.227 kg

Certifications

VDE 0660; IEC/EN 60947; EN 60947-5-1; CSA File No.: 012528; CSA Class No.: 3211-03; UL File No.: E29184; UL 508; CSA-C22.2 No. 14-05; CE marking; UL Category Control No.: NKCR; UL; CSA

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Code number

31E

Control circuit reliability

λ < 5 x 10-7 (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA); λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

3

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

3

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

1.5 A

Rated operational voltage (Ue) at AC - max

690 V

Safe isolation

400 V AC, Between coil and auxiliary contacts, According to EN 61140; 400 V AC, Between auxiliary contacts, According to EN 61140

Short-circuit protection rating without welding

10 A gG/gL, 500 V, Max. Fuse, Contacts

Switching capacity (auxiliary contacts, general use)

15 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Features

Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module

Fitted with

Positive operation contacts

Application

Contactor relays

Connection

Push in terminals

Degree of protection

IP20

Lifespan, mechanical

20,000,000 Operations (AC operated)

Mounting method

DIN-rail/screw

Operating frequency

9000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

DILA relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Voltage type

AC

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc (voltage tolerance - single-voltage coil 50 Hz and dual-voltage coil 50 Hz, 60 Hz)

Power consumption, pick-up, 50 Hz

24 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Power consumption, pick-up, 60 Hz

24 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Power consumption, sealing, 50 Hz

1.4 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz; 3.4 VA, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Power consumption, sealing, 60 Hz

1.4 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

240 V

Switching time (AC operated, make contacts, closing delay) - max

21 ms

Switching time (AC operated, make contacts, closing delay) - min

15 ms

Switching time (AC operated, make contacts, opening delay) - max

18 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

Screwdriver size

3.0 x 0.5 mm, Terminal screw

Stripping length (main cable)

10 mm

Terminal capacity (flexible with ferrule)

2 x (0.5 - 1.5) mm²; 1 x (0.5 - 2.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

20 - 14

Terminal capacity (flexible)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

HS Code

8536.90

• EAN 4015081972937
• SAP 1200693335
• Code 83537182
