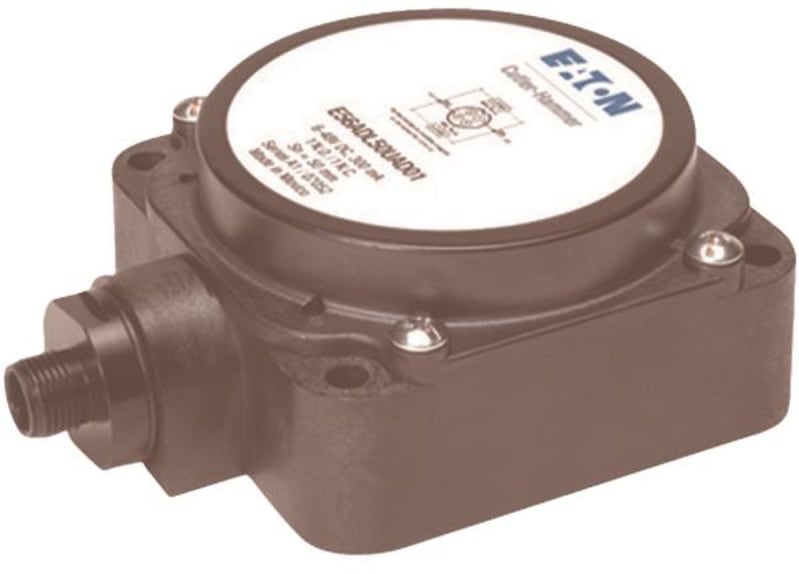

Area switch E56ADL40UAD01

Eaton E56ADL40UAD01 Area switch, inductive, 1N/O+1N/C, Sn=40mm, 4L, 6-48VDC, NPN, PNP, kubikk 80mm, M12.

Manufacturer part number (MPN)

E56ADL40UAD01

EAN / GTIN

4015081330287

Sales unit

pcs

Eaton catalogue number

136235

Depth

101.6 mm

Height

38.1 mm

Width

114.3 mm

Weight

0.45 kg

Certifications

CE; Certified by UL for use in Canada; CSA-C22.2 No. 14; UL 508; UL File No.: E166051; UL; UL Category Control No.: NRKH

NRKH7; CSA File No.

UL report applies to both US and Canada; IEC/EN 60947-5-2

Type

Inductive sensor

Electric connection type

Plug-in connection

Enclosure material finishing

Other

Surface finishing

PPS

Actuation type

Metallic Target

Enclosure material

Plastic

Enclosure type

Cuboid

Category (EN 954-1)

B

Explosion safety category for dust

None

Explosion safety category for gas

None

Safety performance level (EN ISO 13849-1)

None

SIL (IEC 61508)

None

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Number of contact energized outputs with signalling function

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

1

Operational current (Ib) in the switched state at 24 V DC

25 A

Functions

Protection against polarity reversal; Short-circuit protection

Voltage type

DC

Mounting method

Non-flush mounting

Material

Insulated material

Connection type

Plug-in connection M12 x 1; 4-wire

Installation type

Not flat

Degree of protection

IP67; NEMA 4X, 6, 13

Interface type

None

LED indicator

Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED

Switch function type

Anticoincidence

Load current

1 - 300 mA (Ie)

Residual current

0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)

Switching frequency

100 Hz

Voltage rating - max

48 V

Width sensor

79 mm

Product category

E56 Pancake Series

Switching output type

NPN

Temperature drift of sn

10 %

Rated control supply voltage (Us) at DC - max

48 V

Rated control supply voltage (Us) at DC - min

6 V

Rated switching distance (Sn) - max

40 mm

Repeatability

2 %

Sensor height

39 mm

Sensor length

79 mm

Supply voltage - max

48 V

Supply voltage - min

6 V

Switching hysteresis of Sn

15 %

Voltage drop (Ud)

2.5 V

Height of sensor

39 mm

Length of sensor

79 mm

Mechanical mounting condition for sensor

Not flat

Switching distance

40 mm

Suitable for safety functions

No

Type of switch function

Anticoincidence

Type of switching output

PNP/NPN

Type of electric connection

Connector M12

Number of semiconductor outputs with signalling function

1

Type of actuation

Metallic Target

Type of interface

None

Type of interface for safety communication

None

Construction type housing

Cuboid

Cascadable

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Supply voltage

6–48 V

Rated control supply voltage DC

6–48 V

With monitoring function downstream switching devices

No

Housing material

Plastic

Compression-resistant

No

Country of origin

Mexico

HS Code

8536.50
