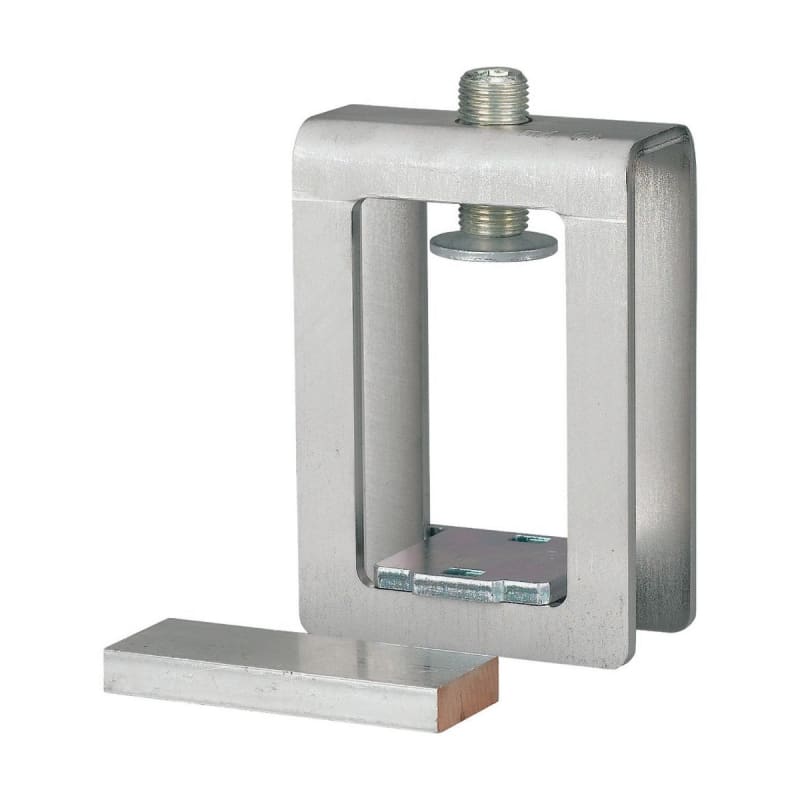

Profile Terminal 41X20-42
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Profile Terminal 41X20-42 (part number AKP800) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 3 pcs; Eaton catalogue number: 107198; Depth: 72 mm; Height: 118 mm; Width: 45 mm.
Technical Specifications
- Manufacturer part number (MPN)
- AKP800
- EAN / GTIN
- 4015081069613
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Eaton catalogue number
- 107198
- Depth
- 72 mm
- Height
- 118 mm
- Width
- 45 mm
- Weight
- 0.66 kg
- Compliances
- UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- North America (UL listed, CSA certified); CE marking; CSA-C22.2 No. 14; CSA (Class No. 3211-37); UL (Category Control Number NMTR2, NMTR8); UL (File No. E307559); IEC 60439-1; CSA (File No. 236217); UL508A
- Functions
- Current limiting circuit breaker, refer to approbation report; Connections; Profile terminal
- Special features
- Termination to busbars without drilling Put a spacer between the laminated copper busbars when connecting in parallel
- Suitable for
- Strip conductor connection; T-rail
- Used with
- Feeder circuits; Double T profile; Connection; 185 mm system; 60 mm system
- Type
- 185 mm system 60 mm system Connection
- Rated operation current (Ie)
- 1600 A
- Rated operational current
- 1600 A
- Rated operational current (Ie) - max
- 1600 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar thickness - max
- 40 mm
- Busbar thickness - min
- 40 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 30 mm
- Conductor cross section - max
- 800 mm²
- Degree of protection
- UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking; Feeder circuits
- Terminal capacity (conductor)
- 800 mm² (Cu band); 20 mm - 42 mm (41x)
- Width clamp
- 72 mm
- Max. conductor cross section
- 800 mm²
- Busbar thickness
- 40 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- No
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 1600 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069613
- SAP 1200607347
- Code 82995646
