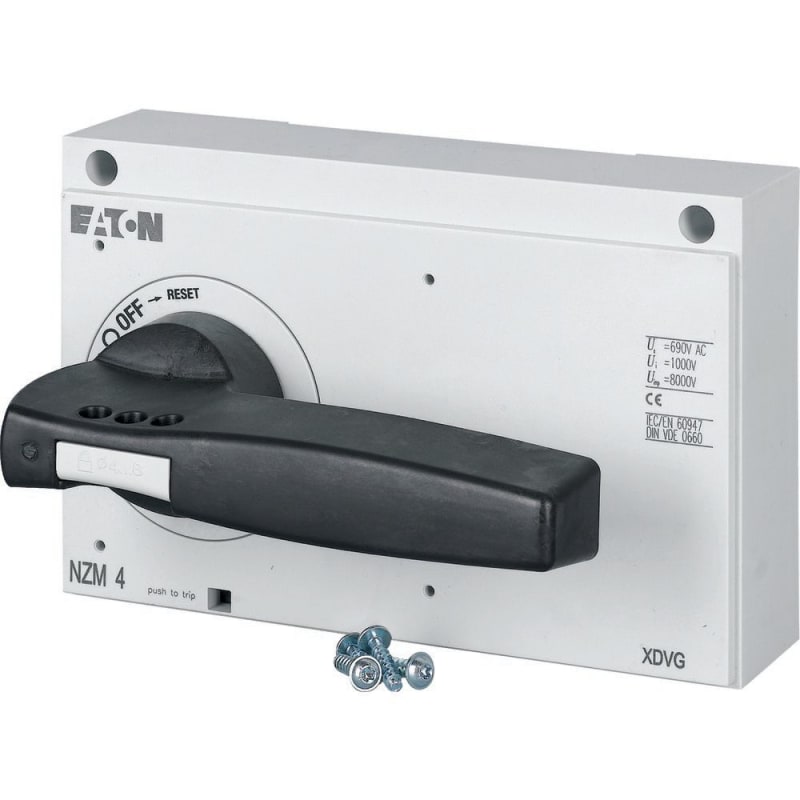

Eaton Rotary handle NZM4 lockable

Eaton NZM4-XDVG Rotary handle NZM4 lockable.

Manufacturer part number (MPN)

NZM4-XDVG

EAN / GTIN

4015081622368

Sales unit

pcs

Eaton catalogue number

165718

Depth

130 mm

Height

135 mm

Width

210 mm

Weight

1.193 kg

Compliances

IEC; UL/CSA; RoHS conform

Certifications

UL489; UL (File No. E140305); CE marking; CSA (Class No. 1437-01); IEC60947; UL listed; CSA (File No. 22086); UL (Category Control Number DIHS); CSA-C22.2 No. 5-09; CSA certified

Features

Lockable; Standard: black / gray

Fitted with

Padlock; Extension shaft

Frame

NZM4

Special features

Complete with rotary drive Cannot be combined with insulating surround Makes it possible to operate the switch with a rotational movement and provides locking facilities

Suitable for

Switch disconnector; Power circuit breaker

Type

Rotary handle on circuit-breaker

Used with

NZM4(-4), N(S)4(-4)

Activation type

Rotary handle

Color

Black

Degree of protection / NEMA enclosure type

IP20; 4X. 12

Locking facility

Lockable on the 0 position on the handle using up to 3 padlocks

Colour

Black

Lockable

Yes

Padlock locking

Yes

Suitable for emergency stop

No

With extension shaft

Yes

With restart blockage

No

Suitable for power circuit breaker

Yes

Suitable for switch disconnector

Yes

Degree of protection (NEMA)

4X, 12

With key lock

No

Country of origin

Germany

HS Code

8538.90
