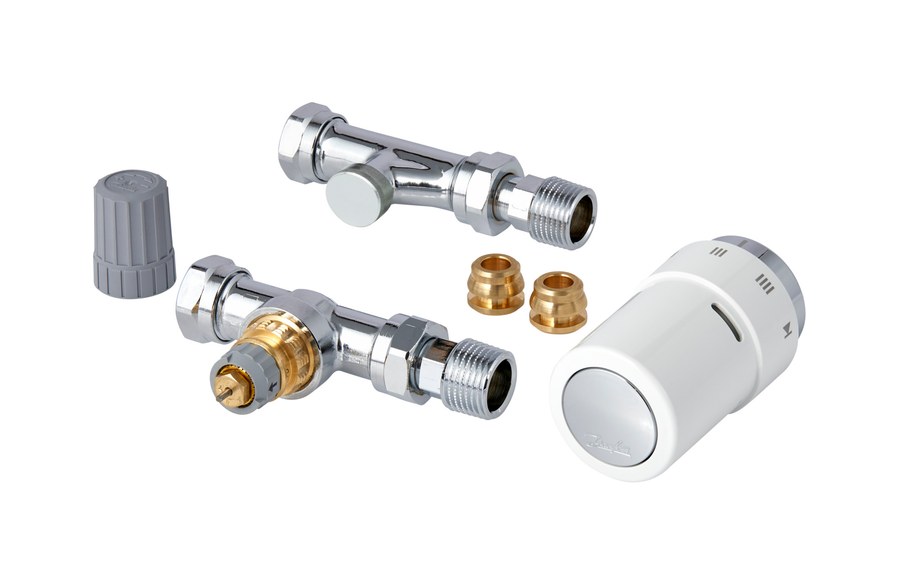

Danfoss RAS-D2 Radiator Pack radiator valve set (TRV set) — Straight 10/15 mm, 3-Elements, RAS-D2 sensor (013G6019)

Danfoss RAS-D2 Radiator Pack thermostatic radiator valve set (TRV set), OEM order code 013G6019 — a matched 3-elements package for a single radiator: Includes RAS-D2 sensor, RA-FS 15 mm bi-directional straight valve, lockshield valve, 10/15 mm fittings and Allen key for fixing sensor. Straight pattern, valve size 10/15 mm. The RAS-D2 sensor is liquid-charged and self-acting (setting range 8–28 °C, no power or wiring); the RLV-D return/lockshield valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G6019). OEM P/N 013G6019, EAN 5702420063492. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

013G6019

Brand

Danfoss

Type

RAS-D2 Radiator Pack

Product group

TRV set

Set contents

3-elements — Includes RAS-D2 sensor, RA-FS 15 mm bi-directional straight valve, lockshield valve, 10/15 mm fittings and Allen key for fixing sensor

Design

Straight

Valve size

10/15 mm

Valve type

Bi-directional (RA-FS)

Lockshield / return valve type

RLV-D

Sensor-to-valve connection

RA

Sensor design

RAS-D2 (liquid-charged, self-acting)

Sensor temperature setting range

8 °C to 28 °C

Sensor response time

24 min

Zero-blocking (positive shut-off)

Yes

Tailpiece

Chrome-plated

Colour

Chrome / White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.506 kg

EAN

5702420063492

HS code

8481.80 (taps, cocks, valves)

Material

Nickel-plated brass valve body; liquid-charged polymer thermostatic sensor

Temperature Range

sensor setting 8 °C to 28 °C

HS Code

8481.80
