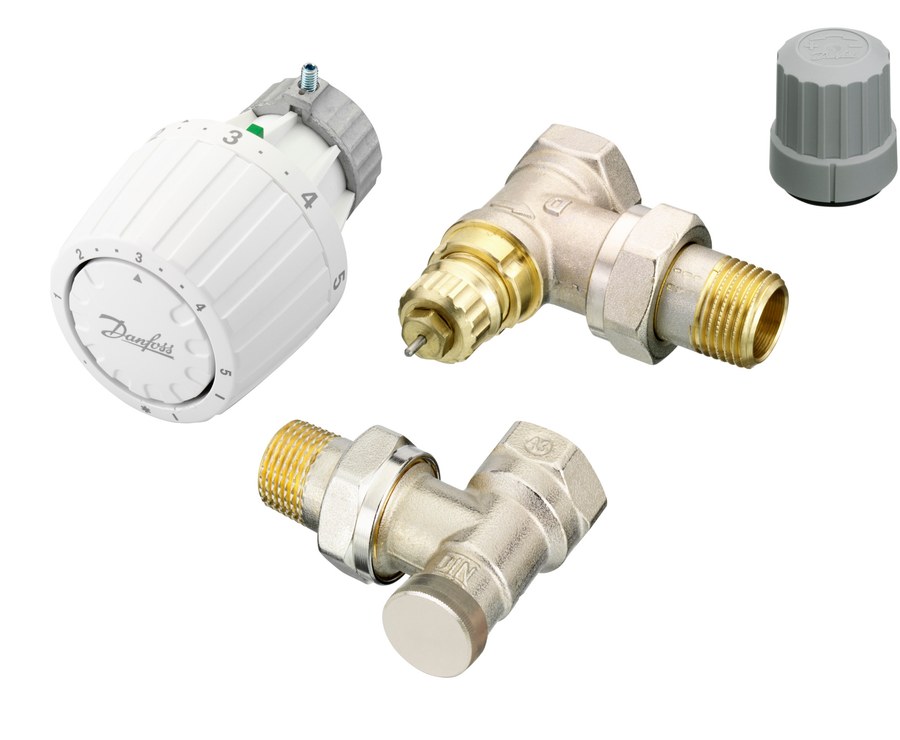

Danfoss GAS + RA-FN + RLV-S radiator valve set (TRV set) — Angle DN 15, 3-Elements, RA 2000 sensor (013G6023)

Danfoss GAS + RA-FN + RLV-S thermostatic radiator valve set (TRV set), OEM order code 013G6023 — a matched 3-elements package for a single radiator: RA-FN valve, matching RLV-S lockshield, 15 mm fittings, RA 2910 sensor. Angle pattern, valve size DN 15. The RA 2000 sensor is gas-charged and self-acting (setting range 5–26 °C, no power or wiring); the RLV-S return/lockshield valve allows the radiator to be balanced and isolated for service. Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G6023). OEM P/N 013G6023, EAN 5702420085647. HS 8481.80.

Code number

013G6023

Brand

Danfoss

Type

GAS + RA-FN + RLV-S

Product group

TRV set

Set contents

3-elements — RA-FN valve, matching RLV-S lockshield, 15 mm fittings, RA 2910 sensor

Design

Angle

Valve size

DN 15

Valve type

RA-FN

Lockshield / return valve type

RLV-S

Sensor-to-valve connection

RA

Sensor design

RA 2000 (gas-charged, self-acting)

Sensor temperature setting range

5 °C to 26 °C

Tailpiece

Standard

Colour

White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.718 kg

EAN

5702420085647

HS code

8481.80 (taps, cocks, valves)

CE mark

No

China RoHS compliance

Out of scope

Connection type to valve

RA

Contents of set

3-elements

Description

RA-FN valve, matching RLV-S lockshield, 15 mm fittings, RA 2910 sensor

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Packaging type

Box

RLV type

RLV-S

Sensor media

Gas

Sensor setting temperature [°C] [Max]

26 °C

Sensor setting temperature [°C] [Min]

5 °C

Sensor type

Built-in sensor

Tailpiece size [mm]

Standard

Tailpiece type

Standard

UL mark

No

Material

Nickel-plated brass valve body; gas-charged polymer thermostatic sensor

Temperature Range

sensor setting 5 °C to 26 °C

HS Code

8481.80
