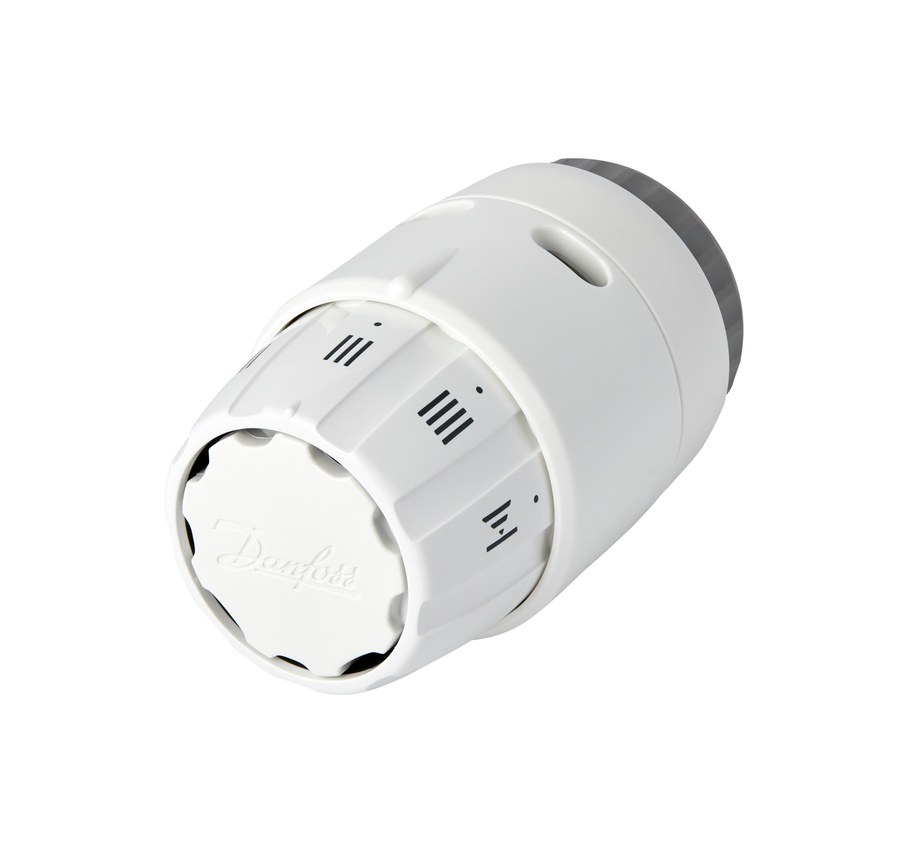

Danfoss RAS-C2 thermostatic radiator sensor — liquid-charged, built-in sensor, 8–28 °C, RA connection

Danfoss RAS-C2 Sensors thermostatic radiator sensor, OEM order code 013G6041 — a self-acting thermostatic operator (sensor head): the liquid-charged sensing element expands and contracts with room temperature and drives the valve cone, throttling flow to hold the set room temperature with no external power. It fits Danfoss RA radiator valves via the RA connection (ra nut fixing) and needs no wiring or batteries. Temperature setting range 8 °C to 28 °C; sensing charge liquid; housing colour White RAL 9016. The head provides built-in frost protection (holds a minimum setting at the snowflake position), a positive shut-off (0) position that fully closes the valve. Genuine Danfoss part; technical data quoted verbatim from store.danfoss.com (code 013G6041). OEM P/N 013G6041, EAN 5702420097237. HS 9032.10 (thermostats).

Code number

013G6041 Brand: Danfoss Type: RAS-C2 Sensors Product group: Radiator Sensors Sensor version: RAS-C2 D-EG Sensor design: RAS-C2 Function: Self-acting thermostatic radiator operator (sensor head) Sensor charge medium: Liquid (self-acting, no power) Sensor type: Built-in sensor Temperature setting range: 8 °C to 28 °C Connection to valve: RA Sensor / adjuster connection: RA nut Frost protection: Yes Temperature limiting & locking: No Shut-off (0 / closed) position: Yes Colour: White RAL 9016 Feature description: Grey socket, positive shut-off feature; special box CE mark: No Net weight: 0.152 kg Gross weight: 0.152 kg EAN: 5702420097237 HS code: 9032.10 (thermostats)

Material

Housing polymer (White RAL 9016); liquid-charged thermostatic sensing element

Temperature Range

setting 8 °C to 28 °C

HS Code

9032.10
