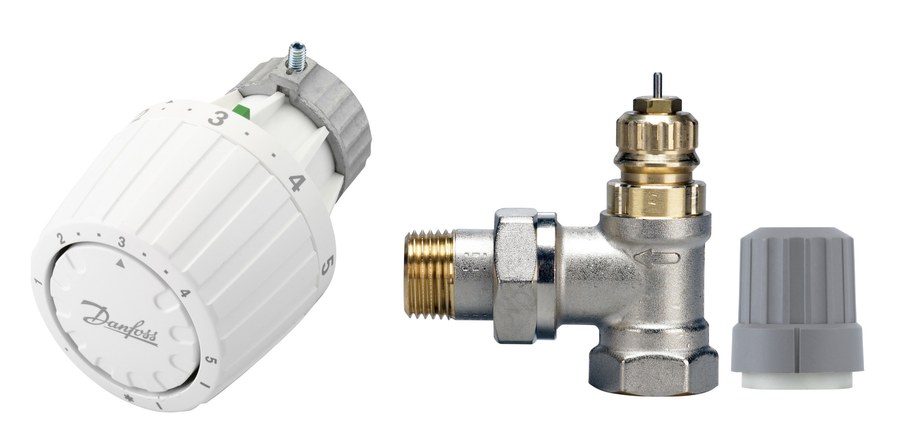

Danfoss GAS + RA-FN radiator valve set (TRV set) — Angle DN 20, 2-Elements, RA 2000 sensor

Danfoss GAS + RA-FN thermostatic radiator valve set (TRV set), OEM order code 013G6022 — a matched 2-elements package for a single radiator: RA-FN valve, RA 2910 sensor. Angle pattern, valve size DN 20. The RA 2000 sensor is gas-charged and self-acting (setting range 8–28 °C, no power or wiring); supplied as a sensor-plus-valve pack (no separate return valve). Genuine Danfoss parts; technical data quoted verbatim from store.danfoss.com (code 013G6022). OEM P/N 013G6022, EAN 5702420085623. HS 8481.80.

Code number

013G6022

Brand

Danfoss

Type

GAS + RA-FN

Product group

TRV set

Set contents

2-elements — RA-FN valve, RA 2910 sensor

Design

Angle

Valve size

DN 20

Valve type

RA-FN

Lockshield / return valve

none (sensor + valve only)

Sensor-to-valve connection

RA

Sensor design

RA 2000 (gas-charged, self-acting)

Tailpiece

Standard

Colour

White RAL 9016

REACH candidate-list substances

Lead (CAS no. 7439-92-1)

Net weight

0.525 kg

EAN

5702420085623

HS code

8481.80 (taps, cocks, valves)

CE mark

No

China RoHS compliance

Out of scope

Connection type to valve

RA

Contents of set

2-elements

Description

RA-FN valve, RA 2910 sensor

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Packaging type

Box

RLV type

no RLV

Sensor media

Gas

Sensor setting temperature [°C]

26 °C

Sensor setting temperature [°C] [Min]

5 °C

Sensor type

Built-in sensor

Tailpiece size [mm]

Standard

Tailpiece type

Standard

UL mark

No

Material

Nickel-plated brass valve body; gas-charged polymer thermostatic sensor

Temperature Range

sensor setting 5 °C to 28 °C

HS Code

8481.80
