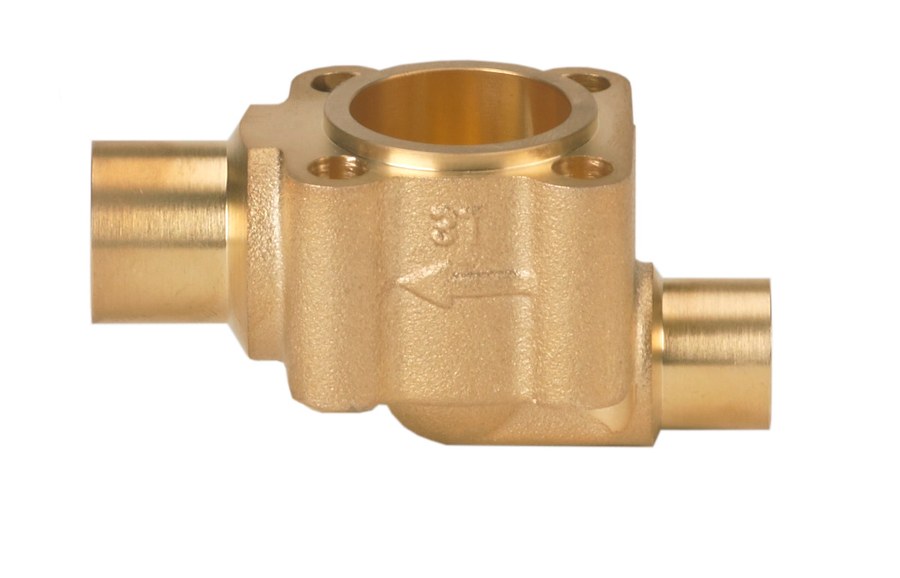

Danfoss valve body for TE 5 thermostatic expansion valve, 22 mm solder ODF × 28 mm solder ODM, straightway, brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable valve body for the TE 5 thermostatic expansion valve. 22 mm solder ODF × 28 mm solder ODM, straightway flow, brass body, single-flow. Supplied with screws and washers; pair with a matching orifice assembly and power element (ordered separately).
Technical Specifications
- Type
- Valve body (thermostatic expansion valve, parts program)
- Used for
- TE 5
- Connections
- 22 mm solder ODF × 28 mm solder ODM
- Flow direction
- straightway
- Body material
- Brass
- Flow type
- Single-flow
- Supplied with
- Screws and washers
- Net weight
- 0.4 kg / Gross: 0.42 kg
- EAN
- 5702428286282
- Code number
- 067B4036
- Product group
- Expansion valves
- Direction
- Straightway
- Connection material
- Brass
- Inlet connection type
- Solder, ODF
- Inlet size
- 22.00 mm
- Outlet connection type
- Solder, ODM
- Outlet size
- 28.00 mm
- Approval
- LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Balanced port [Yes/No]
- No
- Flow direction indicator
- Embossed 1-way arrow
- Parts included
- Screws; Washers
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
