Danfoss power element for TE 12 thermostatic expansion valve, R448A/R449A
Pricing
Request a quote
We reply within 24 hours
Product Description

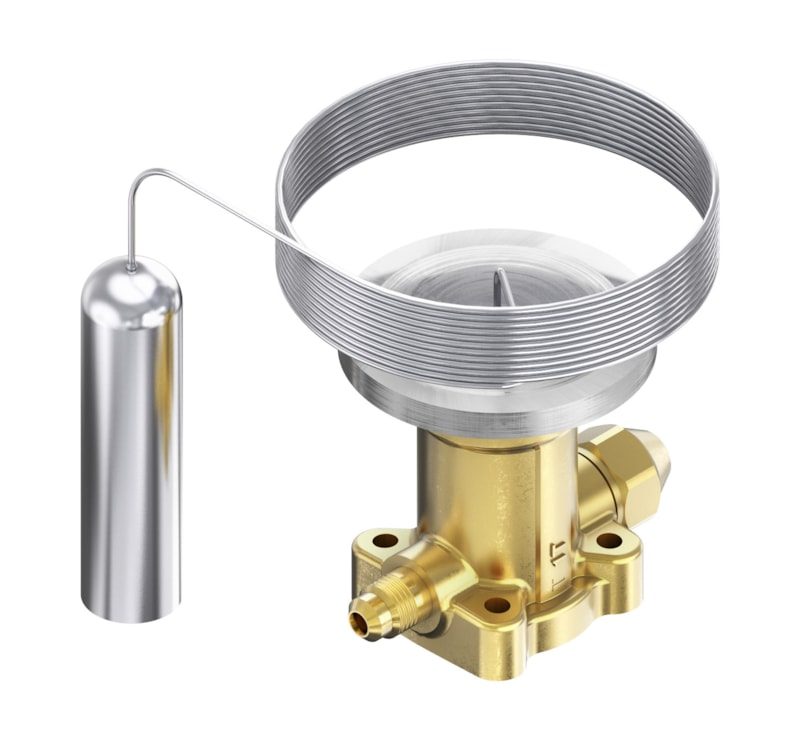

Danfoss exchangeable thermostatic power element for the TE 12 expansion valve, charged for R448A/R449A. Laser-welded stainless steel element, capillary tube and bulb; supplied with bulb strap. Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- TE 12
- Refrigerant
- R448A/R449A
- Element/capillary/bulb
- Laser-welded stainless steel
- Net weight
- 0.495 kg / Gross: 0.634 kg
- EAN
- 5702428998529
- Code number
- 067B2512
- Product group
- Expansion valves
- Type designation
- Element
- Body material
- Brass
- Max. working pressure
- 28.0 bar
- Temperature range
- -40 °C to 10 °C
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube length
- 3000 mm
- Equalization connection type
- Flare
- Equalization size
- 1/4 in
- Pressure equalization
- Externally equalized
- EU RoHS compliance
- Out of scope
- Compatible with
- TE 12 thermostatic expansion valve
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
